3 Alarm Log Settings Dialog Box
13-22 SmartAXIS Touch User’s Manual
■ Real Time
Select this check box to output data to the external memory in real time.
With real time output, data is saved to the external memory in three minute intervals after the Touch starts running.
When there is already data with the same file name on the external memory, data is appended to that file. If there
was no update to the data during the three minutes, it is not output.
Data is appended to the file until the size of the file reaches the restriction size (256 MB), so the maximum amount of
output data varies based on the settings for the output channel such as the amount of data, the data size, and the
labels.
If the interval to update the Alarm Log is shorter than real time output (the interval for writing to the external
memory), that Alarm Log is recorded up to the 1,023rd item, and then afterwards, old data is discarded in order and
replaced with new data.
*1 Advanced mode only

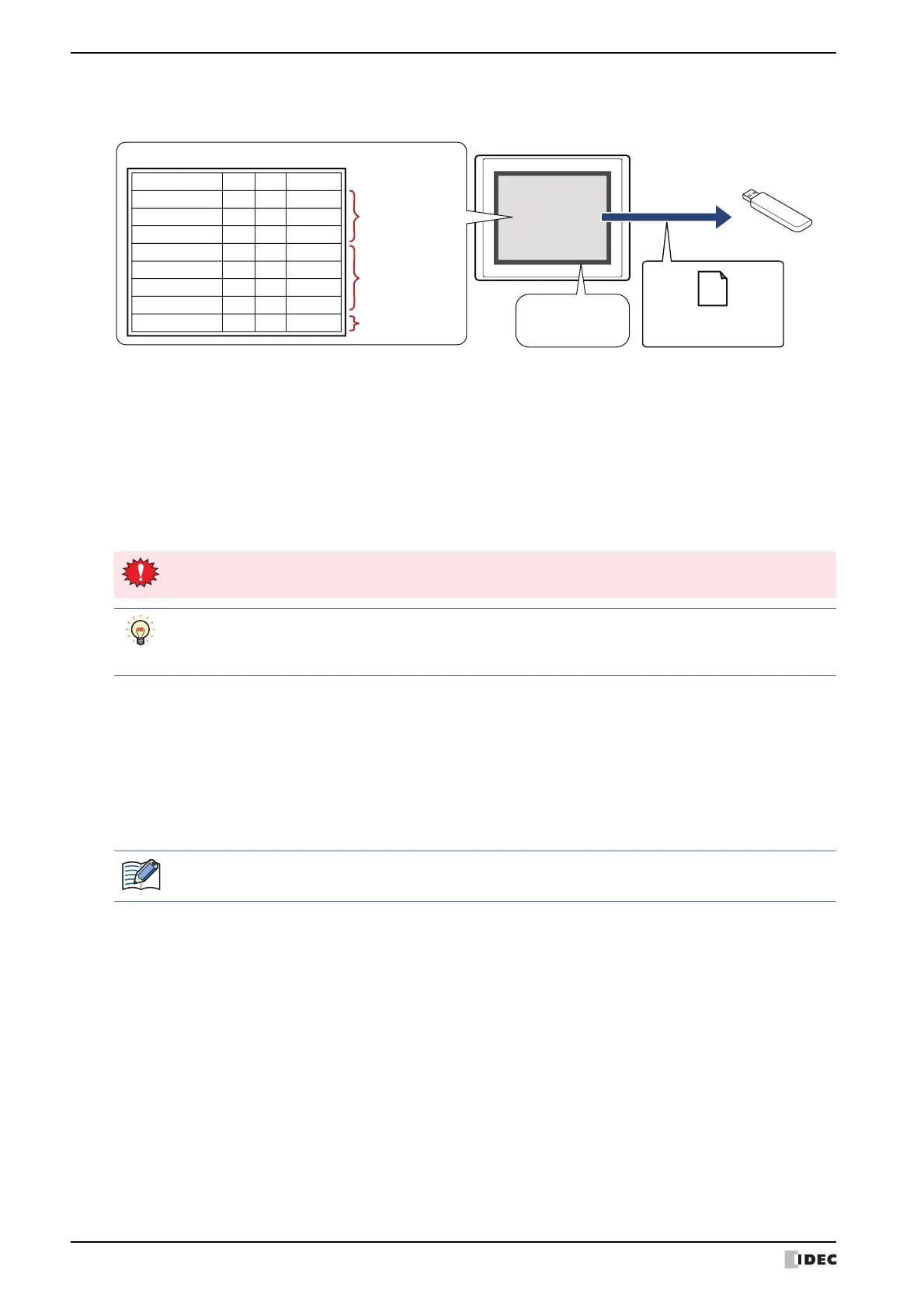

Tou ch
Alarm Log data (CSV)
Output to
USB flash drive
Alarm Log data
Time State Ch.No. Message
12/01/2011 12:00:05
Occurred 1-1 Voltage drop
12/01/2011 12:01:09 Occurred 1-2 Temperature abnormal
12/01/2011 12:01:10 Recovered 1-1 Voltage drop
12/01/2011 12:03:30 Confirmed 1-1 Voltage drop
12/01/2011 12:03:09 Occurred 1-3 Overcurrent
12/01/2011 12:04:33 Recovered 1-2 Voltage drop
12/01/2011 12:05:15 Confirmed 1-2 Voltage drop
12/01/2011 12:08:41 Recovered 1-3 Overcurrent
Data to be output
3 minutes after
operation starts
Data to be output
3 minutes after that
Data to be output after
another 3 minutes
3 minute interval
after operation starts
USB flash drive
Real time output stops when the file size of the Alarm Log data exceeds 256 MB or when there is insufficient
space on the external memory. USB flash drive error information is stored in HMI Special Data Register LSD33.
• When the value of HMI Special Relay LSM18 changes from 0 to 1, the data at that time is first output in
real time to the USB flash drive, and then access to the USB flash drive is stopped.
• You can check the free space on the USB flash drive with HMI Special Data Register LSD34 to 35.
Trigger condition: Select the check boxes for the items that will trigger the output of Alarm Log data to the external
memory.
Occurrence: Alarm Log data is output to the external memory when an alarm has occurred.
Recovery: Alarm Log data is output to the external memory when the alarm is recovered
from.
Confirmation: Alarm Log data is output to the external memory when the key button CHECK was
pressed.
Month/day/year hour:minute:second is output for the trigger condition occurrence time, recovery time, and
confirmation time.
File Name: Enter the file name for the output data or shows the file name.
The default is “ALMHTA.CSV”. To change the file name, enter a new file name. The maximum
number is 120 characters (including the extension).
Add Device data to File Name
*1
:
Select this check box to add the bottom three digits of the
value of device configured by File Name Device to the end of
the file name for the output data.
Example: When the value of device configured by File Name
Device is 123, the file name is “ALMHTA123.CSV”.
File Name Device: Specifies the word device that is the source for the value to add
to the file name. For the device address configuration
procedure, refer to Chapter 2 “5.1 Device Address Settings” on
page 2-62. This option can only be configured when the Add
Device data to File Name check box is selected.
