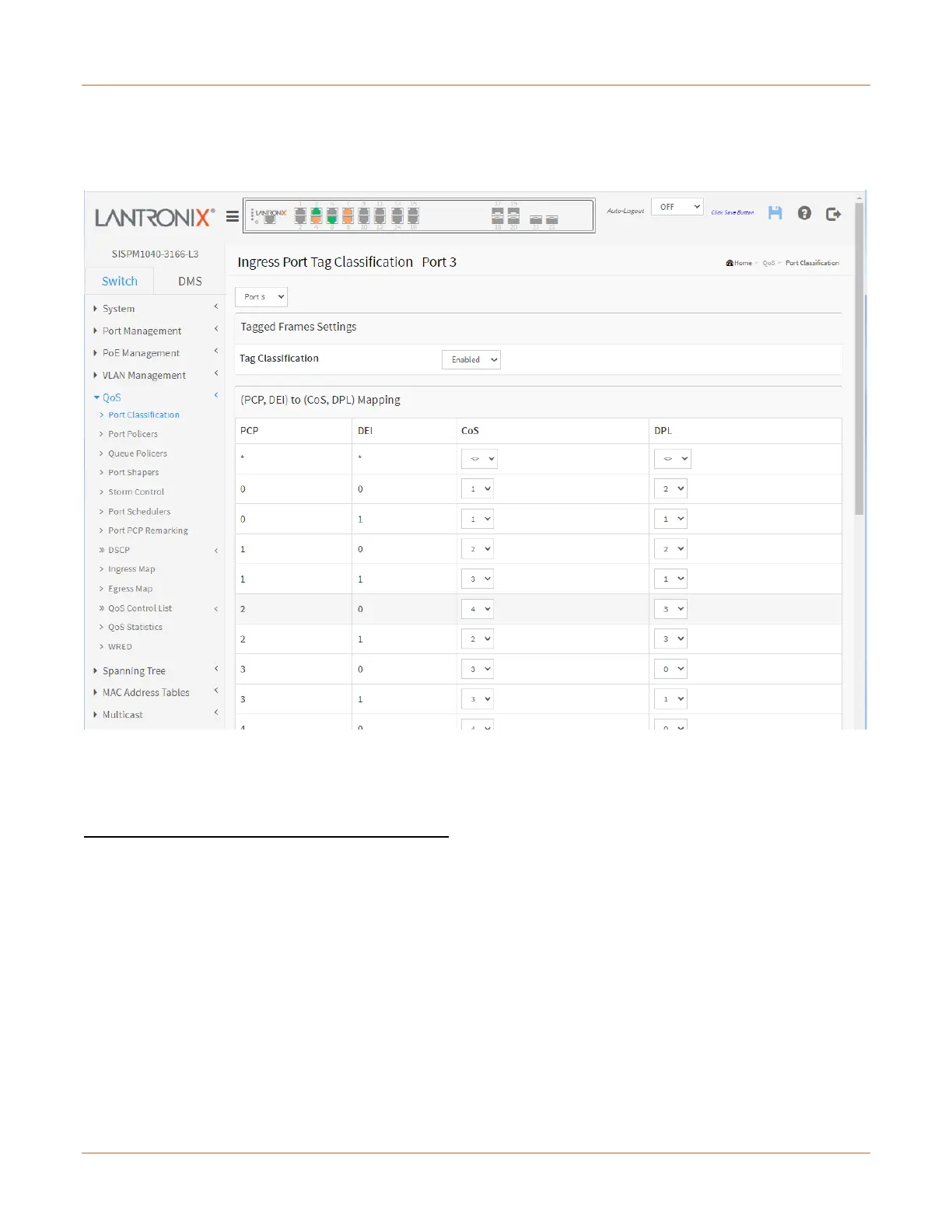

Ingress Port Tag Classification
Click on the linked text in the Tag Class. column to configure the mode and/or mapping. The classification mode
for tagged frames are configured on this page.
Tag Classification: Controls the classification mode for tagged frames on this port.
Disabled: Use default CoS and DPL for tagged frames.
Enabled: Use mapped versions of PCP and DEI for tagged frames.
(PCP, DEI) to (Queue Priority, DPL level) Mapping: Controls the mapping of the classified (PCP, DEI) to
(Queue Priority, DPL level) values when Tag Classification is set to Enabled.
Buttons
Apply: Click to save changes.
Reset: Click to undo any changes made locally and revert to previously saved values.
Cancel: Click to undo any changes made locally and return to the previous page.
