OSPF > Status > NSSA External

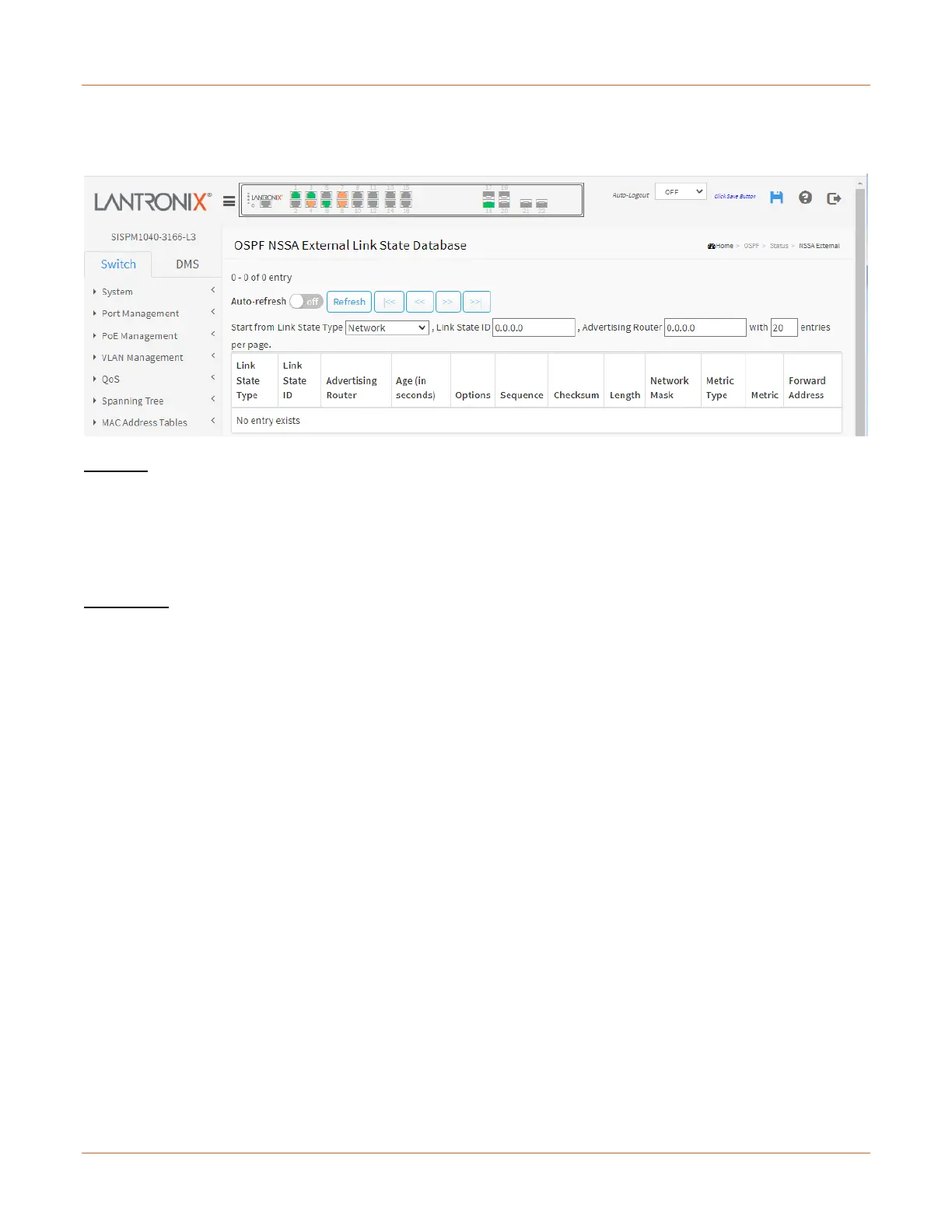

This page displays the OSPF LSA NSSA External link state database information table.
Controls: Click the Refresh button to take effect.
Start from Link State Type: At the dropdown select Router, Network, Summary, ASBR Summary, External, or
NSSA External.
Link State ID: Enter the link state ID in the format 0.0.0.0.
Advertising Router: The advertising router ID which originated the LSA.
Parameters:
Link State Type: The type of the link state advertisement.
Link State ID: The OSPF link state ID. It identifies the piece of the routing domain that is being described by the
LSA.
Advertising Router: The advertising router ID which originated the LSA.
Age: The time in seconds since the LSA was originated.
Options: The OSPF option field, present in OSPF hello packets, which enables OSPF routers to support (or not
support) optional capabilities, and to communicate their capability level to other OSPF routers.
Sequence: The LS sequence number of the LSA.
Checksum: The checksum of the LSA contents.
Length: The Length in bytes of the LSA.
Network Mask: Network mask length. The field is significant only when the link state type is 'External/NSSA
External Link State' (Type 5, 7).
Metric Type: The External type of the LSA. The field is significant only when the link state type is 'External/NSSA
External Link State' (Type 5, 7).
Metric: User specified metric for this summary route. The field is significant only when the link state type is
'External/NSSA External Link State' (Type 5, 7).
Forward Address: The IP address of forward address. The field is significant only when the link state type is
'External/NSSA External Link State' (Type 5, 7).
