Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 401

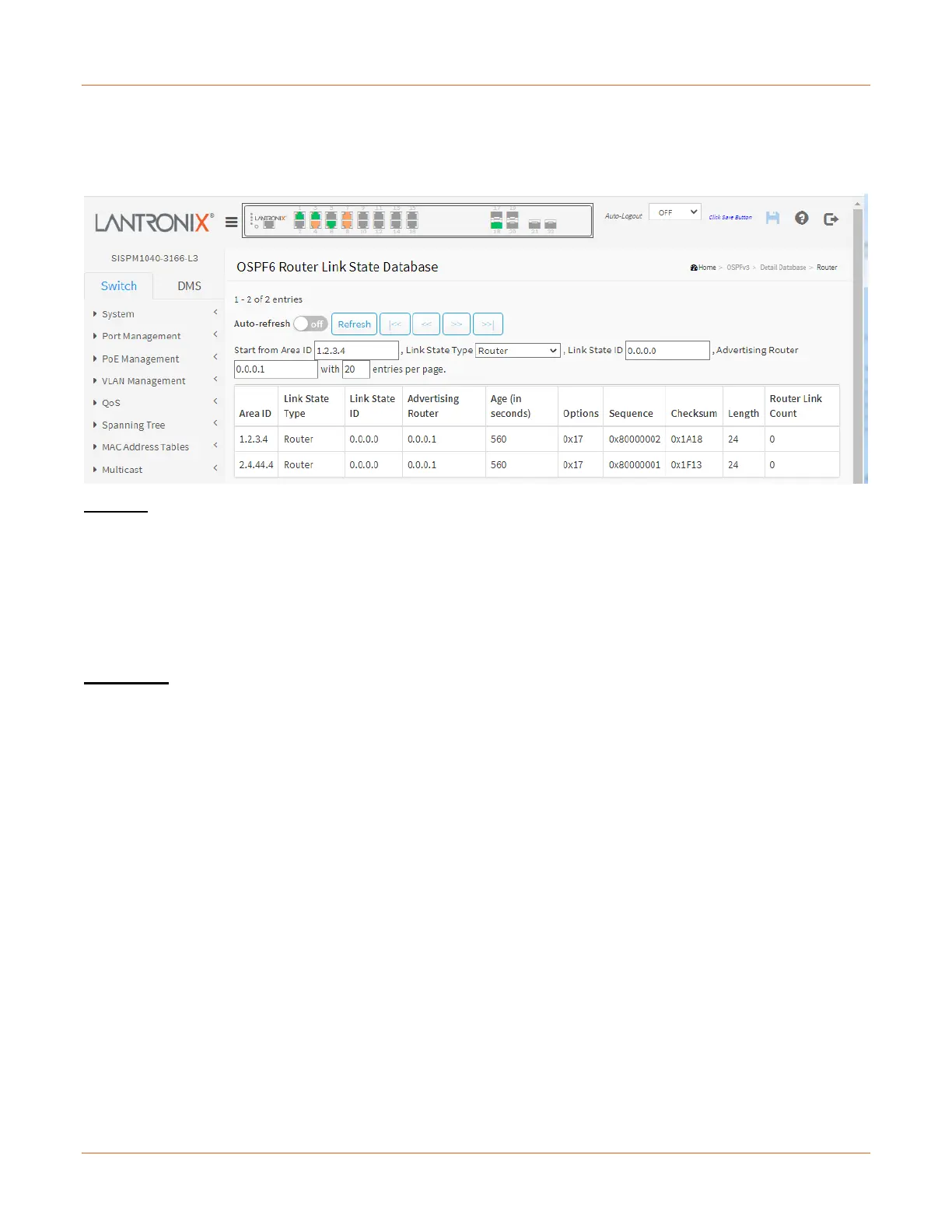

OSPFv3 > Detail Database > Router
This page displays the OSPF6 LSA Router link state database information table. Set the Start from Area ID, Link
State Type, Link State ID, Advertising Router, and entries per page controls.
Controls:
Start from Area ID: Enter the Area ID in the format 0.0.0.0.
Link State Type: At the dropdown select Router, Network, Summary, ASBR Summary, External, or NSSA
External.
Link State ID: Enter the Link State ID in the format 0.0.0.0.
Advertising Router: Enter the Advertising Router IP in the format 0.0.0.0.
Parameters:
Area ID: The OSPF6 area ID of the link state advertisement
Link State Type: The type of the link state advertisement.
Link State ID: The OSPF6 link state ID. It identifies the piece of the routing domain being described by the LSA.
Advertising Router: The advertising router ID which originated the LSA.
Age: The time in seconds since the LSA was originated.
Options: The OSPF6 option field, present in OSPF6 hello packets, which enables OSPF6 routers to support (or
not support) optional capabilities, and to communicate their capability level to other OSPF6 routers.
Sequence: The LS sequence number of the LSA.
Checksum: The checksum of the LSA contents.
Length: The Length in bytes of the LSA.
Router Link Count: The link count of the LSA. This field is significant only when the link state type is 'Router Link
State' (Type 1).
Buttons
Auto-refresh : Check this box to refresh the page automatically every 3 seconds.
Refresh: Click to refresh the page immediately.
