Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 58

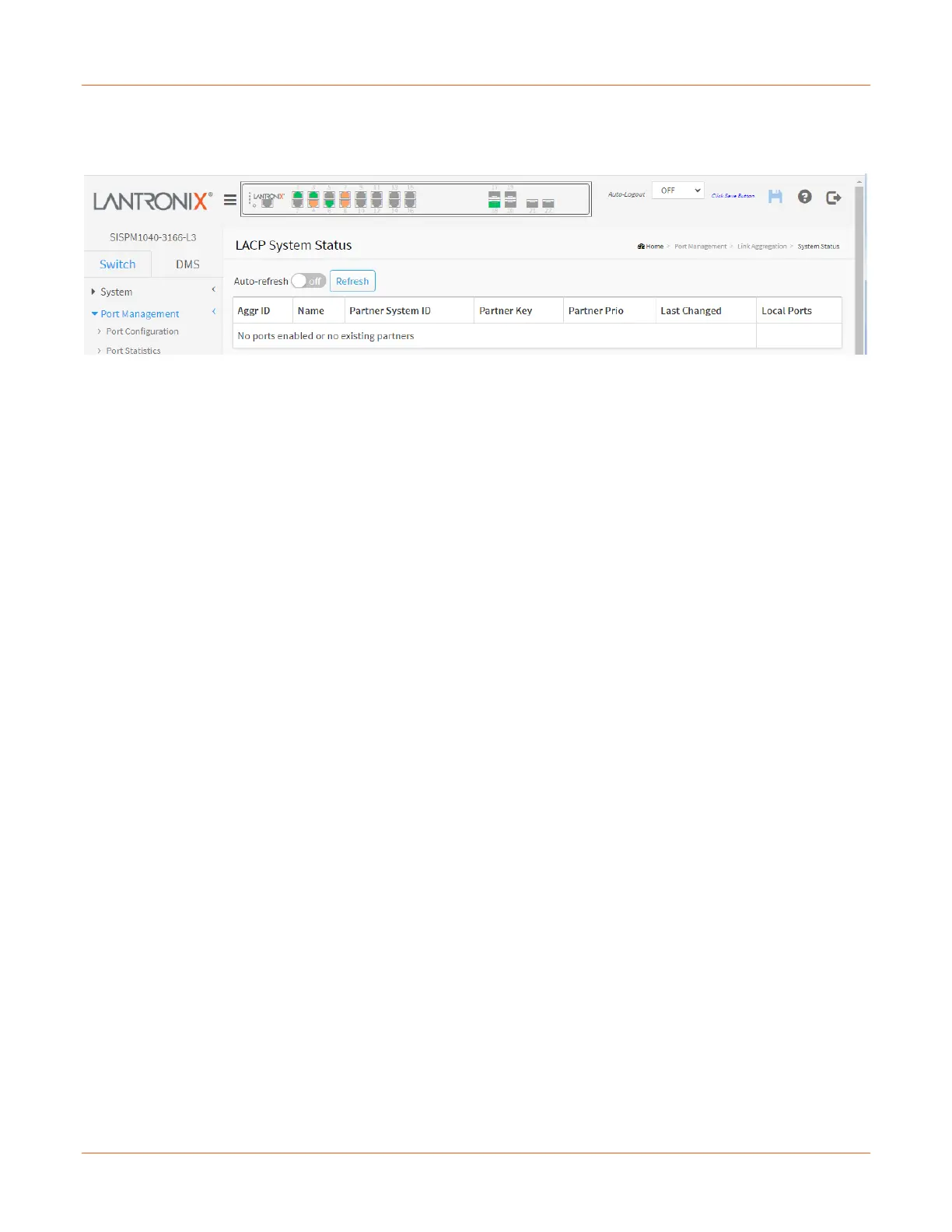

Port Management > Link Aggregation > System Status
This page provides a status overview for all LACP instances.
Aggr ID: The Aggregation ID associated with this aggregation instance.
Name: Name of the Aggregation group ID.
Partner System ID: The system ID (MAC address) of the aggregation partner.
Partner Key: The Key that the partner has assigned to this aggregation ID.
Partner Prio: The priority that the partner has assigned to this aggregation ID.
Last changed: The time since this aggregation changed.
Local Ports: Shows which ports are a part of this aggregation for this switch.
Buttons
Auto-refresh: Automatic refresh occurs every 3 seconds.
Refresh: Click to refresh the page immediately.
Messages:
No ports enabled or no existing partners
Group 1 member counts error!! Local aggregation must include 2-16 ports
Aggregation Error (set group config) LACP aggregation is enabled
