Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 415

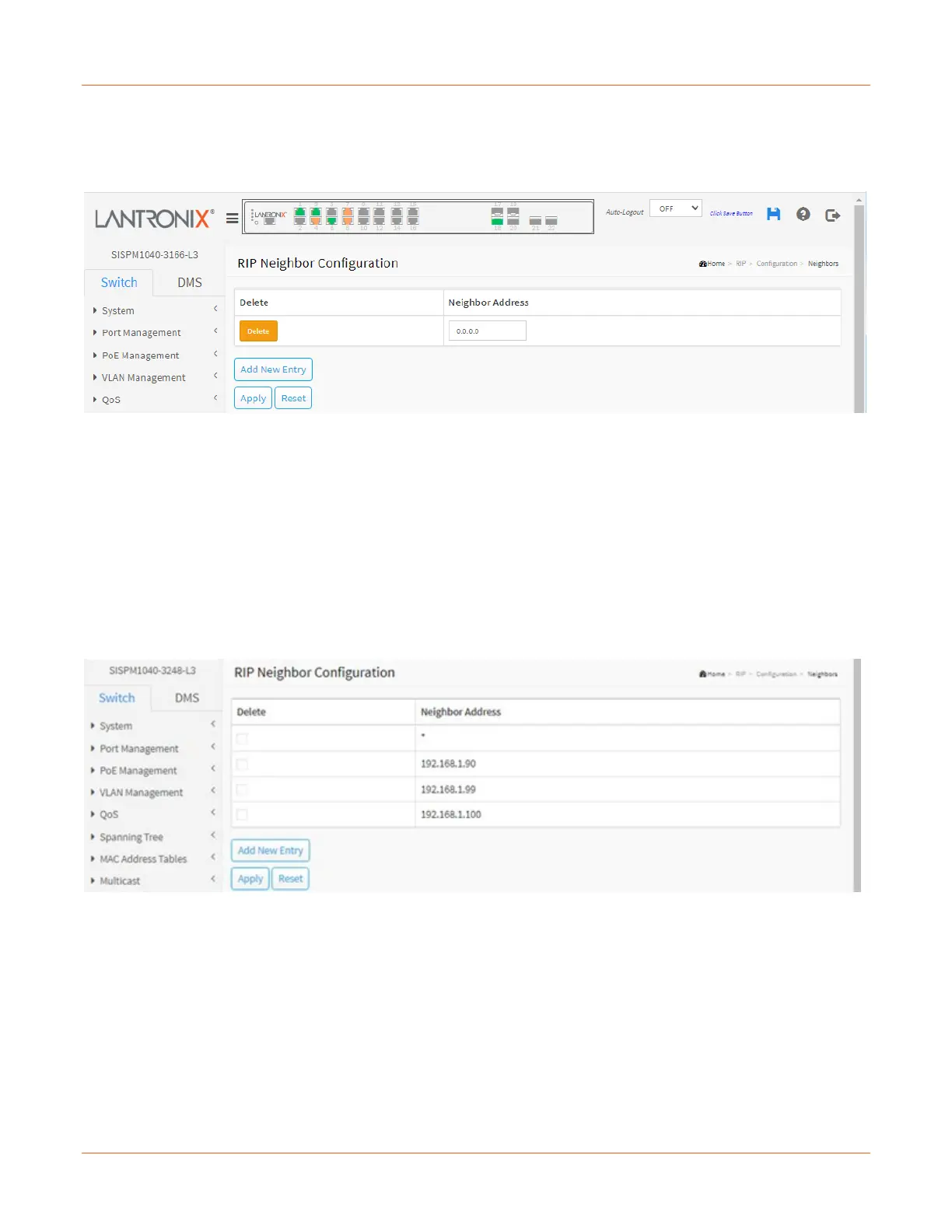

RIP > Configuration > Neighbor Configuration
This page displays the RIP neighbor connection table. It is used to configure the RIP router to send RIP updates
to specific neighbors using the unicast, broadcast, or network IP address after update timer expiration.
Delete: Check to delete the entry. It will be deleted during the next save.
Neighbor Address: Ipv4 address encoded as "a.b.c.d", where a-d is a base-10 human readable integer in the
range [0-255]The neighbor address can be a unicast (excluding loopback), broadcast, or network IP address.
Buttons
Add New Entry: Click to add new entry.
Apply: Click to save changes.
Reset: Click to undo any changes made locally and revert to previously saved values.
Example:
To Next Page
