Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 255
Access Control > Access Control List
This page shows the Access Control List (ACL), which is made up of the ACEs defined on this switch. Each row
describes the ACE that is defined. The maximum number of ACEs is 512 per switch.
Click on the lowest plus sign ( ) to add a new ACE to the list. The reserved ACEs used for internal protocol
cannot be edited or deleted, the order sequence cannot be changed, and the priority is highest.

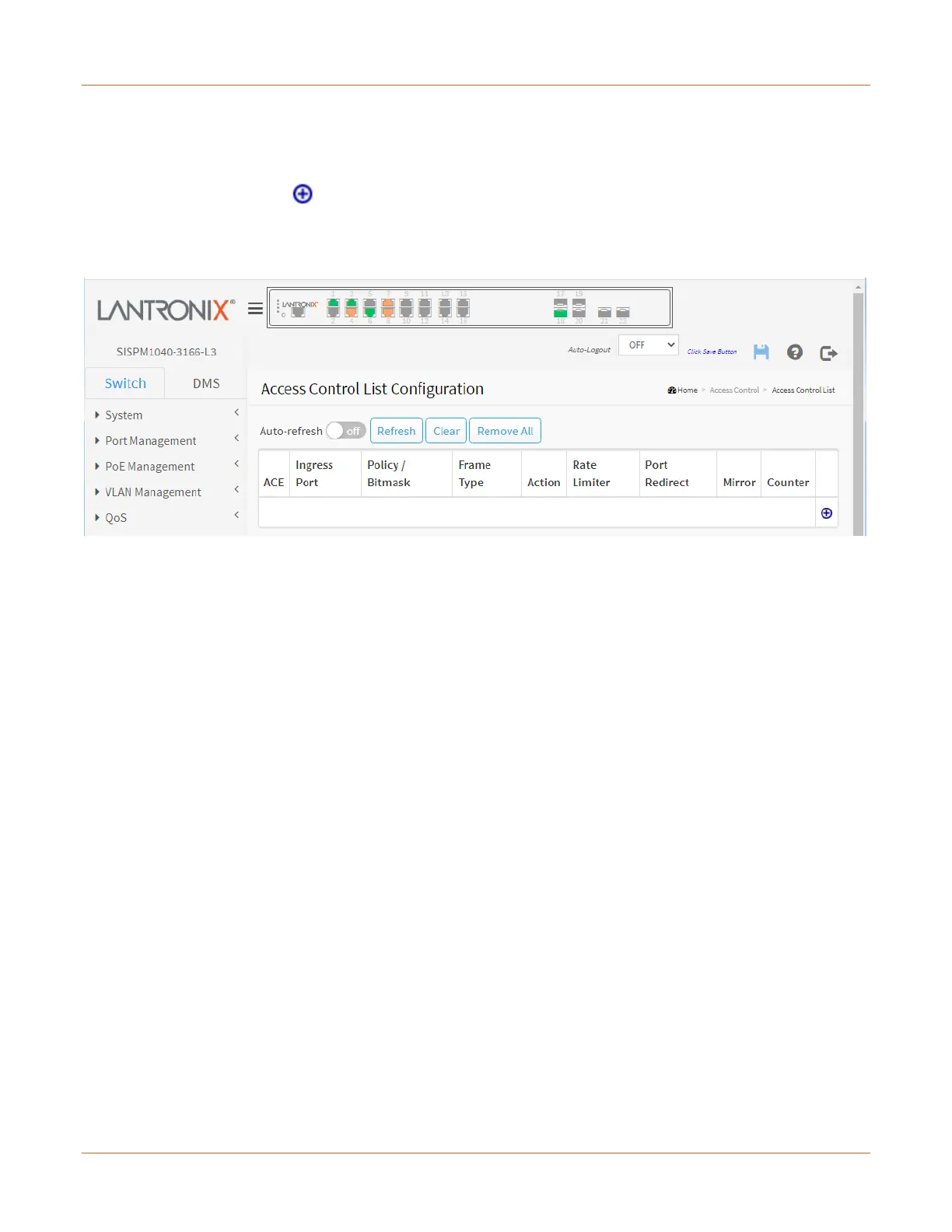

Access Control List Configuration page
ACE: Indicates the ACE ID.
Ingress Port: Indicates the ingress port of the ACE. Possible values are:
All: The ACE will match all ingress port.
Port: The ACE will match a specific ingress port.
Policy / Bitmask: Indicates the policy number and bitmask of the ACE.
Frame Type: Indicates the frame type of the ACE. Possible values are:
Any: The ACE will match any frame type.
EType: The ACE will match Ethernet Type frames. Note that an Ethernet Type based ACE will not get
matched by IP and ARP frames.
ARP: The ACE will match ARP/RARP frames.
IPv4: The ACE will match all IPv4 frames.
IPv4/ICMP: The ACE will match IPv4 frames with ICMP protocol.
IPv4/UDP: The ACE will match IPv4 frames with UDP protocol.
IPv4/TCP: The ACE will match IPv4 frames with TCP protocol.
IPv4/Other: The ACE will match IPv4 frames, which are not ICMP/UDP/TCP.
IPv6: The ACE will match all IPv6 standard frames.
Action: Indicates the forwarding action of the ACE.
Permit: Frames matching the ACE may be forwarded and learned.
Deny: Frames matching the ACE are dropped.
Filter: Frames matching the ACE are filtered.
Rate Limiter: Indicates the rate limiter number of the ACE. The allowed range is 1 to 16. When Disabled is
displayed, the rate limiter operation is disabled.
Port Redirect: Indicates the port redirect operation of the ACE. Frames matching the ACE are redirected to the
port number. The allowed values are Disabled or a specific port number. When Disabled is displayed, the port
redirect operation is disabled.
