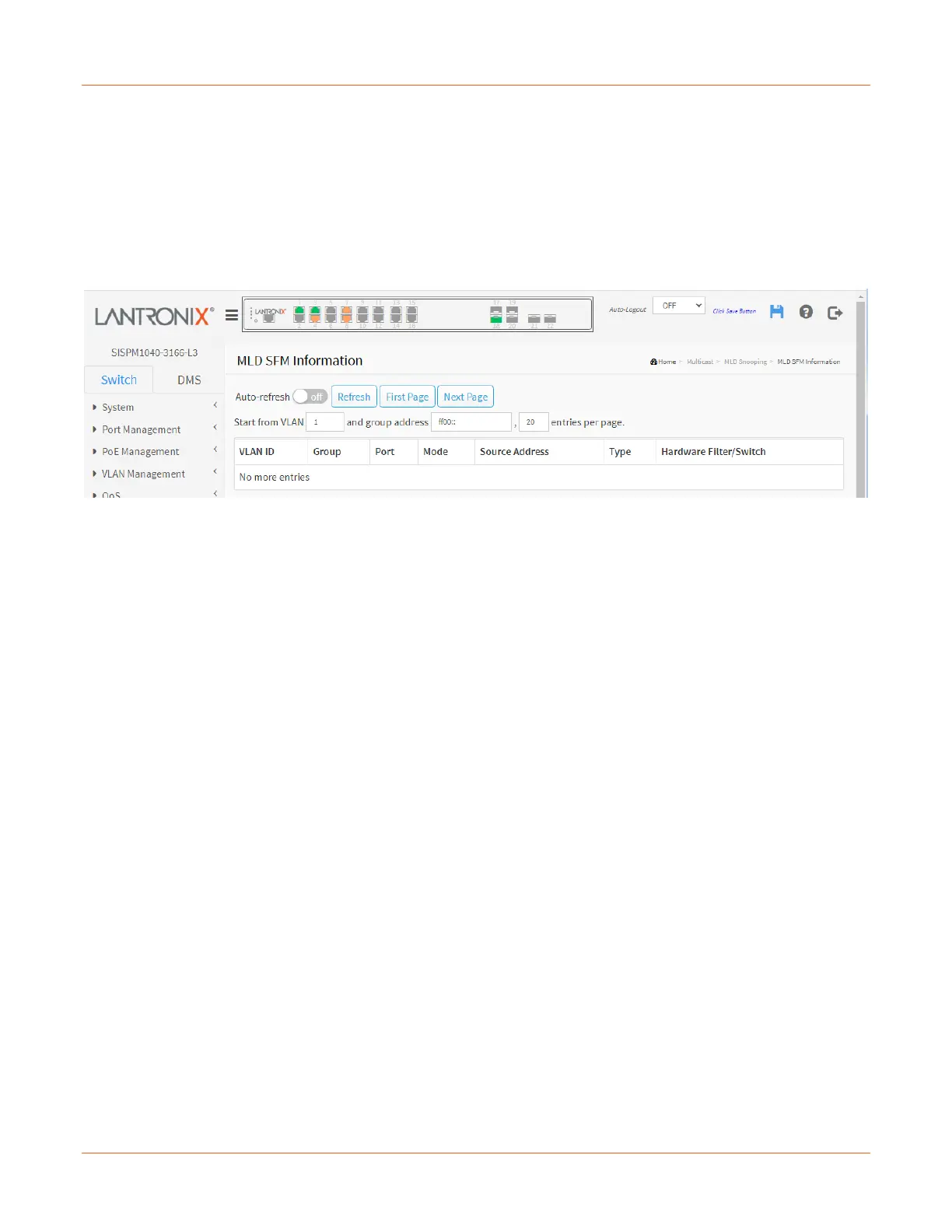

MLD SFM Information
Entries in the MLD SFM Information Table are shown on this page. The MLD SFM (Source-Filtered Multicast)
Information Table also contains the SSM (Source-Specific Multicast) information. This table is sorted first by
VLAN ID, then by Group, and then by Port. Different source addresses belonging to the same group are treated
as a single entry.
When first visited, the web page will show the first 20 entries from the beginning of the MLD SFM Information
table. The "Start from VLAN", and "and group address" input fields let you select the starting point in the MLD
SFM Information table.
VLAN ID: The VLAN ID of the group.
Group: Group address of the group displayed.
Port: Switch port number.
Mode: Indicates the filtering mode maintained per (VLAN ID, port number, Group Address) basis. It can be either
Include or Exclude.
Source Address: IP Address of the source. Currently, the maximum number of IPv6 source address for filtering
(per group) is 8. When there is no source filtering address, the text "None" is shown in the Source Address field.
Type: Indicates the Type. It can be either Allow or Deny.
Hardware Filter/Switch: Indicates whether data plane destined to the specific group address from the source
IPv6 address can or cannot be handled by chip.
Buttons
Auto-refresh : Click to automatically refresh the webpage every 3 seconds.
Refresh: Refreshes the displayed table starting from the input fields.
First Page: Updates the table starting from the first entry in the MLD SFM Information table.
Next Page: Updates the table, starting with the entry after the last entry currently displayed.
