Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 318

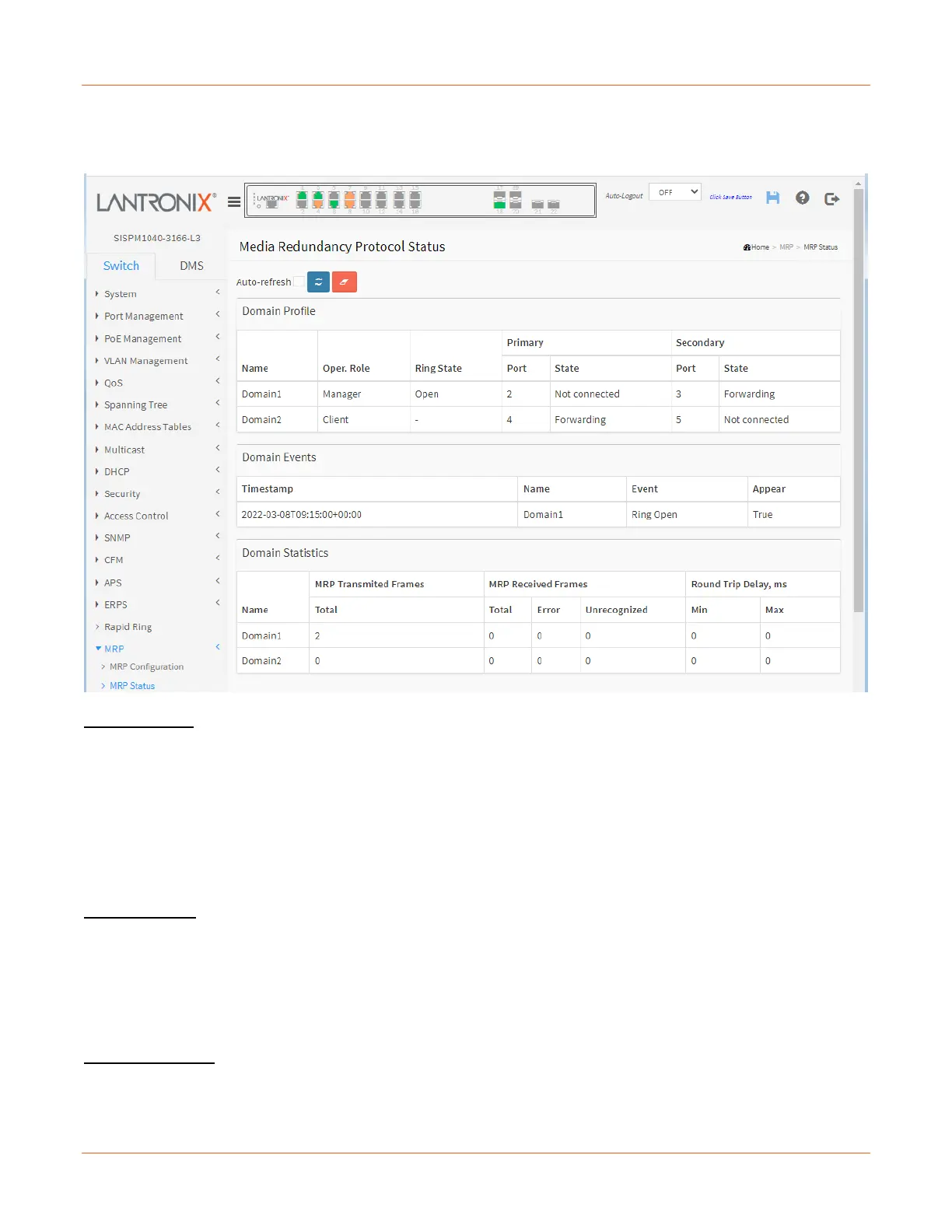

MRP > MRP Status
This page displays Media Redundancy Protocol status.
Domain Profile
Name: A logical name for the MRP domain to easy the management of MRP domains.
Oper. Role: The operational role of an MRP entity per domain (Manager, Client, or Undefined).
Ring State: Ring status of the MRP entity (e.g., Open, Undefined).
Primary: The ifIndex (Interface Index) of the layer 2 interface which is used as ring port 1 (e.g., Not Connected,
Unknown).
Secondary: The ifIndex (Interface Index) of the layer 2 interface which is used as ring port 2 (e.g., Forwarding).
Domain Events
Timestamp: The value of sysUpTime at the time of the logged event, in the format 2020-01-01T00:27:46+00:00.
Name: A logical name for the MRP domain (e.g., Doamin1, Domain2).
Event: Event type (e.g., Ring Open).
Appear: Event appear (true) or disappear (false).
Domain Statistics
Name: The domain name.
MRP Transmitted Frames: The total transmitted frames.
