Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 394
OSPFv3 > Status > Area Status
This page displays the OSPF6 network area status table.
Area ID: The Area ID.
Backbone: Displays ‘Yes’ if it's backbone area or ‘No’ if it is not.
Area Type: The area type (e.g., Normal, Stub, or Totally Stub).
Active Interfaces: Number of active interfaces attached in the area.
SPF Executed Times: Number of times SPF algorithm has been executed for the particular area.
LSA count: Number of the total LSAs for the particular area.
Buttons
Auto-refresh: Check this box to refresh the page automatically every 3 seconds.
Refresh: Click to refresh the page immediately.

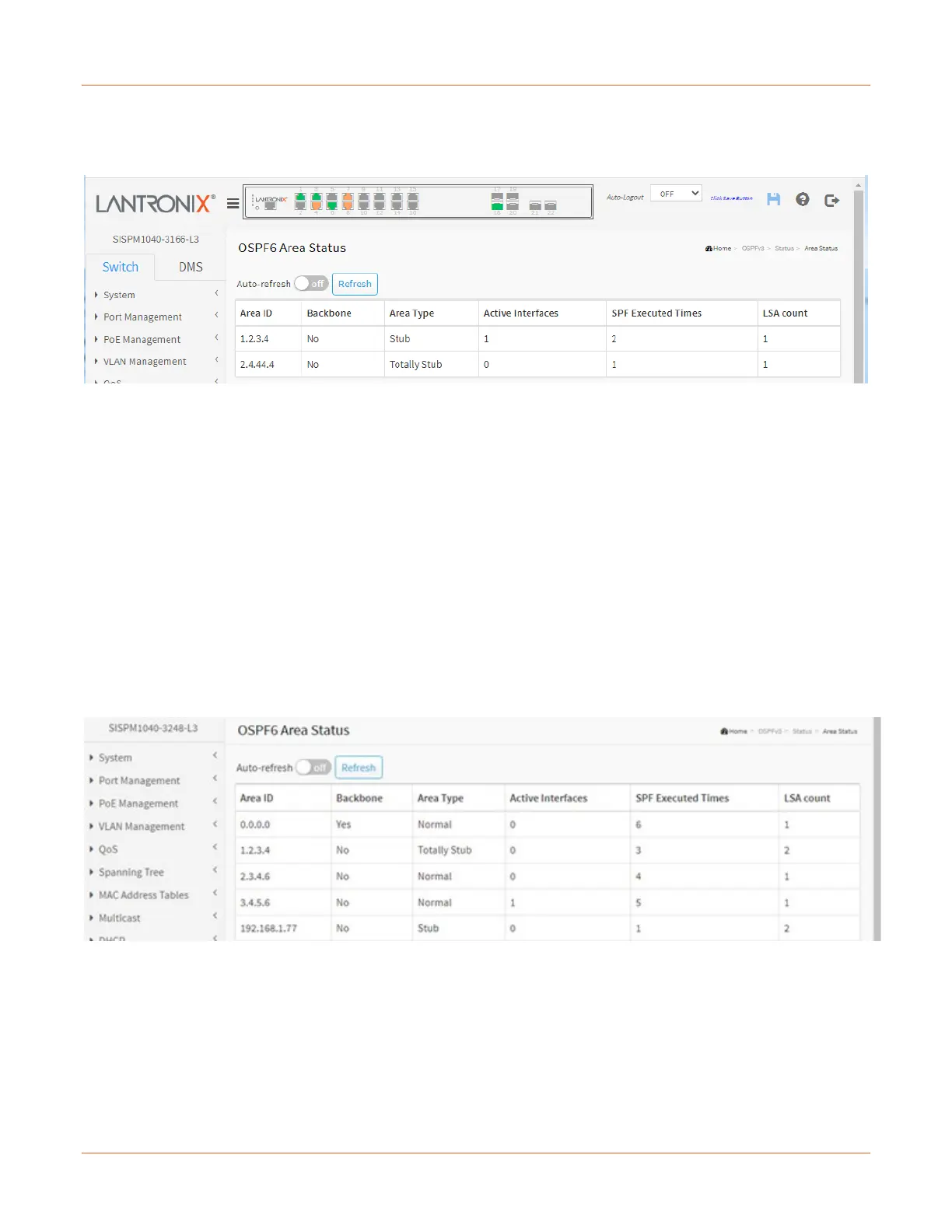

Example:
To Next Page
