APS Status

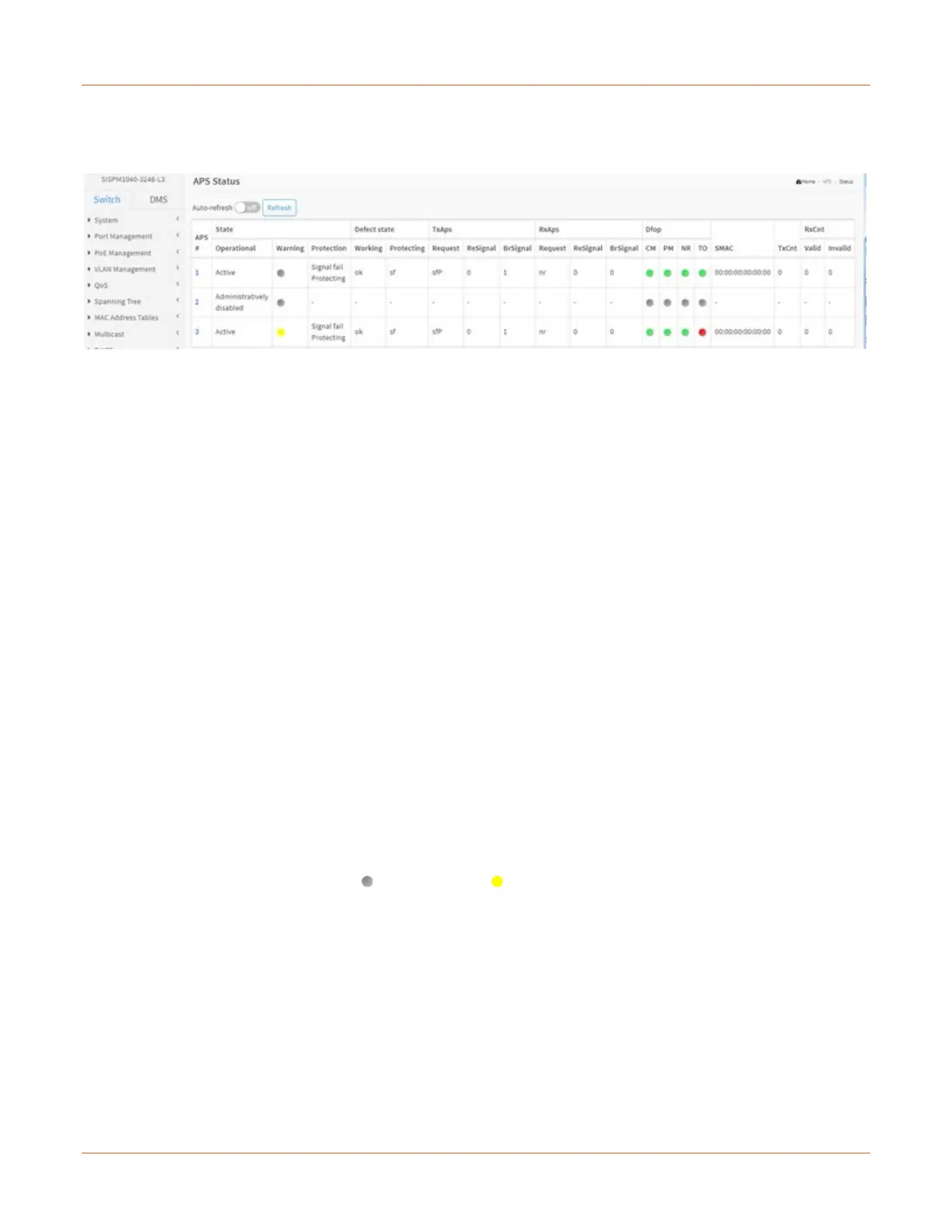

This page shows the current status of APS instances.
APS # : The ID of the APS. Click on the link to display the APS instance page, where you can reset counters and
issue commands.
State, Operational: The operational state of the APS instance. There are many ways to not have the instance
active. Each of them has its own value. Only when the state is Active, will the APS instance be active and up and
running. If the Operational state is not "Active", the remaining fields are invalid. The possible values of this field
are shown below:
Administratively disabled: Instance is inactive, because it is administratively disabled.
Active: The instance is active and up and running.
Internal Error: Instance is inactive, because an internal error has occurred.
Working MEP not Found: Instance is inactive, because the Working MEP is not found.
Protecting MEP not Found: Instance is inactive, because the Protecting MEP is not found.
Working MEP is not administrative active: Instance is inactive, because the Working MEP is not admin
enabled.
Protecting MEP is not administrative active: Instance is inactive, because the Protecting MEP is not
admin enabled.
Working MEP is not a Down MEP: Instance is inactive, because the Working MEP is not a Down-MEP.
Protecting MEP is not a Down MEP: Instance is inactive, because the Protecting MEP is not a Down-
MEP.
Working and Protecting MEP use the same interface: Instance is inactive, because both Working
MEPs and Protecting MEPs use the same interface.
Another instance use the same Working port: Instance is inactive because another instance uses the
same Working port.
State, Warning: If the operational state is Active, the APS instance is indeed active, but it may be that it doesn't
run as the administrator thinks, because of configuration errors, which are reflected in the warnings below.
The Warning information is indicated by
: no warning or : warning. Use the tooltip to get the detailed warning
information.
State, Protection: The possible protection group states. The letters refer to the state described in G.8031 Annex:
No request Working: A.
No request Protecting: B.
Lockout: C.
Forced Switch: D.
Signal fail Working: E.
Signal fail Protecting: F.
Manual switch to Protecting: G.
Manual switch to Working: H.
To Next Page
