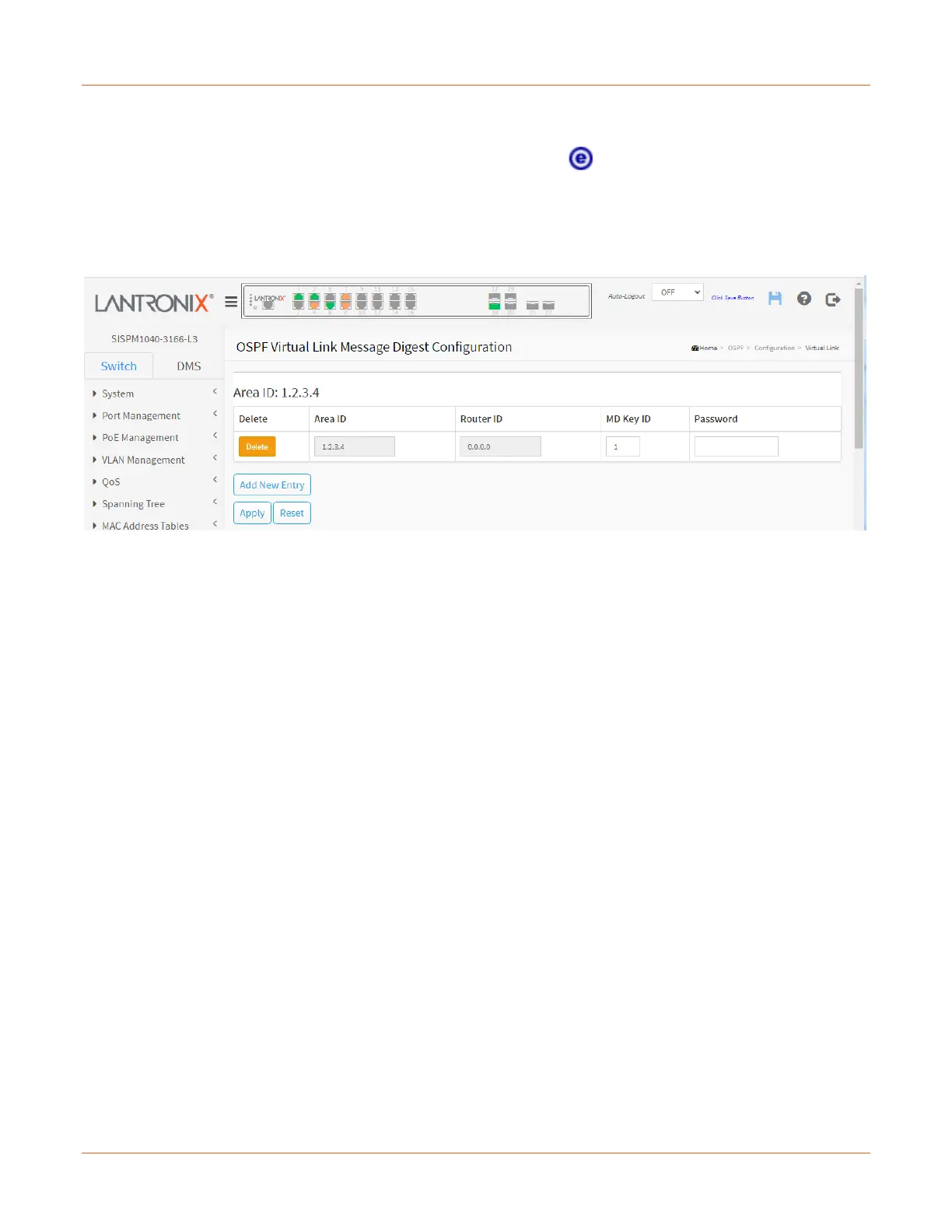

OSPF Virtual Link Message Digest Configuration page
On the OSPF Virtual Link Configuration click the Edit MD Key control ( ). This page lets you set OSPF virtual
link parameters.
The virtual link is established between two ABRs to overcome the fact that all the areas must be connected
directly to the backbone area.
The listed entry sequence order is set by the Message Digest key precedence.
Delete: Check to delete the entry.
Area ID: OSPF Area ID.
Router ID: OSPF router ID.
MD Key ID: The key ID for message digest authentication. The allowed range is 1-255.
Password: The password of message digest key, it is the plain text input field for the new entry. The allowed
input length is 1- 16 plain text characters.
Buttons
Add New Entry: Click to add new entry.
Apply: Click to save changes.
Reset: Click to undo any changes made locally and revert to previously saved values.
Messages:
Backbone area(0.0.0.0) can not be configured as virtual link.
