Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 96

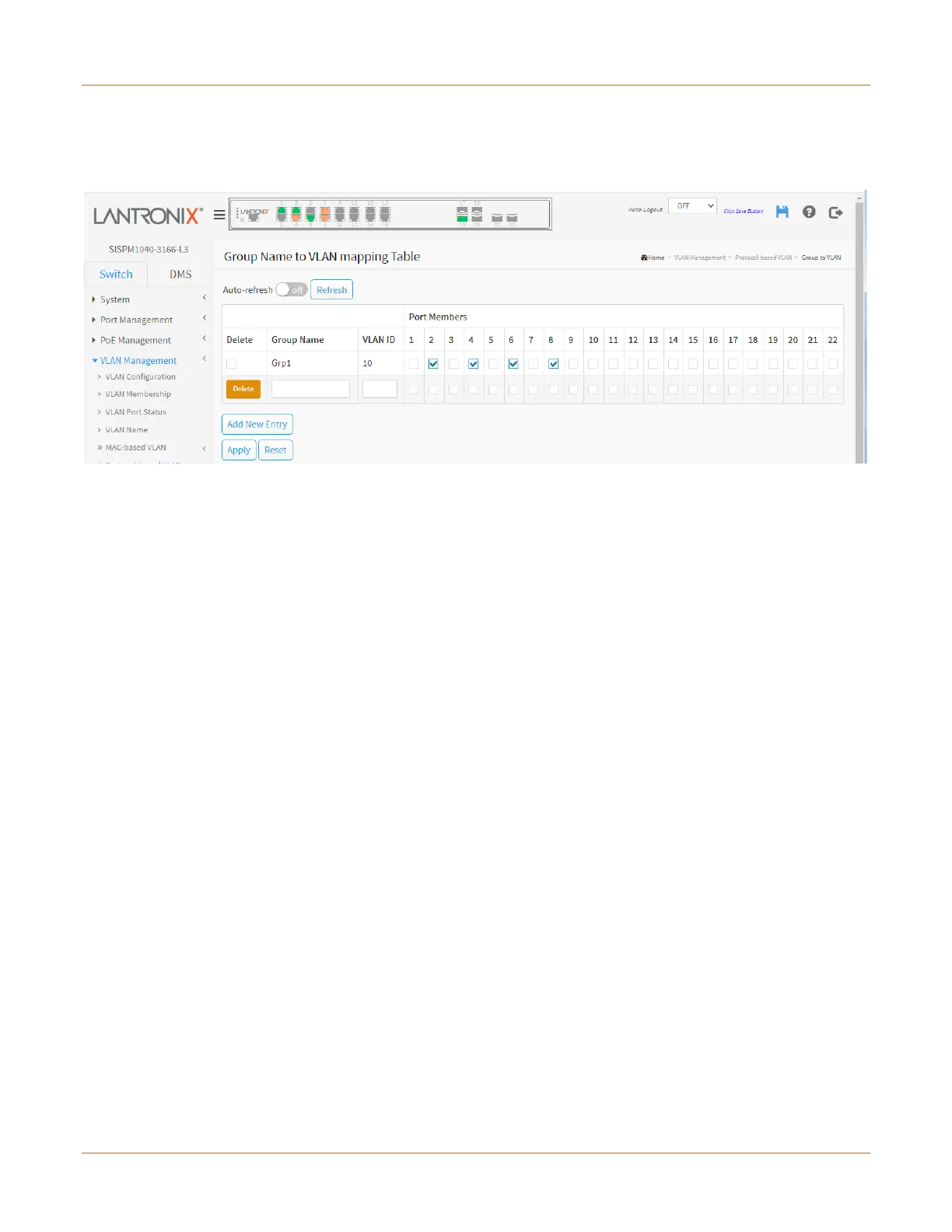

VLAN Management > Protocol-based VLAN > Group to VLAN
This page allows you to map a Group Name (already configured or to be configured in the future) to a VLAN for
the switch. The maximum possible Group to VLAN mappings is 256.
Delete: To delete a Group Name to VLAN mapping, check this box. The entry will be deleted from the switch
during the next Save.
Group Name: A valid Group Name is a string, at the most 16 characters long, which consists of a combination of
alphabets (a-z or A-Z) and integers(0-9) with no special characters allowed. You may either use a Group that
already includes one or more protocols (see Protocol to Group mappings), or create a Group to VLAN ID mapping
that will become active the moment you add one or more protocols inside that Group. Furthermore, the Group to
VLAN ID mapping is not unique, as long as the port lists of these mappings are mutually exclusive (e.g., Group1
can be mapped to VID 1 on port #1 and to VID 2 on port #2).
VLAN ID: Indicates the VLAN ID to which the Group Name will be mapped. Valid values are 1 - 4095.
Port Members: A row of check boxes for each port is displayed for each Group Name to VLAN ID mapping.
To include a port in the mapping, check the box. To remove or exclude the port from the mapping, make sure the
box is unchecked. By default, no ports are members, and all boxes are unchecked.
Buttons
Add New Entry: Click to add a new entry in the mapping table. An empty row is added to the table and the Group
Name, VLAN ID and port members can be configured as needed. Valid values for a VLAN ID are 1 - 4095.
Auto-refresh: Check this box to refresh the page automatically every 3 seconds.
Refresh: Click to refresh the page immediately.
Apply: Click to save changes.
Reset: Click to undo any changes made locally and revert to previously saved values.
