MAC-based VLAN
The MAC-based VLAN feature allows incoming untagged packets to be assigned to a VLAN and thus classify
traffic based on the packet’s source MAC address.

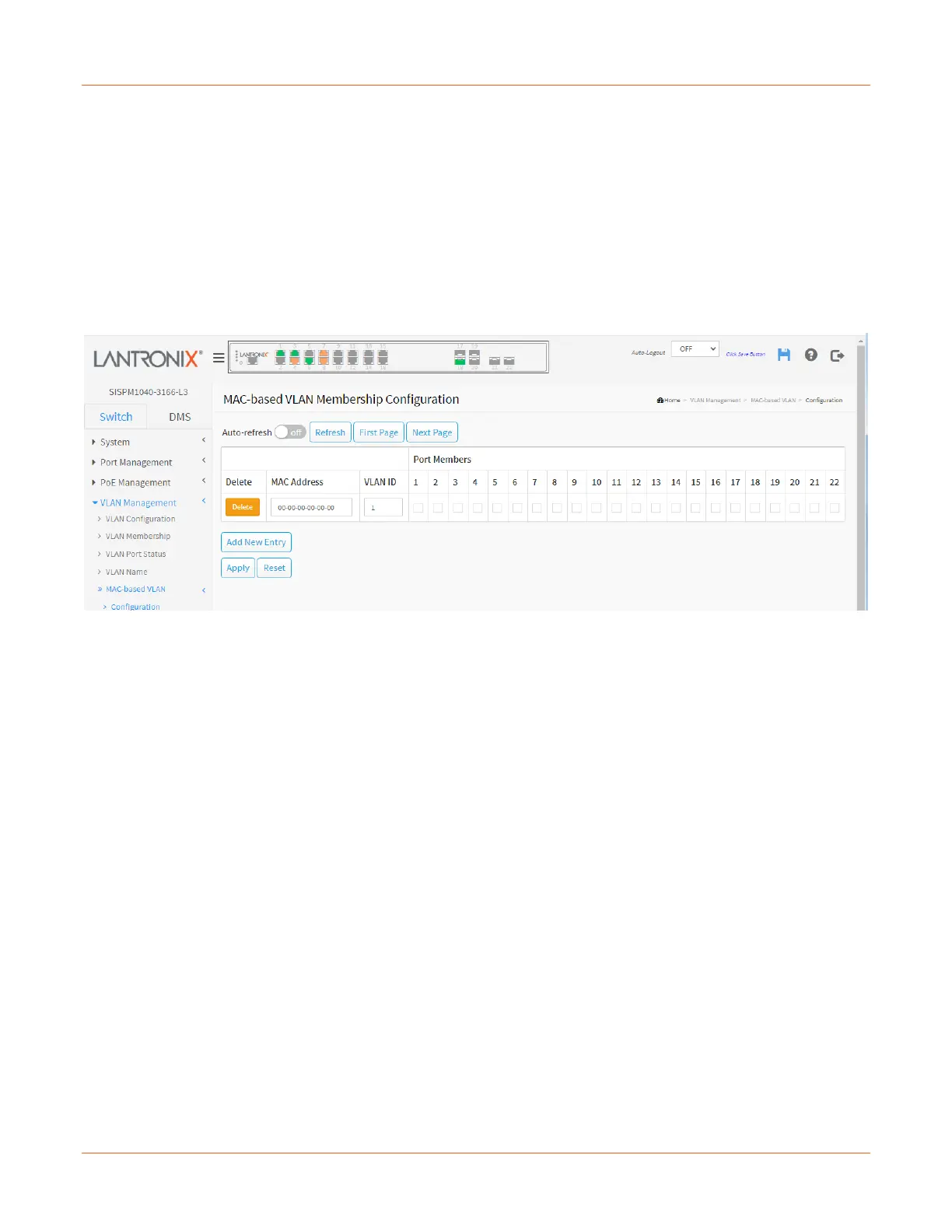

MAC-based VLAN Configuration
The MAC address to VLAN ID mappings can be configured here. This page allows adding and deleting MAC-
based VLAN Classification List entries and assigning the entries to different ports. The maximum possible MAC to
VLAN ID mapping entries is 256.
Delete: To delete a MAC to VLAN ID mapping entry, click this button. The entry will be deleted from the table and
from the system..
MAC Address: Indicates the MAC address of the mapping.
VLAN ID: Indicates the VLAN ID the above MAC will be mapped to.
Port Members: A row of check boxes for each port is displayed for each MAC to VLAN ID mapping entry. To
include a port in the mapping, check the box. To remove or exclude the port from the mapping, make sure the box
is unchecked. By default, no ports are members, and all boxes are unchecked.
Buttons
Auto-refresh: Check this box to refresh the page automatically every 3 seconds.
Refresh: Refreshes the displayed table.
First Page: Updates the table, starting with the entry after the last entry currently displayed.
Next Page: Updates the table starting from the first entry in the Dynamic ARP Inspection Table.
Add New Entry: Click the button to add a new MAC to VLAN ID mapping entry. An empty row is added to the
table, and the mapping can be configured as needed. Any unicast MAC address can be used to configure the
mapping. No broadcast or multicast MAC addresses are allowed. Legal values for a VLAN ID are 1 - 4095.
The MAC to VLAN ID entry is enabled when you click on "Apply". A mapping without any port members will not be
added when you click "Apply". The Delete button can be used to undo the addition of new mappings.
Apply: Click to save changes.
Reset: Click to undo any changes made locally and revert to previously saved values.
