Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 421

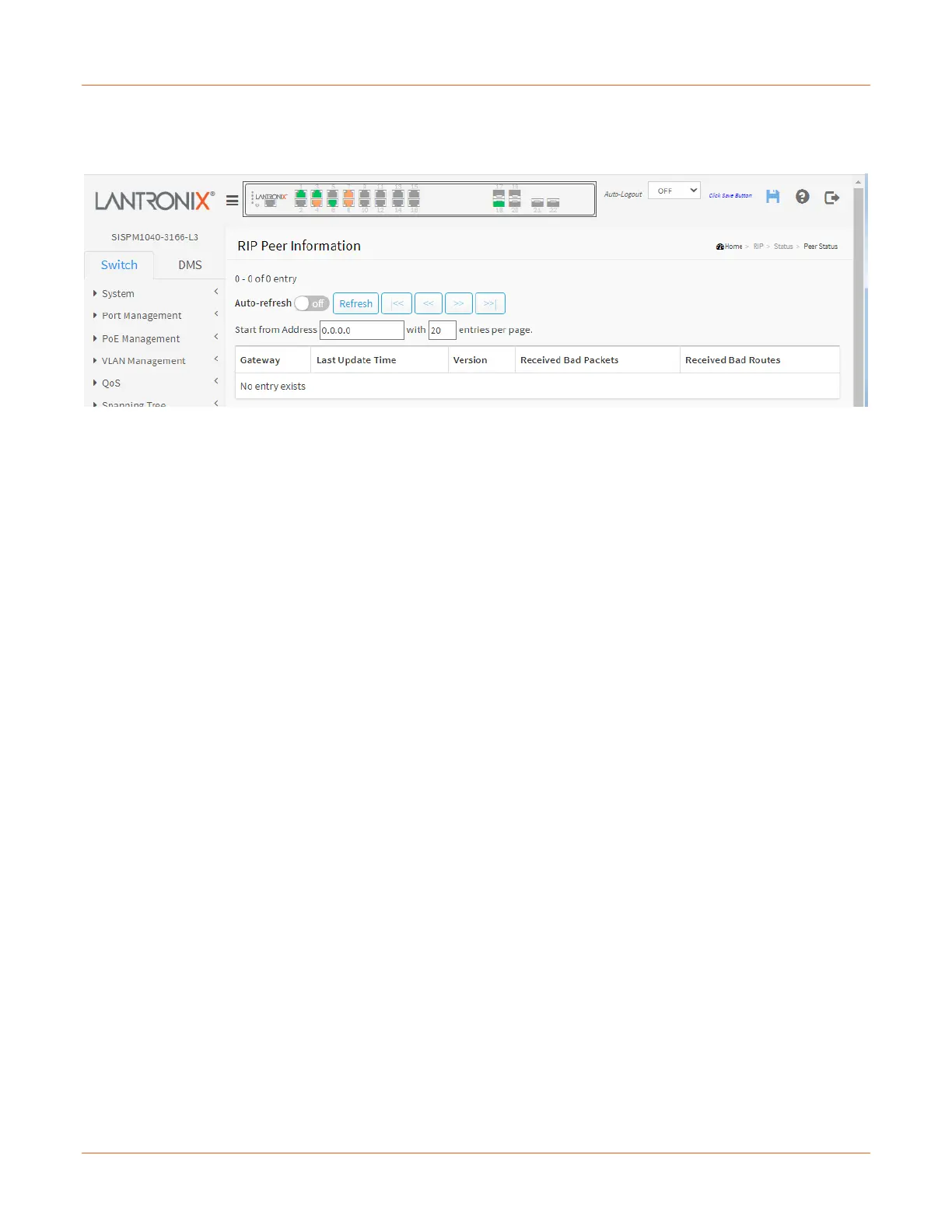

RIP > Status > Peer Status
This page displays the RIP peer table. Set the Start from Address and entries per page controls and hit Refresh.
Gateway: Peer IPv4 address.
Last Update Time: The duration time in seconds from the time the last RIP packet received from the neighbor to
now.
Version: The RIP version number in the header of the last RIP packet received from the neighbor.
Received Bad Packets: The number of RIP response packets from the neighbor that were discarded as invalid.
Received Bad Routes: The number of routes from the neighbor that were ignored because they were invalid.
Buttons
Auto-refresh: Check this box to refresh the page automatically every 3 seconds.
Refresh: Click to refresh the page immediately.
|<< : Updates the table entries, starting from the first available entry. If the first entry of the table is displayed, the
button is disabled.
<< : Updates the table entries, ending at the entry prior to the first entry currently displayed. If the first entry of the
table is displayed, the button is disabled.
>> : Updates the table entries, starting from the entry next to the last entry currently displayed. If the last entry of
the table is displayed, the button is disabled.
>> | : Updates the table entries, ending at the last available entry. If the last entry of the table is displayed, the
button is disabled.
