Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 215

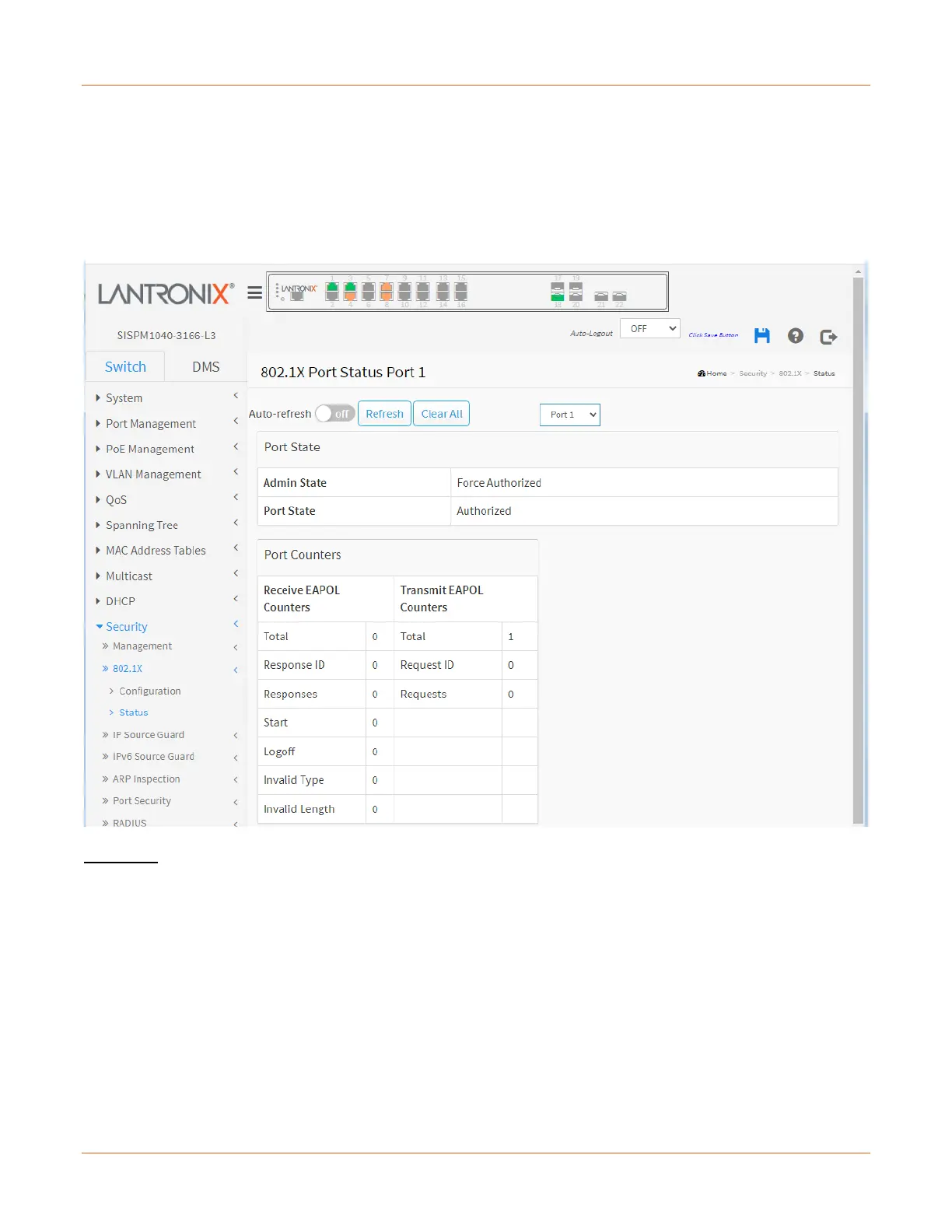

802.1X Port Status page
Click a linked port # in the Port column of the 802.1X Status page to display the port’s Status page.
This page provides detailed 802.1X statistics for a specific switch port running EAPOL-based IEEE 802.1X
authentication. For MAC-based ports, it shows only selected backend server (RADIUS Authentication Server)
statistics.
Use the port select box to select which port details to be displayed.
Port State
Admin State: The port's current administrative state. Refer to 802.1X Admin State for a description of possible
values.
Port State: The current state of the port. Refer to 802.1X Port State above for a description of the individual
states.
QoS Class: The QoS class assigned by the RADIUS server. The field is blank if no QoS class is assigned.
Port VLAN ID: The VLAN ID that 802.1X has put the port in. The field is blank if the Port VLAN ID is not
overridden by 802.1X.
If the VLAN ID is assigned by the RADIUS server, "(RADIUS-assigned)" is appended to the VLAN ID. Read more
about RADIUS-assigned VLANs here.
If the port is moved to the Guest VLAN, "(Guest)" is appended to the VLAN ID. Read more about Guest VLANs
here.
