Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 405
OSPFv3 > Detail Database > Link

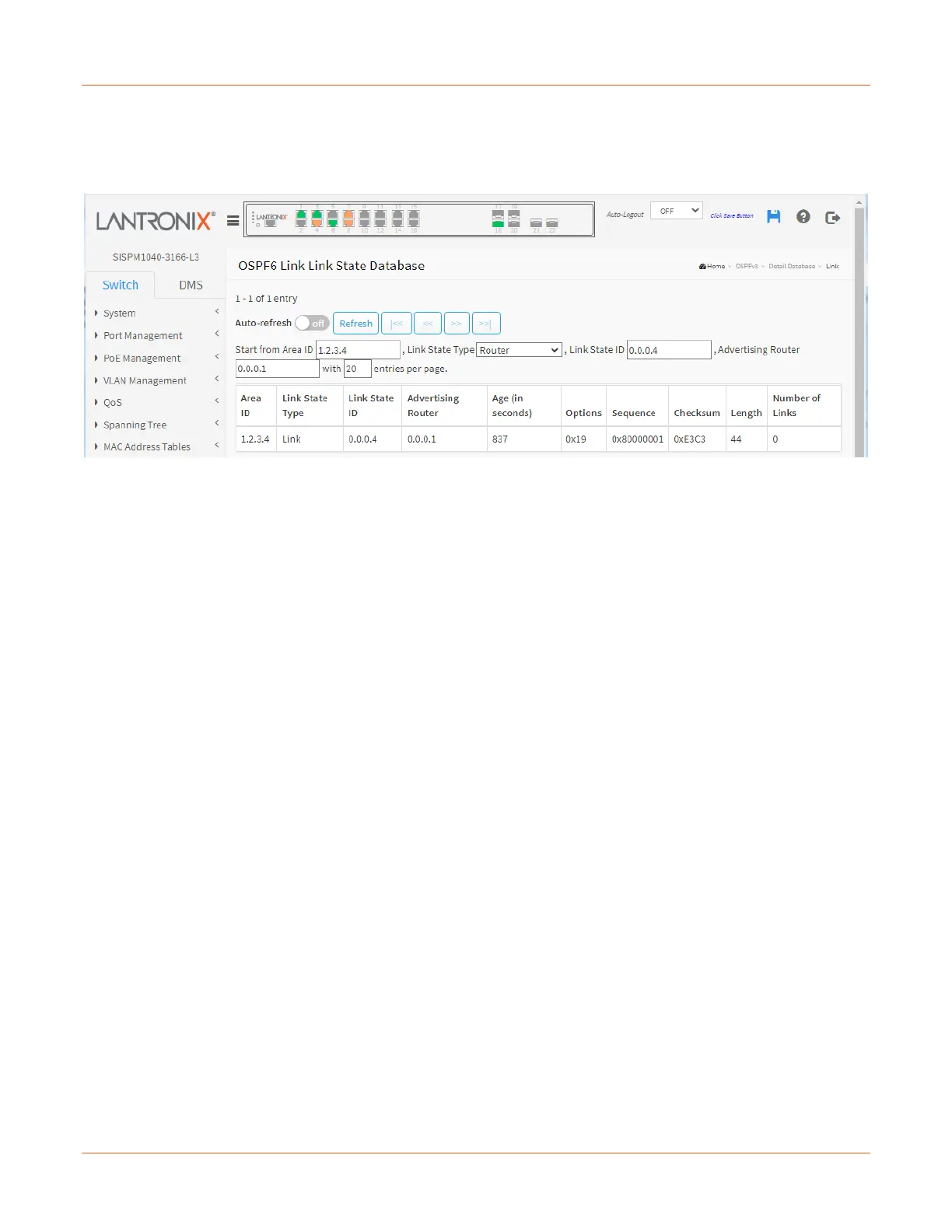

This page displays the OSPF6 LSA Link link-state database table. Set the Start from Area ID, Link State Type,
Link State ID, Advertising Router, and entries per page controls.
Area ID: The OSPF6 area ID of the link state advertisement
Link State Type: The type of the link state advertisement.
Link State ID: The OSPF6 link state ID. It identifies the piece of the routing domain that is being described by the
LSA.
Advertising Router: The advertising router ID which originated the LSA.
Age: The time in seconds since the LSA was originated.
Options: The OSPF6 option field, present in OSPF6 hello packets, which enables OSPF6 routers to support (or
not support) optional capabilities, and to communicate their capability level to other OSPF6 routers.
Sequence: The LS sequence number of the LSA.
Checksum: The checksum of the LSA contents.
Length: The Length in bytes of the LSA.
Number of Links: The count of the LSA.
Buttons
Auto-refresh: Check this box to refresh the page automatically every 3 seconds.
Refresh: Click to refresh the page immediately.
|<< : Updates the table entries, starting from the first available entry. If the first entry of the table is displayed, the
button is disabled.
<< : Updates the table entries, ending at the entry prior to the first entry currently displayed. If the first entry of the
table is displayed, the button is disabled.
>> : Updates the table entries, starting from the entry next to the last entry currently displayed. If the last entry of
the table is displayed, the button is disabled.
>> | : Updates the table entries, ending at the last available entry. If the last entry of the table is displayed, the
button is disabled.
