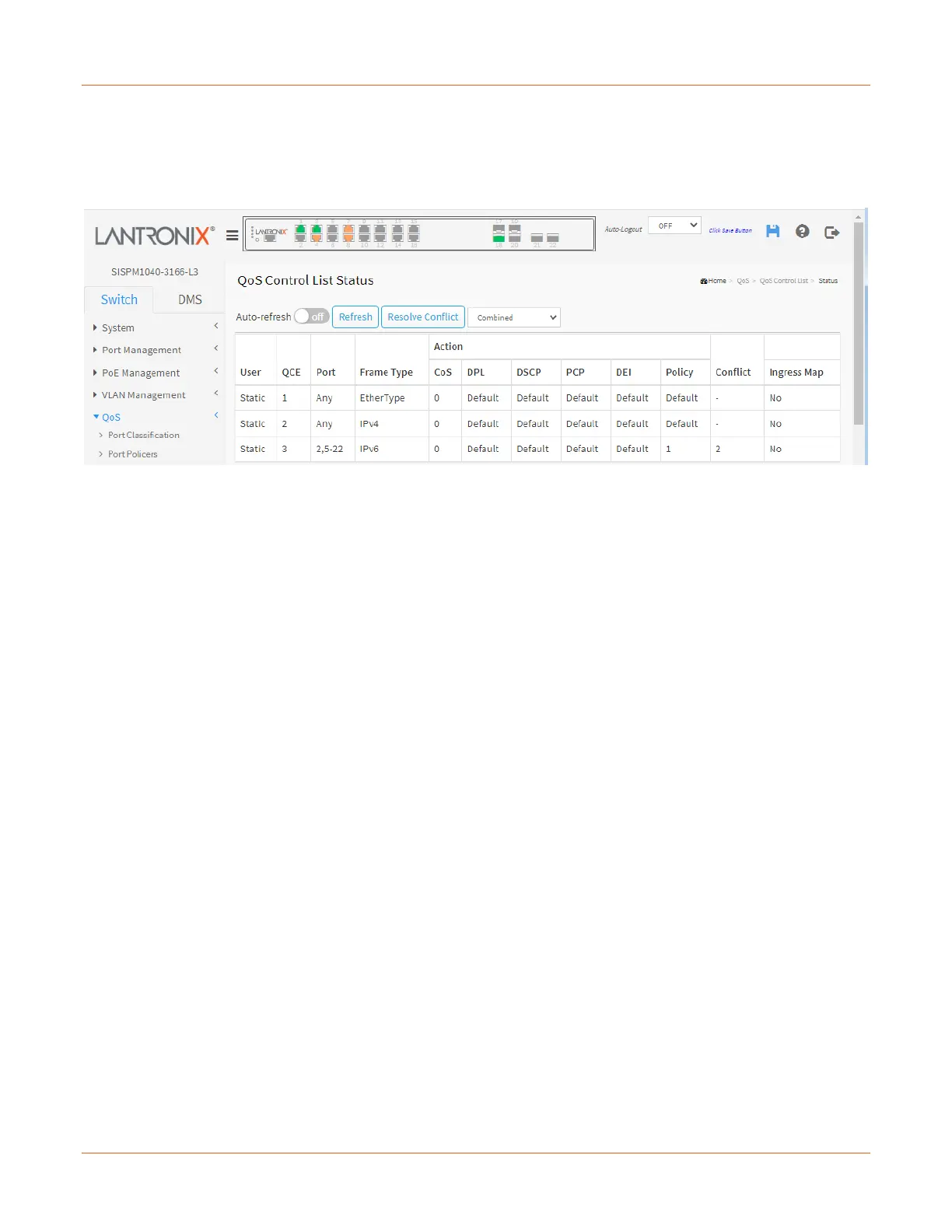

Status
This page shows the QCL status by different QCL users. Each row describes the QCE that is defined. It is a
conflict if a specific QCE is not applied to the hardware due to hardware limitations. The maximum number of
QCEs is 256 per switch.
User: Indicates the QCL user.
QCE: Indicates the QCE id.
Port: Indicates the list of ports configured with the QCE.
Frame Type: Indicates the type of frame. Possible values are:
Any: Match any frame type.
Ethernet: Match EtherType frames.
LLC: Match (LLC) frames.
SNAP: Match (SNAP) frames.
IPv4: Match IPv4 frames.
IPv6: Match IPv6 frames.
Action: Indicates the classification action taken on ingress frame if parameters configured are matched with the
frame's content. Possible actions are:
Queue Priority: Classify Class of Service.
DPL: Classify Drop Precedence Level.
DSCP: Classify DSCP value.
PCP: Classify PCP value.
DEI: Classify DEI value.
Policy: Classify ACL Policy number.
Conflict: Displays Conflict status of QCL entries. As hardware resources are shared by multiple applications.
It may happen that resources required to add a QCE may not be available; in that case it shows Conflict status as
'Yes', otherwise it is always 'No'. Note that conflict can be resolved by releasing the hardware resources required
to add QCL entry on pressing 'Resolve Conflict' button.
