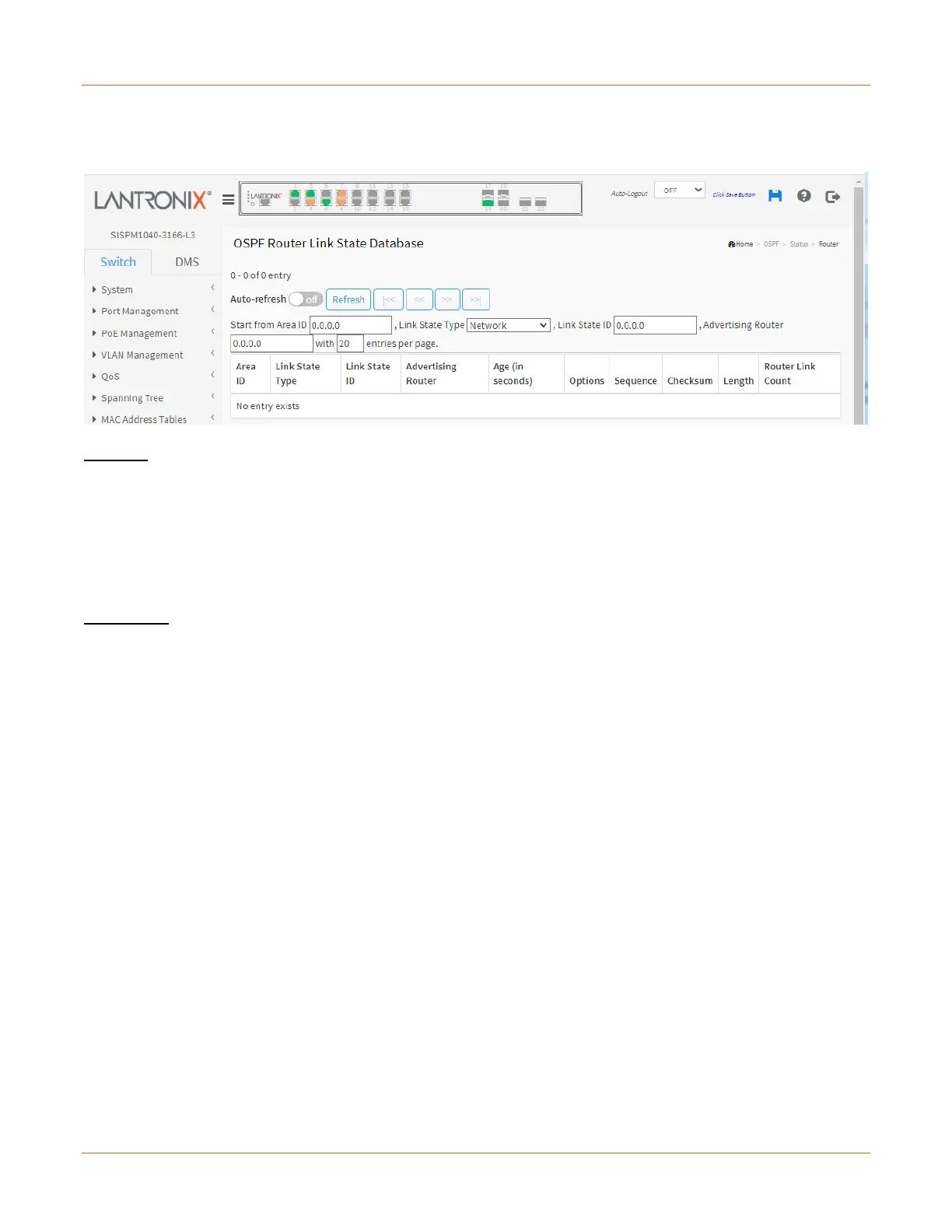

OSPF > Status > Router
This page displays the OSPF LSA Router link state database information table.
Controls: Click the Refresh button to take effect.
Start from Area ID: Enter the start from area IP address in the format 0.0.0.0.
Link State Type: At the dropdown select Router, Network, Summary, ASBR Summary, External, or NSSA
External.
Link State ID: Enter the link state ID in the format 0.0.0.0.
Advertising Router: The advertising router ID which originated the LSA.
Parameters:
Area ID: The OSPF area ID of the link state advertisement
Link State Type: The type of the link state advertisement.
Link State ID: The OSPF link state ID. It identifies the piece of the routing domain that is being described by the
LSA.
Advertising Router: The advertising router ID which originated the LSA.
Age: The time in seconds since the LSA was originated.
Options: The OSPF option field, present in OSPF hello packets, which enables OSPF routers to support (or not
support) optional capabilities, and to communicate their capability level to other OSPF routers.
Sequence: The LS sequence number of the LSA.
Checksum: The checksum of the LSA contents.
Length: The Length in bytes of the LSA.
Router Link Count: The link count of the LSA. The field is significant only when the link state type is 'Router Link
State' (Type 1).
Buttons
Auto-refresh : Check this box to refresh the page automatically every 3 seconds.
Refresh: Click to refresh the page immediately.
|<< : Updates the table entries, starting from the first available entry. If the first entry of the table is displayed, the
button is disabled.
