Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 148
MSTI Configuration

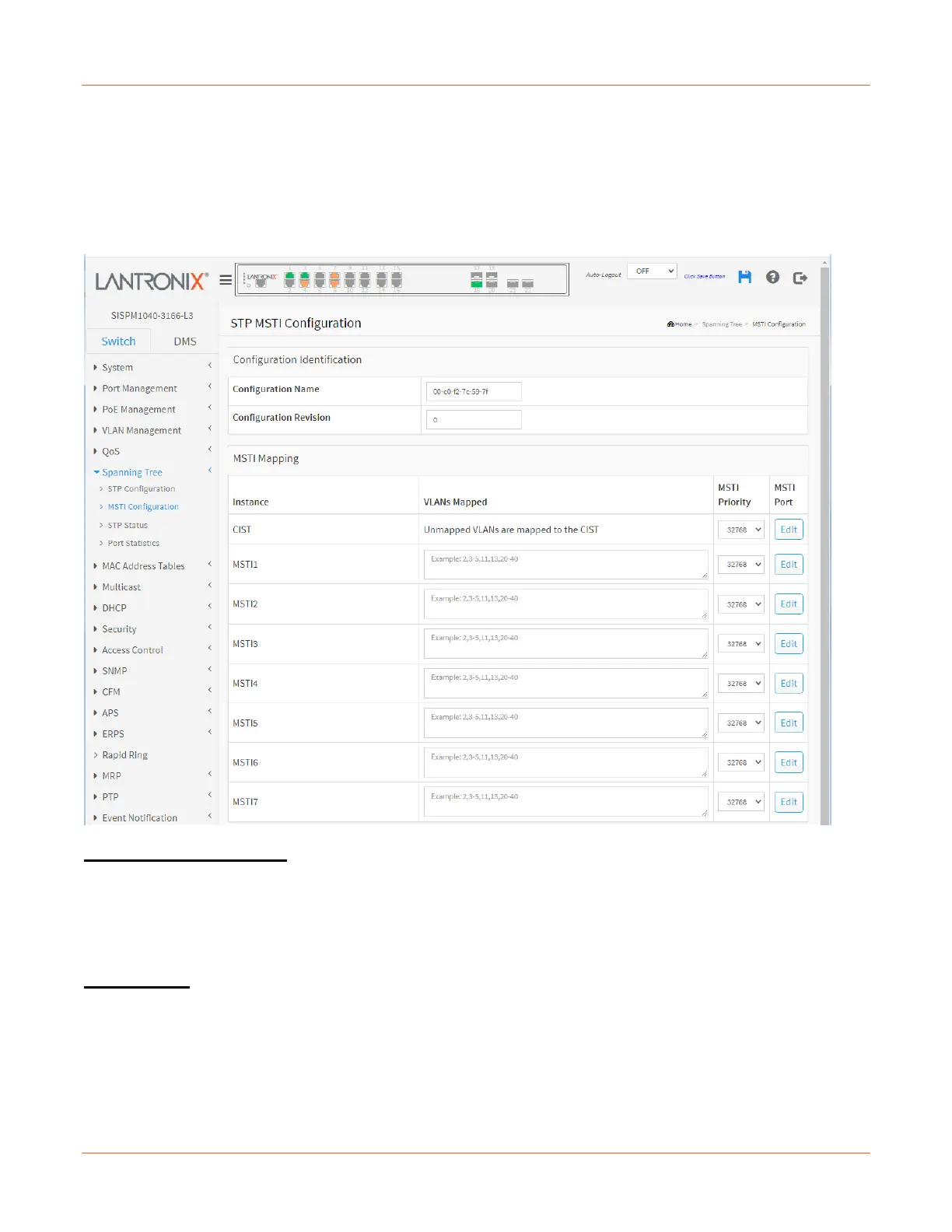

This page lets you view and set current STP MSTI bridge instance priority parameters.
When you implement a Spanning Tree protocol on the switch that is the bridge instance, the CIST is not available
for explicit mapping, as it will receive the VLANs not explicitly mapped. So you must set the list of VLANs mapped
to the MSTI. The VLANs must be separated with comma and/or space. A VLAN can only be mapped to one
MSTI. An unused MSTI should just be left empty (I.e., not have any VLANs mapped to it).
Configuration Identification
Configuration Name: The name identifying the VLAN to MSTI mapping. Bridges must share the name and
revision (see below), as well as the VLAN-to-MSTI mapping configuration in order to share spanning trees for
MSTI's (Intra-region). The name can have at most 32 characters.
Configuration Revision: The revision of the MSTI configuration named above. This must be an integer 0-65535.
MSTI Mapping
Instance: The bridge instance. The CIST is not available for explicit mapping, as it will receive the VLANs not
explicitly mapped.
VLANs Mapped: The list of VLANs mapped to the MSTI. The VLANs can be given as a single (xx, xx being
between 1 and 4094) VLAN, or a range (xx-yy), each of which must be separated with comma and/or space.
A VLAN can only be mapped to one MSTI. An unused MSTI should just be left empty (I.e., not having any VLANs
mapped to it.) Example: 2,5,20-40.
