Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 371

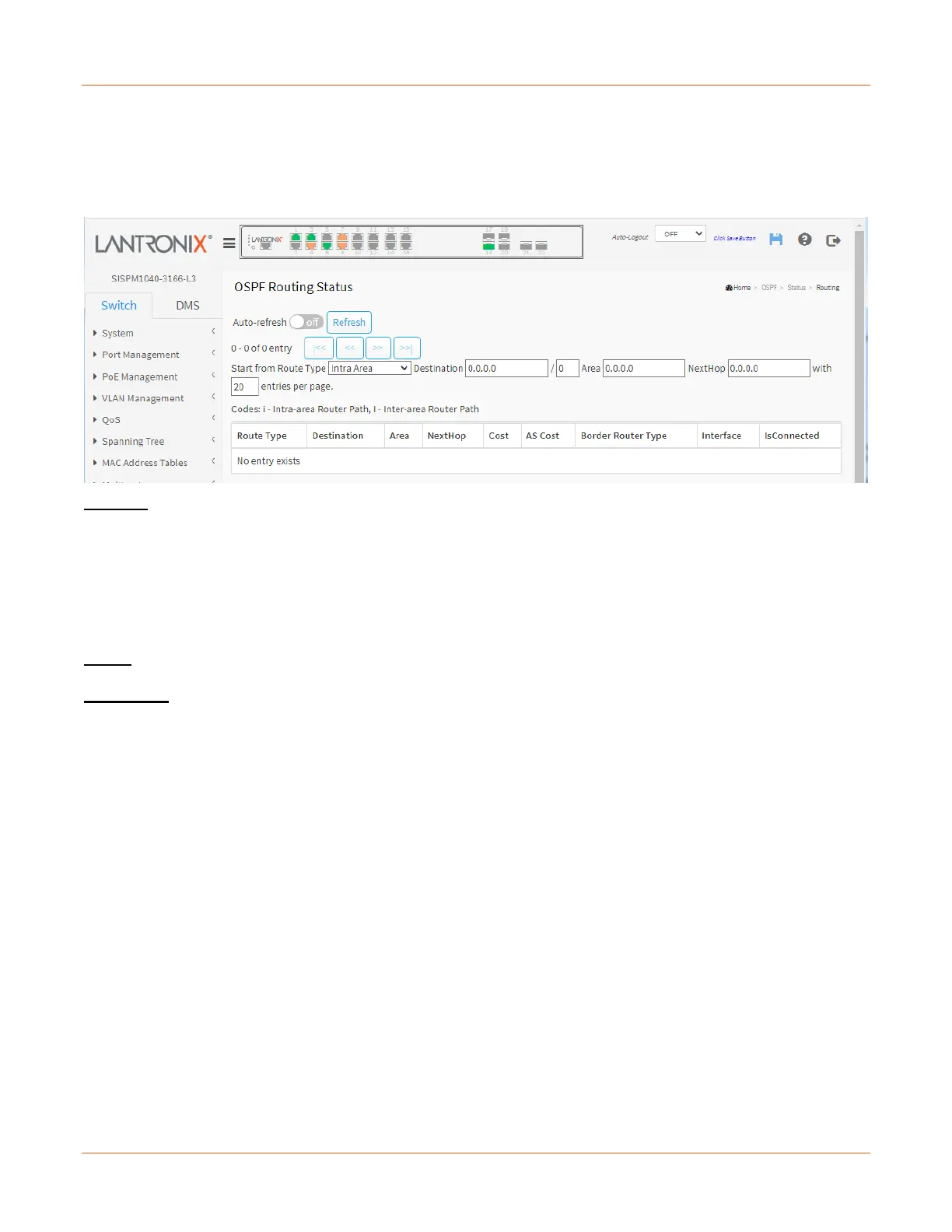

OSPF > Status > Routing Status
This page displays the OSPF routing status table.
Each page shows up to 999 table entries, selected through the "entries per page" input field. When first visited,
the web page will show the beginning entries of this table.
Controls:
Start from Route Type: This input field lets you change the starting point of this table. At the dropdown select
Intra Area, Inter Area, Border Router, External Type-1, or External Type-2. The default is Intra Area.
Destination: Enter the destination IP in the format 0.0.0.0/0.
Area: Enter the area IP in the format 0.0.0.0.
Next Hop: Enter the next hop IP in the format 0.0.0.0.
Codes:
i - Intra-area Router Path, I - Inter-area Router Path.
Parameters:
Route Type: The OSPF route type:
Intra Area: The destination is an OSPF route which is located on intra-area.
Inter Area: The destination is an OSPF route which is located on inter-area.
Border Router: The destination is a border router.
External Type-1: The destination is an external Type-1 route.
External Type-2: The destination is an external Type-2 route.
Destination: Network and prefix (e.g., 10.0.0.0/16) of the given route entry.
Area: Indicates which area the route or router can be reached via/to.
NextHop: Ipv4 address encoded as "a.b.c.d", where a-d is a base-10 human readable integer in the range 0-255.
Cost: The cost of the route.
AS Cost: The cost of the route within the OSPF network. It is valid for external Type-2 route and always '0' for
other route types.
Border Router Type: The border router type of the OSPF route entry.
i-ABR: The border router is an ABR.
i-ASBR: The border router is an ASBR located on Intra-area.
I-ASBR: The border router is an ASBR located on Inter-area.
i-ABR/ASBR: The border router is an ASBR attached to at least 2 areas.
