Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 479
Related Devices
MRP is implemented at FW v7.10.2368 for SISPM1040-384-LRT-C, SISPM1040-362-LRT, SISPM1040-582-LRT, SISGM1040-
284-LRT, SISPM1040-3166-L, and SISPM1040-3248-L.
MRP Sample Setup

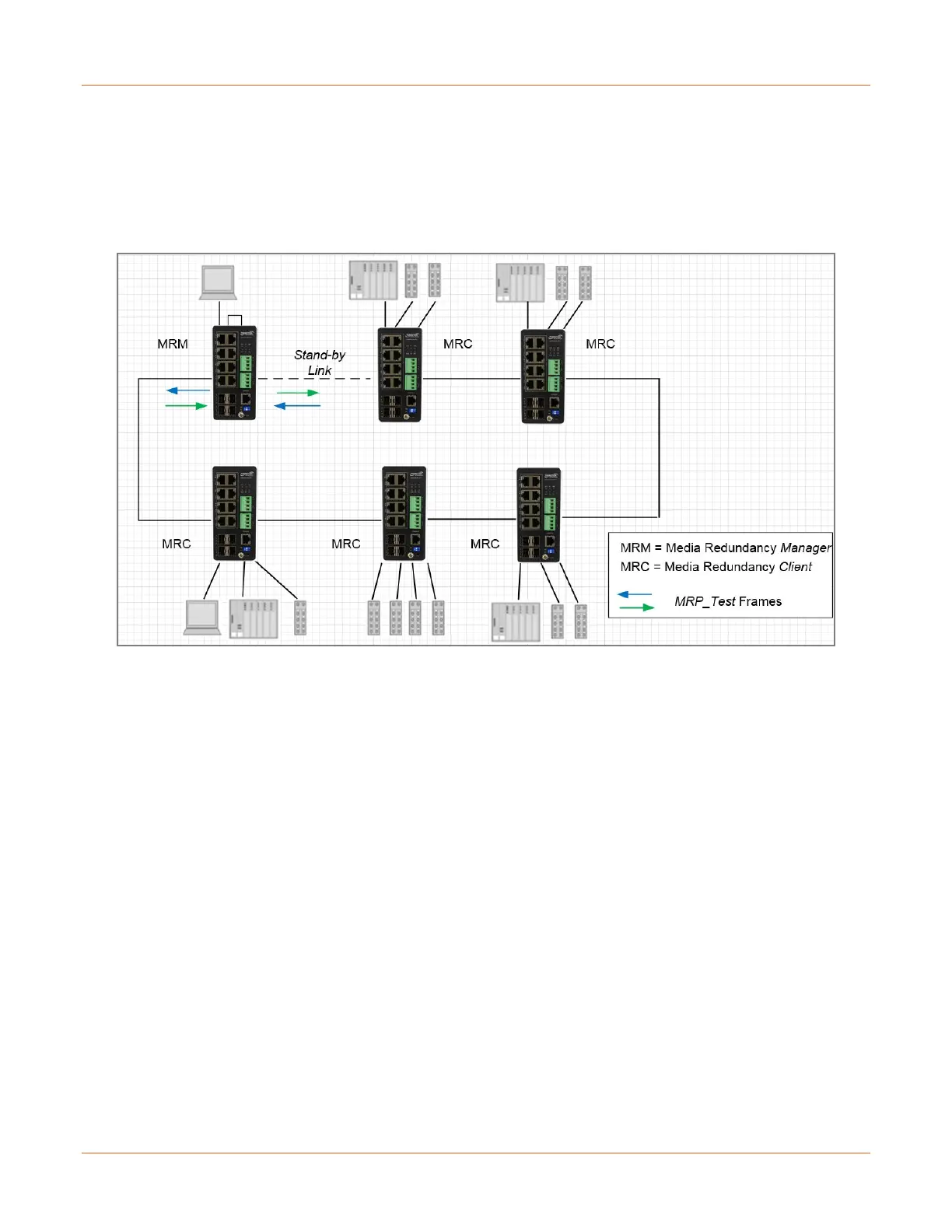

The example below shows SISPM1040-384-LRT-C switches (one MRM and five MRCs).
Figure: MRP Sample Setup
MRP Pre-Requisites (General)
The following are required to perform MRP setups.
1. Spanning Tree must be disabled at Configuration > Spanning Tree > CIST Port.
2. Other Ring technologies must also be disabled (G.8031 EPS, G.8032 ERPS, Rapid-Ring, Ring-To-Ring, etc.).
3. Only one MRM (Manager) is supported per ring.
4. Other pre-requisites may apply to the specific examples below.
5. One Manager Admin Role is supported.
