Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 71

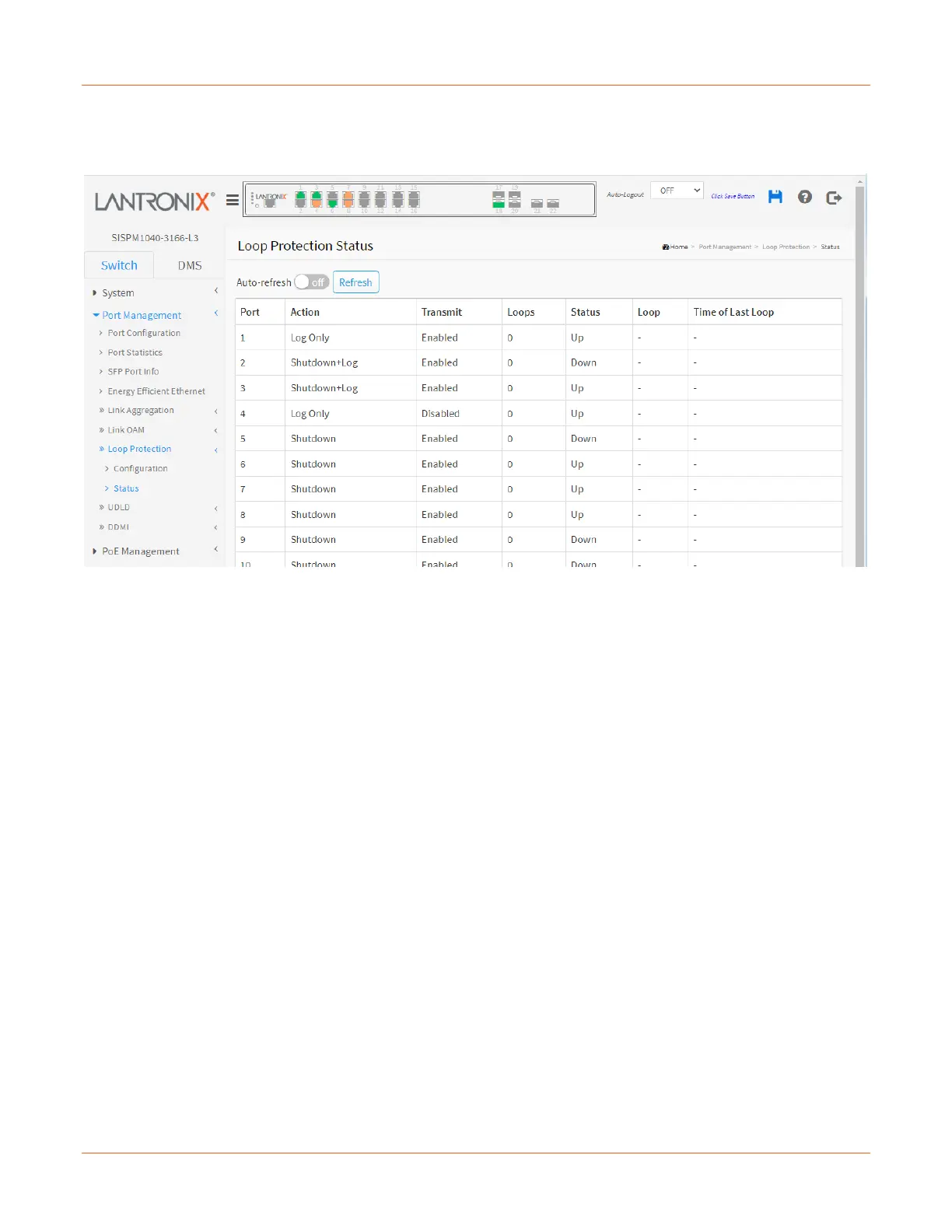

Port Management > Loop Protection > Status
This page displays the loop protection port status the ports of the switch.
Port: The switch port number of the logical port.
Action: The currently configured port action.
Transmit: The currently configured port transmit mode.
Loops: The number of loops detected on this port.
Status: The current loop protection status of the port.
Loop: Whether a loop is currently detected on the port.
Time of Last Loop: The time of the last loop event detected.
Buttons
Auto-refresh: Check this box to enable an automatic refresh of the page every 3 seconds.
Refresh: Click to refresh the page immediately.
