Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 114

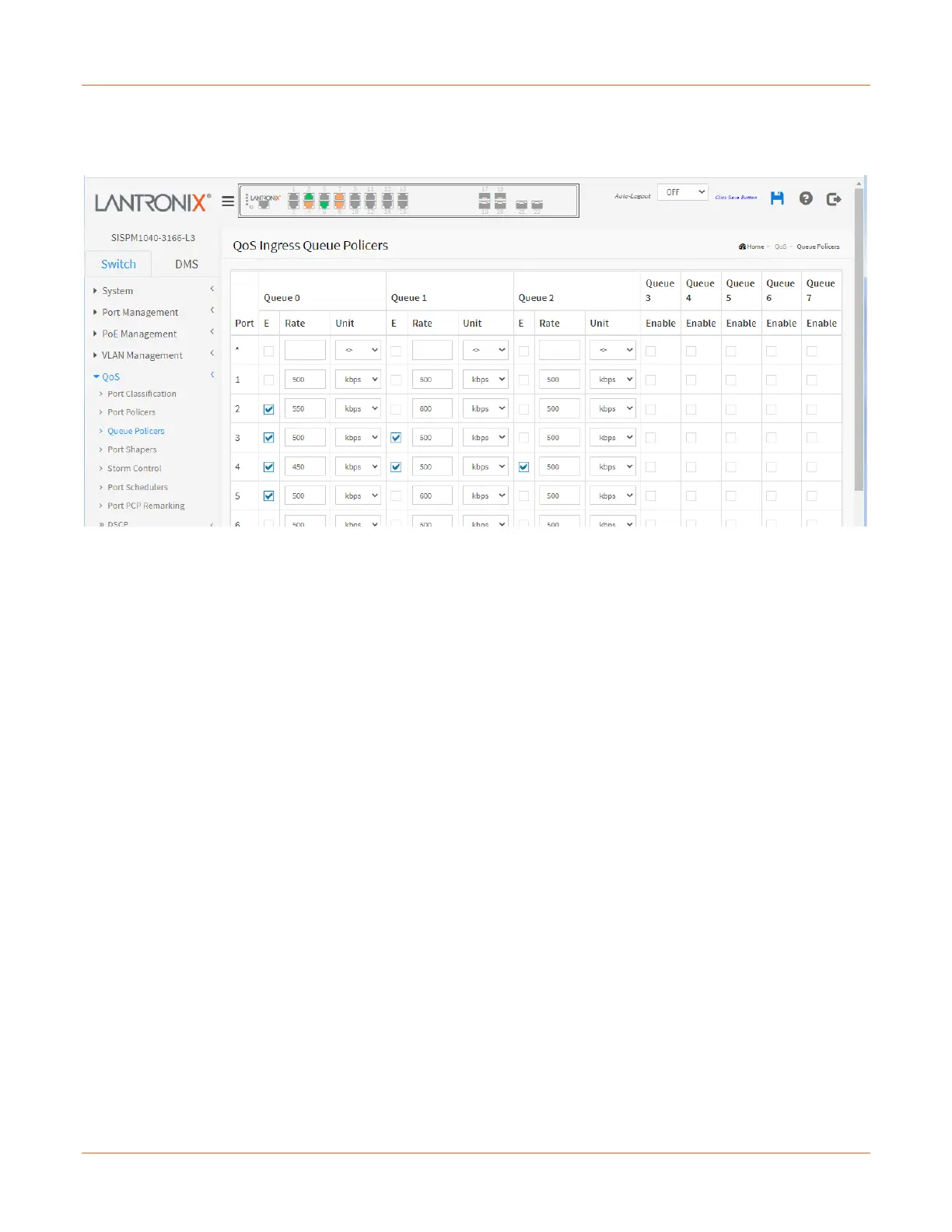

QoS > Queue Policers
This page allows you to configure the Queue Policer settings for all switch ports.
Port: The port number for which the configuration below applies.
E: Check the box to enable or uncheck to disable the queue policer for this switch port.
Rate: Controls the rate for the queue policer. Valid values are 25-13128147 when "Unit" is kbps, and 1-13128
when "Unit" is Mbps. The rate is internally rounded up to the nearest value supported by the queue policer. This
field is only shown if at least one of the queue policers are enabled.
Unit: Controls the unit of measure for the queue policer rate as kbps or Mbps. This field is only shown if one or
more of the queue policers are enabled.
Buttons
Apply: Click to save changes.
Reset: Click to undo any changes made locally and revert to previously saved values.
