Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 390

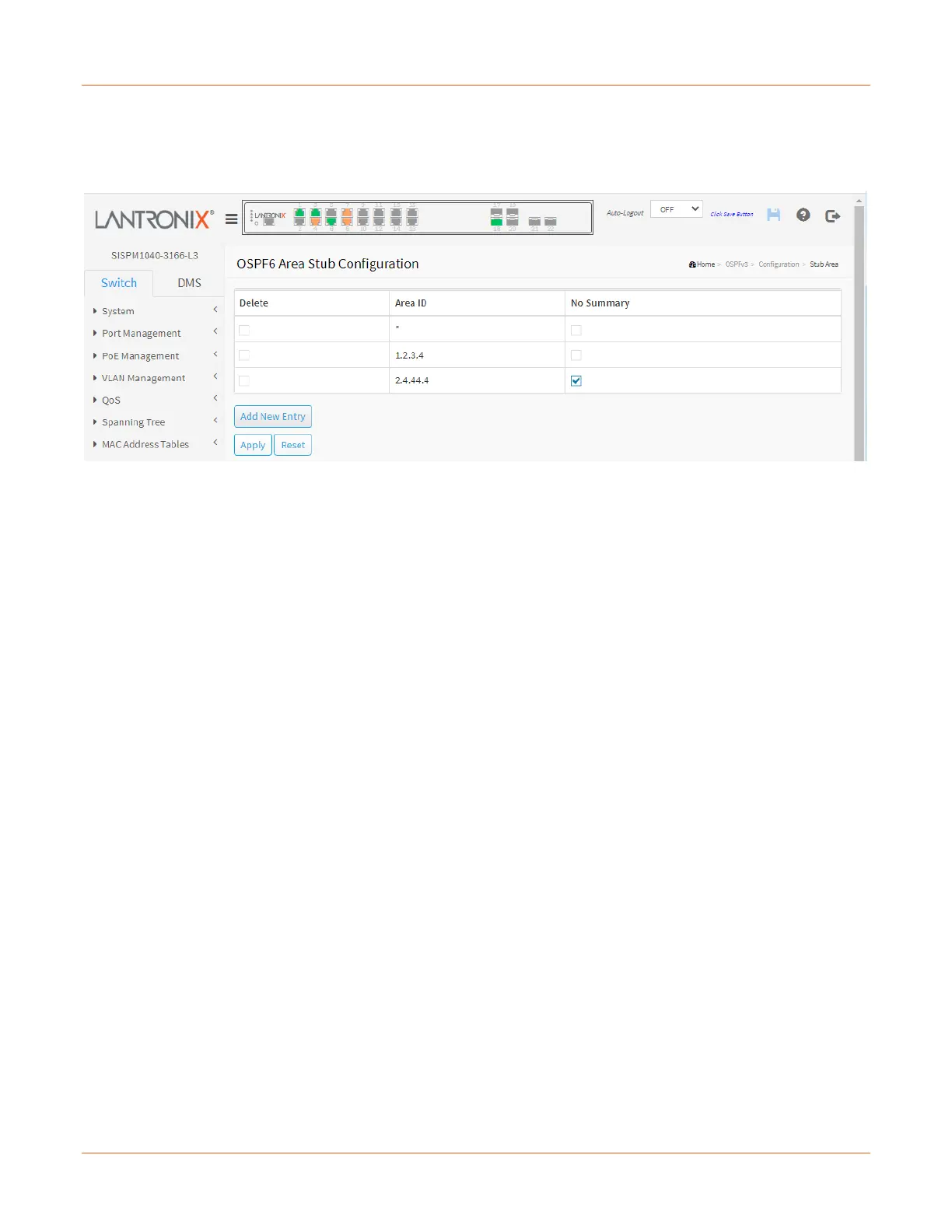

OSPFv3 > Configuration > Stub Area
This page displays the OSPF6 stub area configuration table. The configuration is used to reduce the link-state
database size and thus the memory and CPU requirement by forbidding some LSAs.
Delete: Check to delete the entry. It will be deleted during the next save.
Area ID: The OSPF6 area ID.
No Summary: The value is true (checkbox checked) to configure the inter-area routes to not inject into this stub
area.
Buttons
Add New Entry: Click to add new entry.
Apply: Click to save changes.
Reset: Click to undo any changes made locally and revert to previously saved values.
Messages:
JSON RPC Error. (Backbone can not be configured as stub area)
The new entry {0.0.0.0} is duplicated.
