OSPFv3 > Status > Routing Status

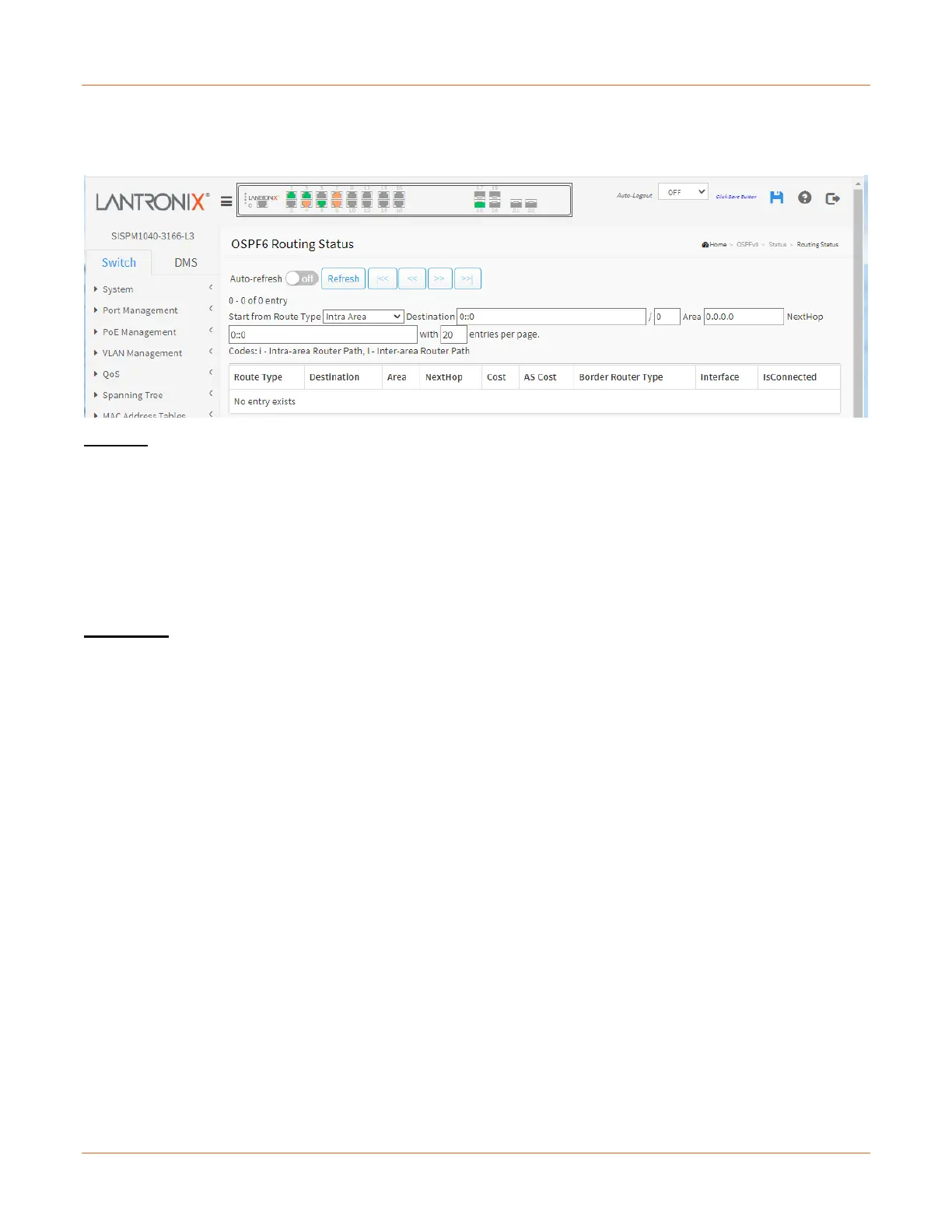

This page displays the OSPF6 routing status table.
Controls:
Start from Route Type: At the dropdown select Inter Area, Intra Area, Border Router, External Type-1, or
External Type-2.
Destination: Enter the destination IP.
Area: Enter the Area IP.
NextHop: Enter the Next Hop IP
Codes: i - Intra-area Router Path, I - Inter-area Router Path
Parameters:
Route Type: The OSPF6 route type:
Intra Area: The destination is an OSPF6 route which is located on intra-area.
Inter Area: The destination is an OSPF6 route which is located on inter-area.
Border Router: The destination is a border router.
External Type-1: The destination is an external Type-1 route.
External Type-2: The destination is an external Type-2 route.
Destination: Network and prefix (example 10.0.0.0/16) of the given route entry.
Area: It indicates which area the route or router can be reached via/to.
NextHop: An Ipv6 address represented as human readable text as specified in IETF RFC 5952.
Cost: The cost of the route.
AS Cost: The cost of the route within the OSPF6 network. It is valid for external Type-2 route and always '0' for
other route types.
Border Router Type: The border router type of the OSPF6 route entry.
i-ABR: The border router is an ABR.
i-ASBR: The border router is an ASBR located on Intra-area.
I-ASBR: The border router is an ASBR located on Inter-area.
i-ABR/ASBR: The border router is an ASBR attached to at least two areas.
Interface: The interface where the IP packet is outgoing.
