Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 81

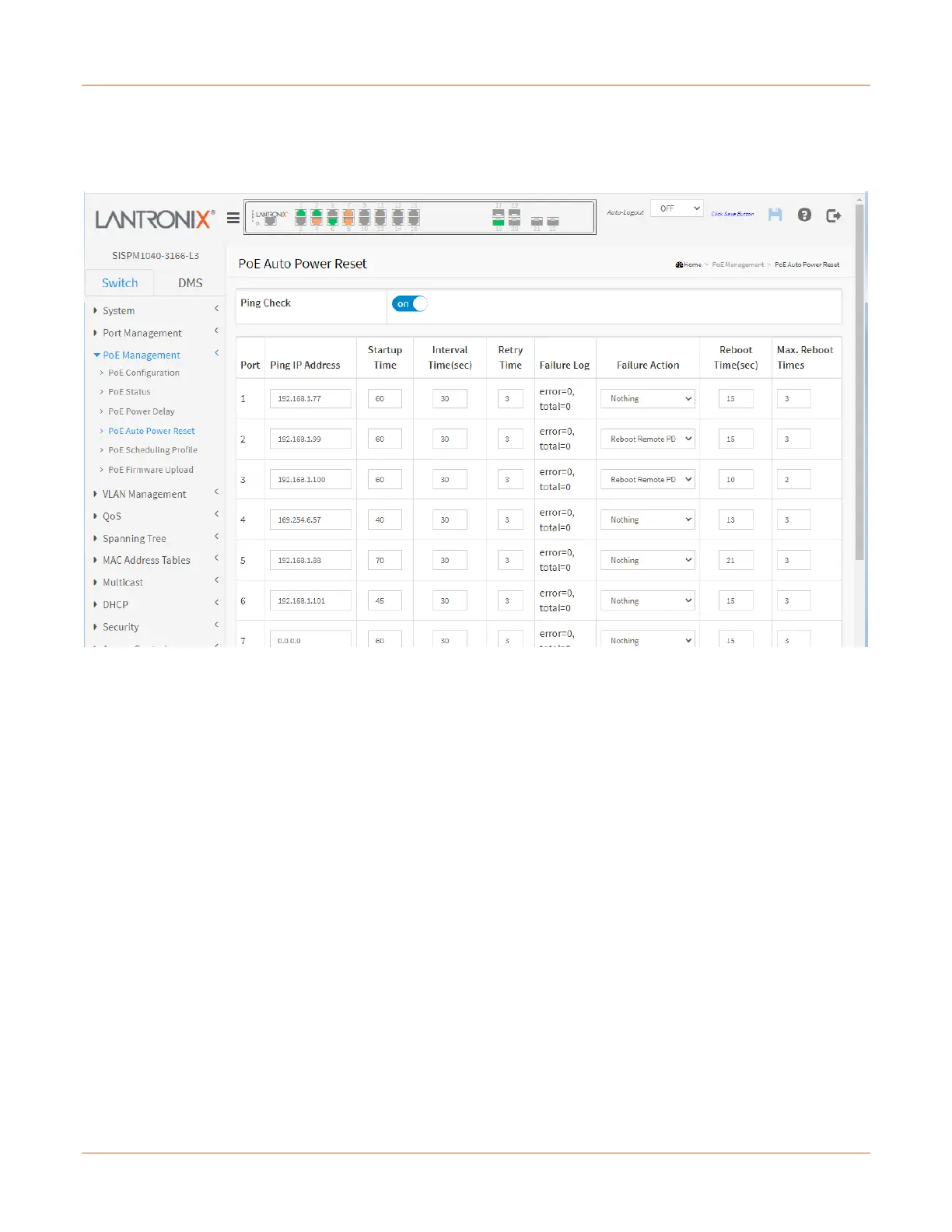

PoE Management > PoE Auto Checking
This page lets you specify the auto detection parameters to check the link status between PoE ports and PDs.
When it detects a failed connection, it can reboot the remote PD automatically.
Ping Check: When set to on, the Ping Check function can detect the connection between the PoE port and the
powered device. Setting to off will disable the detection.
Port: This is the logical port number for this row.
Ping IP Address: The PD's IP Address the system should ping.
Startup Time: When a PD has been started up, the switch will wait Startup Time to do PoE Auto Power Reset.
The default is 60 seconds; the valid range is 30-600 seconds.
Interval Time(sec): Device will send checking message to PD each interval time. The default is 30 seconds; the
valid range is 10-120 seconds.
Retry Time: When a PoE port can't ping the PD, it will try to send detection again. When this setting is reached, it
will trigger failure action. The default is 3 retries; the valid range is 1-5 retry attempts.
Failure Log: Displays the failure loggings counter.
Failure Action: The action to be taken when the third fail detection.
Nothing: Keep Pinging the remote PD but does nothing further.
Reboot Remote PD: Cut off the power of the PoE port, make the PD reboot.
Reboot Time(sec): When PD has been rebooted, the PoE port restored power after the specified time. default:
15, range: 3-120 sec.
Max. Reboot Times: When Failure Action is Reboot Remote PD, it limits times of Reboot. The default is 3 reboot
attempts, the valid range is 0-10 reboot attempts. A setting of 0 means unlimited reboots.
