Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 214

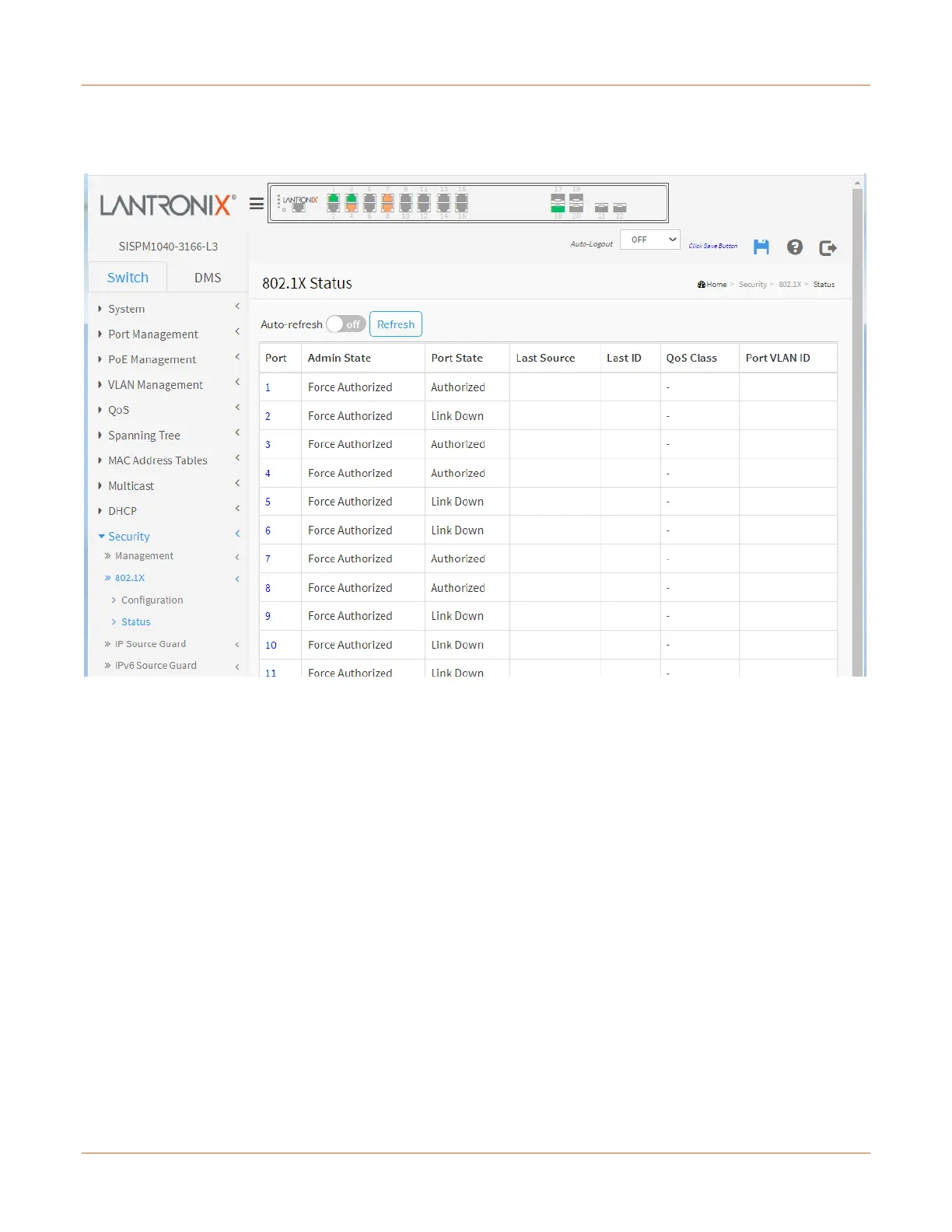

Security > 802.1X > Status
This page provides an overview of the current 802.1X port states.
Port: The switch port number. Click to navigate to detailed 802.1X statistics for this port (see below).
Admin State: The port's current administrative state. Refer to 802.1X Admin State above for a description of
possible values.
Port State: The current state of the port. Refer to 802.1X Port State above for a description of the individual
states.
Last Source: The source MAC address carried in the most recently received EAPOL frame for EAPOL-based
authentication, and the most recently received frame from a new client for MAC-based authentication.
Last ID: The user name (supplicant identity) carried in the most recently received Response Identity EAPOL
frame for EAPOL-based authentication, and the source MAC address from the most recently received frame from
a new client for MAC-based authentication.
QoS Class: QoS Class assigned to the port by the RADIUS server if enabled.
Port VLAN ID: The VLAN ID that 802.1X has put the port in. The field is blank if the Port VLAN ID is not
overridden by 802.1X.
If the VLAN ID is assigned by the RADIUS server, "(RADIUS-assigned)" is appended to the VLAN ID.
If the port is moved to the Guest VLAN, "(Guest)" is appended to the VLAN ID.
Buttons
Auto-refresh: Check this box to refresh the page automatically every 3 seconds.
Refresh: Click to refresh the page immediately.
