Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 257

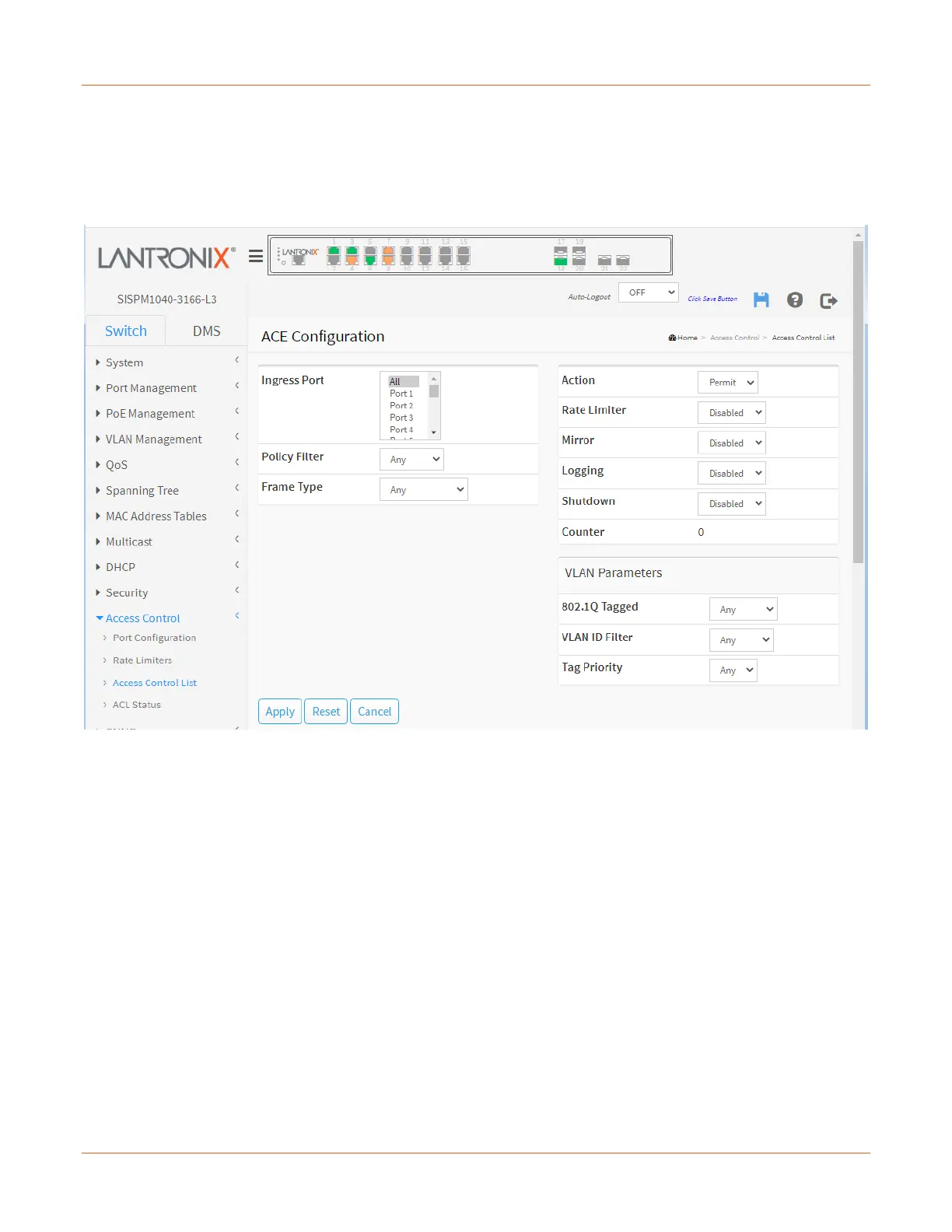

ACE Configuration page
Configure an ACE (Access Control Entry) on this page. An ACE consists of several parameters.
These parameters vary according to the Frame Type that you select. First select the Ingress Port for the ACE,
and then select the Frame Type. Different parameter options are displayed depending on the Frame Type
selected. A frame that hits this ACE matches the configuration that is defined here.
Ingress Port: Select the ingress port for which this ACE applies.
All: The ACE applies to all port.
Port n: The ACE applies to this port number, where n is the number of the switch port.
Policy Filter: Specify the policy number filter for this ACE.
Any: No policy filter is specified. (policy filter status is "don't-care".)
Specific: If you want to filter a specific policy with this ACE, choose this value. Two fields for entering a
policy value and bitmask display.
Policy Value: When "Specific" is selected for the policy filter, you can enter a specific policy value. The allowed
range is 0 to 127.
Policy Bitmask: When "Specific" is selected for the policy filter, you can enter a specific policy bitmask. The
allowed range is 0x0 to 0x7f. Notice the usage of bitmask, if the binary bit value is "0", it means this bit is "don't-
care". The real matched pattern is [policy_value & policy_bitmask]. For example, if the policy value is 3 and the
policy bitmask is 0x10(bit 0 is "don't-care" bit), then policy 2 and 3 are applied to this rule.
Frame Type: Select the frame type for this ACE. These frame types are mutually exclusive.
