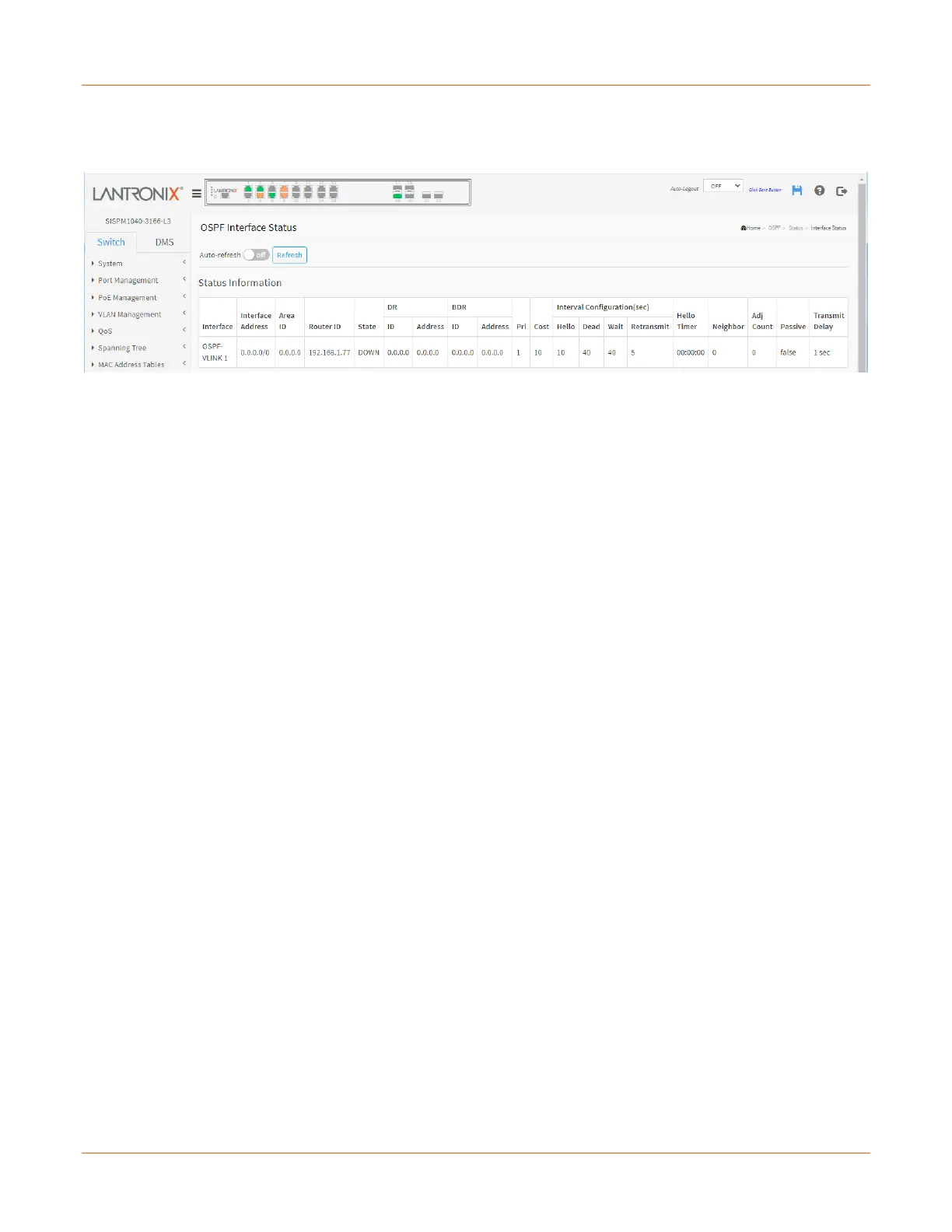

OSPF > Status > Interface Status
This page displays the OSPF interface status table which provides the OSPF interface status information.
Interface: Interface identification.
Interface Address: The IPv4 network address.
Area ID: The OSPF area ID.
Router ID: The OSPF router ID.
State: The state of the link (UP or DOWN).
DR ID: The router ID of DR.
DR Address: The IP address of DR.
BDR ID: The router ID of BDR.
BDR Address: The IP address of BDR.
Priority: The OSPF priority; it helps determine the DR and BDR on the network to which this interface is
connected.
Cost: The cost of the interface.
Hello: Hello timer; a time interval that a router sends an OSPF hello packet.
Dead: Dead timer is a time interval to wait before declaring a neighbor dead. The unit of time is seconds.
Wait: This interval is used in Wait Timer. Wait timer is a single shot timer that causes the interface to exit waiting
and select a DR on the network. Wait Time interval is the same as Dead time interval.
Retransmit: Retransmit timer. A time interval to wait before retransmitting a database description packet that has
not been acknowledged.
Hello Timer: Hello due timer; an OSPF hello packet will be sent on this interface after this due time.
Neighbor: Neighbor count; the number of OSPF neighbors discovered on this interface.
Adj Count: Adjacent neighbor count; the number of routers running OSPF that are fully adjacent with this router.
Passive: True indicates if the interface is passive interface, otherwise False.
Transmit Delay: The estimated time to transmit a link-state update packet on the interface.
