Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 228

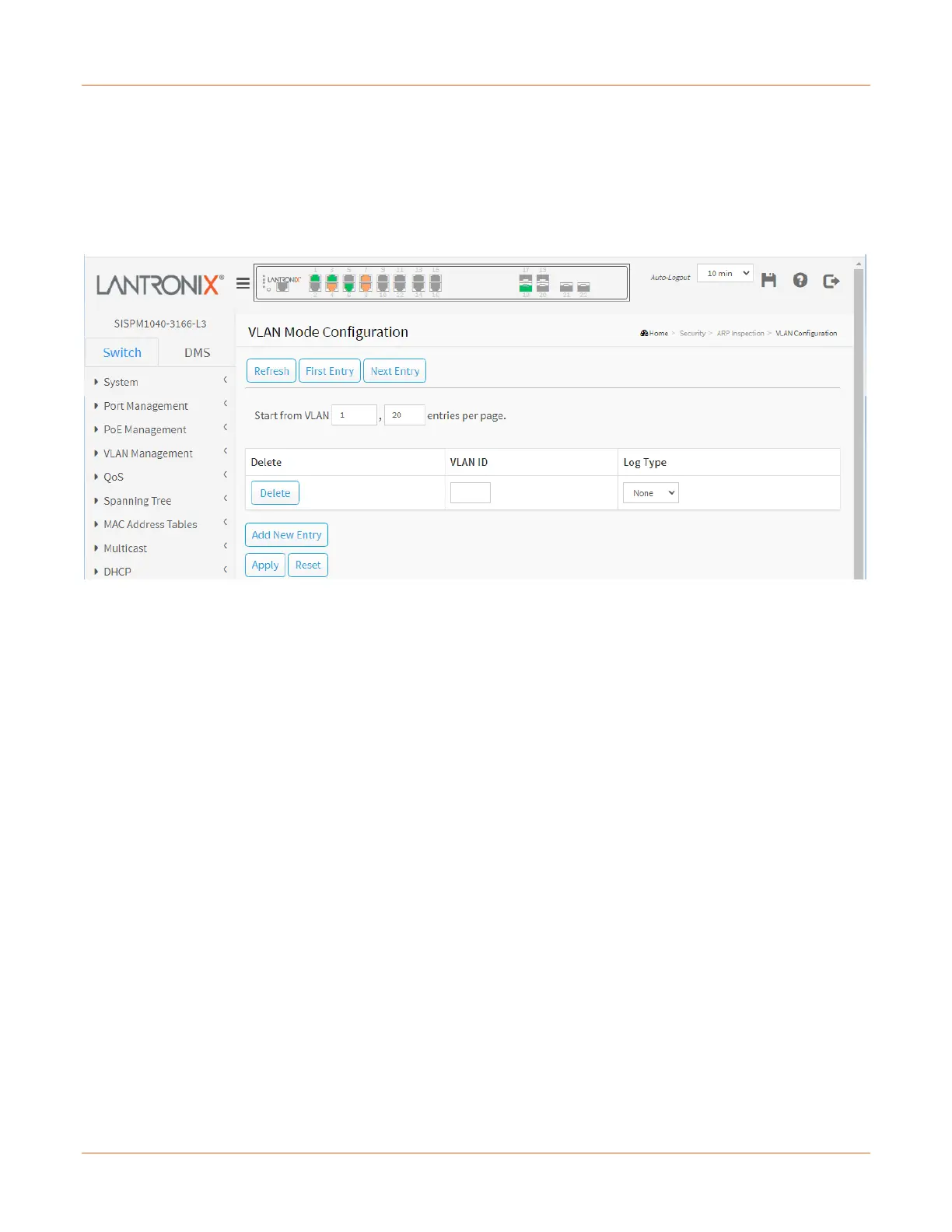

Security > ARP Inspection > VLAN Configuration
This page provides ARP Inspection related configuration.
Each page shows up to 9999 entries from the VLAN table, default being 20, selected through the "entries per
page" input field. When first visited, the web page will show the first 20 entries from the beginning of the VLAN
Table. The first displayed will be the one with the lowest VLAN ID found in the VLAN Table. The "Start from
VLAN" input fields let you select the starting point in the VLAN table.
VLAN ID: Specify which VLANs on which ARP Inspection is enabled. First, you must enable the port setting on
Port mode configuration web page. Only when both Global Mode and Port Mode on a given port are enabled,
ARP Inspection is enabled on this given port. Second, you can specify which VLAN will be inspected on the VLAN
Mode Configuration page.
Log Type: The level of logging can also be configured on a per-VLAN basis. Possible log types are:
None: Log nothing.
Deny: Log denied entries.
Permit: Log permitted entries.
All: Log all entries.
Buttons
Add New Entry: Click to add a new VLAN to the ARP Inspection VLAN table.
Apply: Click to save changes.
Reset: Click to undo any changes made locally and revert to previously saved values.
First Entry : Updates the table starting from the first entry in the table.
Next Entry : Updates the table, starting with the entry after the last entry currently displayed.
Refresh : Click to refresh the page immediately.
Delete : Check to delete the entry. It will be deleted during the next save operation.
