Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 183

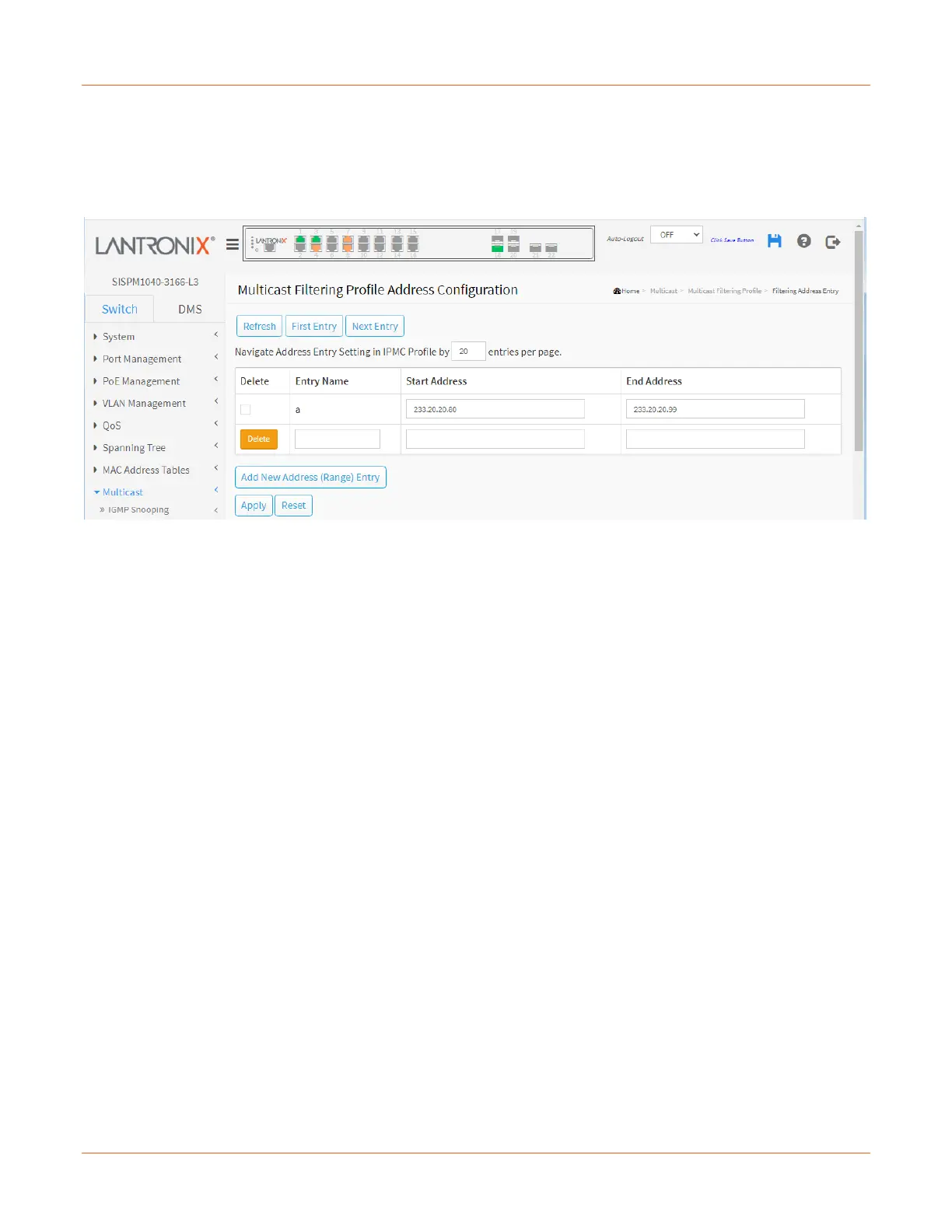

Multicast Filtering Profile > Filtering Address Entry
This page provides address range settings used in IPMC profile.
The address entry is used to specify the address range that will be associated with IPMC Profile. You can create
a maximum of 128 address entries per system.
Delete: Check to delete the entry. The designated entry will be deleted during the next save.
Entry Name: The name used for indexing the address entry table. Each entry has the unique name which is
composed of at maximum 16 alphabetic and numeric characters. At least one alphabet must be present.
Start Address: The starting IPv4/IPv6 Multicast Group Address that will be used as an address range.
End Address: The ending IPv4/IPv6 Multicast Group Address that will be used as an address range.
Buttons
Add New Address (Range) Entry: Click to add a new range of addresses. Specify the name and configure the
addresses. Click the "Apply" button.
Apply: Click to save changes.
Reset: Click to undo any changes made locally and revert to previously saved values.
Refresh: Refreshes the displayed table starting from the input fields.
First Entry: Updates the table starting from the first entry in the IPMC Profile Address Configuration.
Next Entry: Updates the table, starting with the entry after the last entry currently displayed.
