Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 125

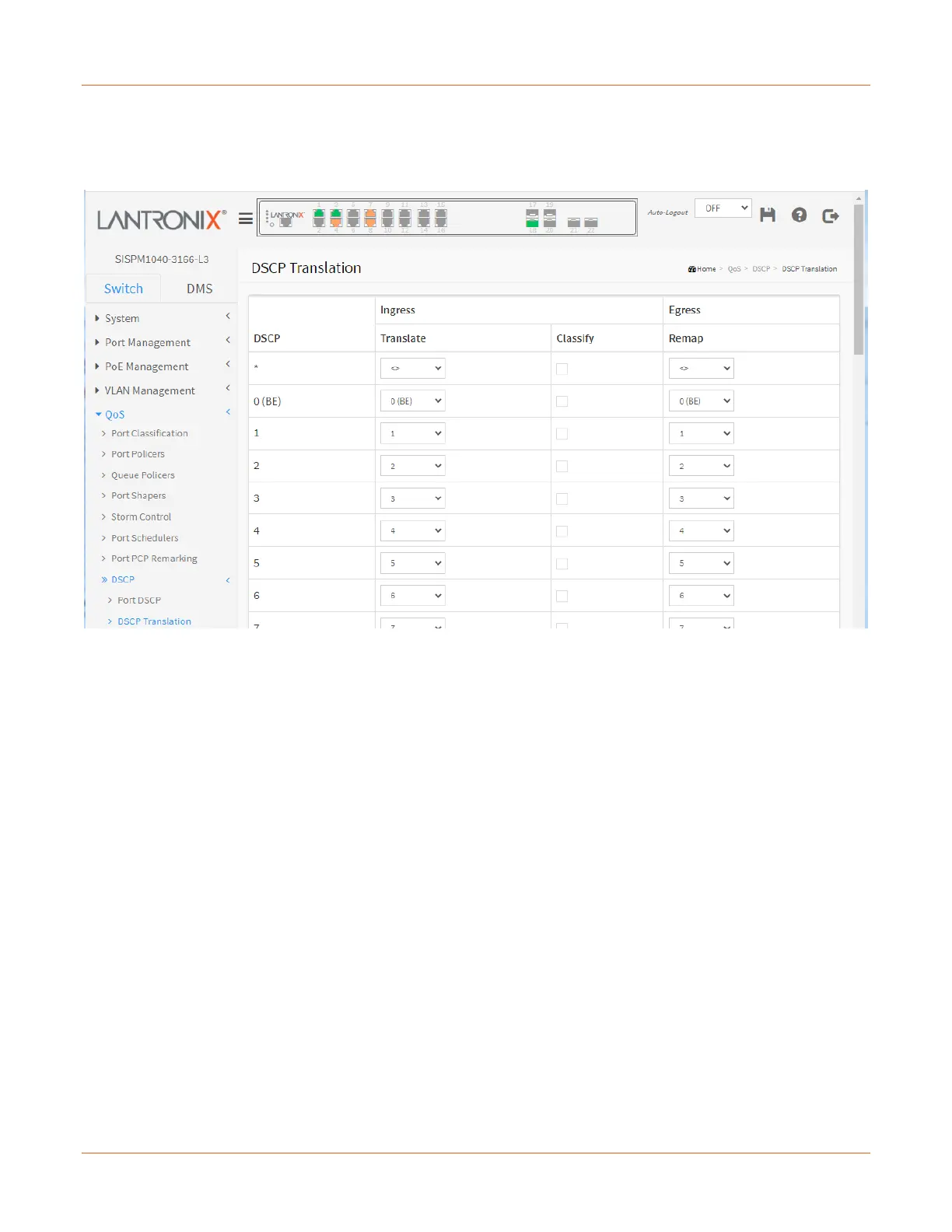

DSCP Translation
This page allows you to configure the basic QoS DSCP Translation settings for all switches. DSCP translation can
be done in Ingress or Egress.
DSCP: A maximum of 64 DSCP values are supported (in the range 0 - 63).
Ingress: Ingress side DSCP can be first translated to new DSCP before using the DSCP for CoS and DPL map.
There are two configuration parameters for DSCP Translation:
Translate: DSCP at Ingress side can be translated to any of (0-63) DSCP values.
Classify: Click to enable Classification at Ingress side.
Egress: There is one configurable parameter for Egress side:
Remap: Select the DSCP value from select menu to which you want to remap. DSCP value ranges from
0 to 63.
Buttons
Apply: Click to save changes.
Reset: Click to undo any changes made locally and revert to previously saved values.
