MRP

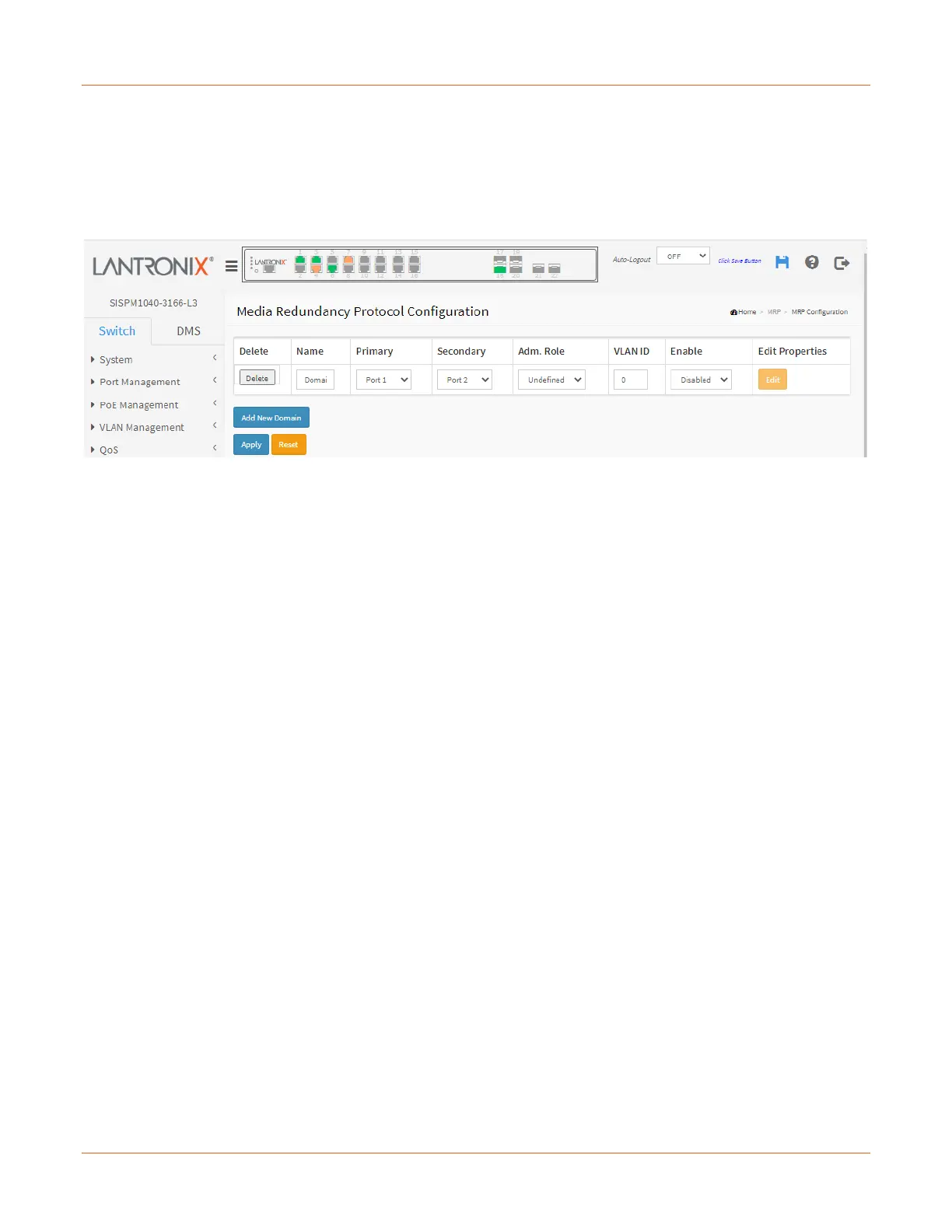

MRP > MRP Configuration
This page lets you set Media Redundancy Protocol parameters. The maximum number of entries is 2. Note that
other Ring technologies (e.g. STP, Rapid Ring) must be disabled.
Delete: Check to delete the entry. The designated entry will be deleted during the next save.
Name: A logical name for the MRP domain to easy the management of MRP domains (by default Domain1 and
Domain2).
Primary: The index of the layer 2 interface which is used as ring port 1.
Secondary: The index of the layer 2 interface which is used as ring port 2.
Adm. Role: If the value is set to
Client: the entity will be set to the role of a Media Redundancy Client (MRC).
Manager: the entity will be set to the role of a Media Redundancy Manager (MRM).
Undefined: No role is set (default).
VLAN ID: The VLAN ID assigned to the MRP protocol. The allowed range is 0 - 4094.
Enable: Enable or Disable the MRP protocol.
Edit Properties: Click the Edit button to edit domain properties on the Ring Domain Configuration page (see
below).
Buttons
Add New Domain: Click to add a new domain row.
Apply: Click to save changes.
Reset: Click to undo any changes made locally and revert to previously saved values.
