Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 116

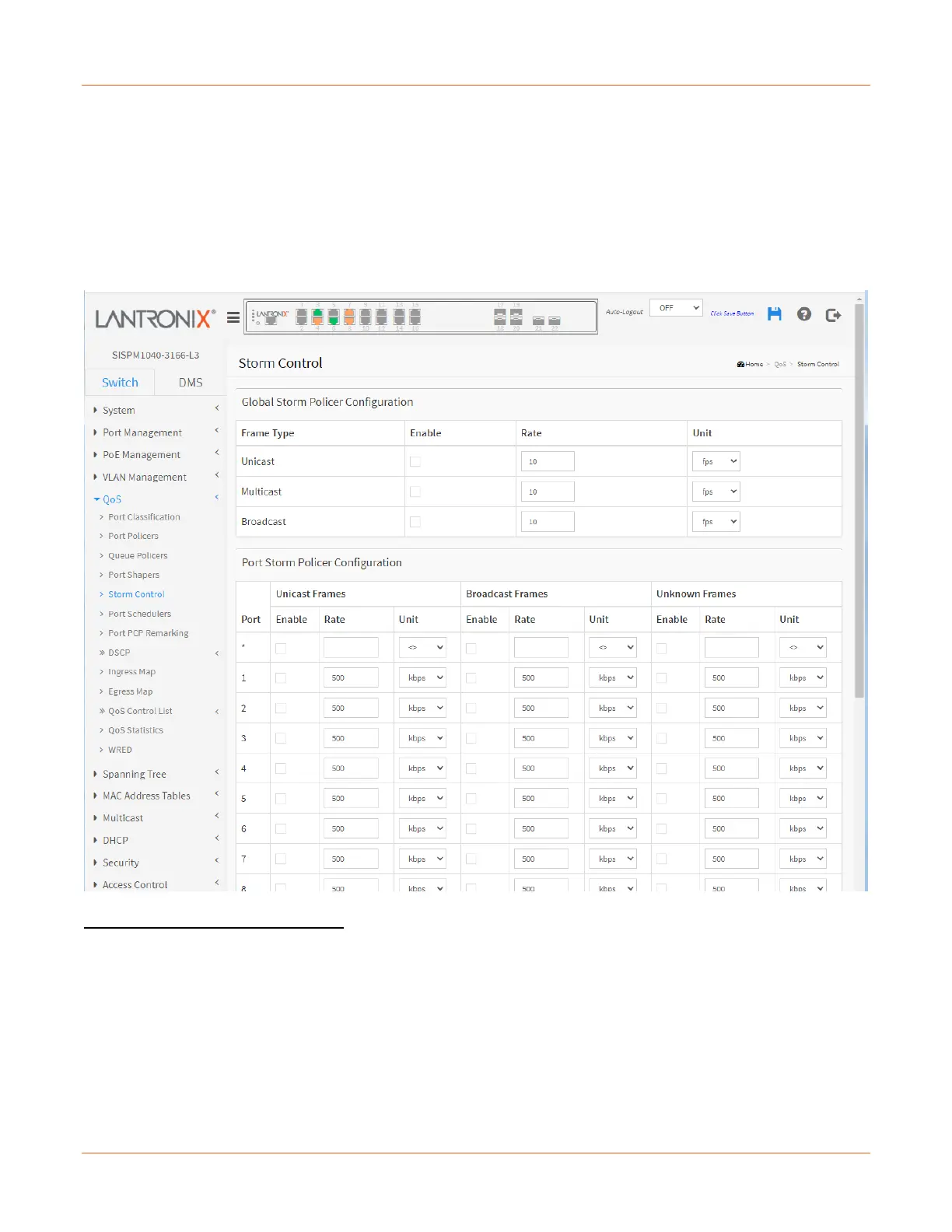

QoS > Storm Control
Global and Port storm policers for the switch are configured on this page. There is a unicast storm policer, a
multicast storm policer, and a broadcast storm policer. These only affect flooded frames (i.e., frames with a
(VLAN ID, DMAC) pair not present in the MAC Address table).
There is a destination lookup failure storm rate control, multicast storm rate control, and a broadcast storm rate
control. These only affect flooded frames (i.e., frames with a (VLAN ID, DMAC) pair not present on the MAC
Address table. The configuration indicates the permitted packet rate for unicast, multicast or broadcast traffic
across the switch.
Global Storm Policer Configuration
Frame Type: The frame type for which the configuration below applies.
Enable: Check the box to enable or uncheck to disable the global storm policer for the given Frame Type.
Rate: Controls the rate for the global storm policer. Valid values are 10-13128147 when "Unit" is fps or kbps, and
1-13128 when "Unit" is kfps or Mbps. The rate is internally rounded up to the nearest value supported by the
global storm policer. Supported rates are divisible by 10 fps or 25 kbps.
Unit: Controls the unit of measure for the global storm policer rate as fps, kfps, kbps or Mbps.
