DMS > Graphical Monitoring > Floor View

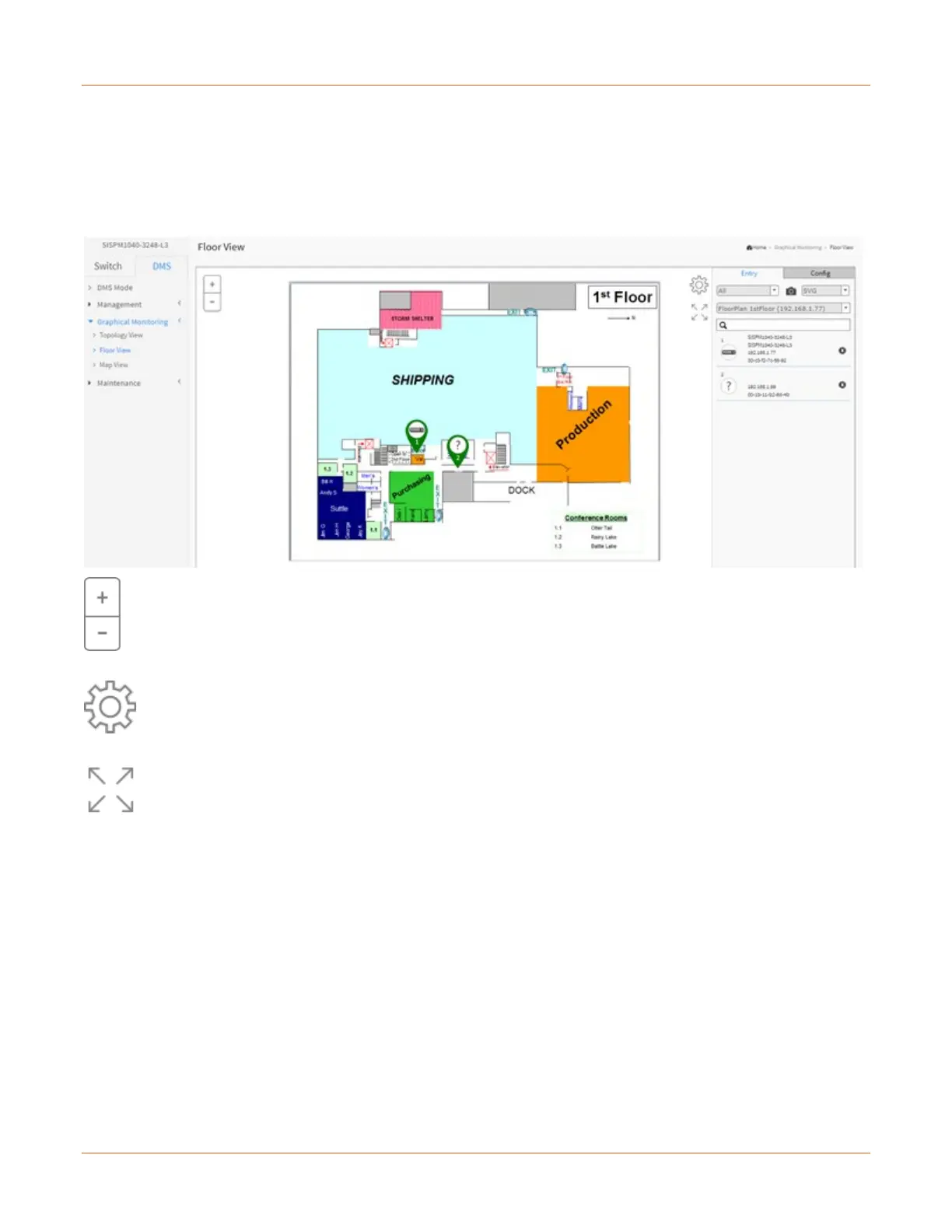

This page displays the graphical image created at DMS > Maintenance > Floor Image. Initially, no Floor View
images are displayed. Go to DMS > Maintenance > Floor Image on page 465 to upload floor images.
The Floor View lets you easily plan IP devices installation locations by dragging the uploaded floor images into
place.
Icon with plus and minus marks: Zoom in and zoom out the floor view, user can scroll up/down with mouse
to achieve the same purpose.
There is a "Setting icon" in the upper right corner. When you click the icon, it will pop-up Device, Config,
export floor view and advanced search functions for the device.
Icon with screen view type: Click it to change to Full Screen view of Floor or return to the Normal View.
