Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 91

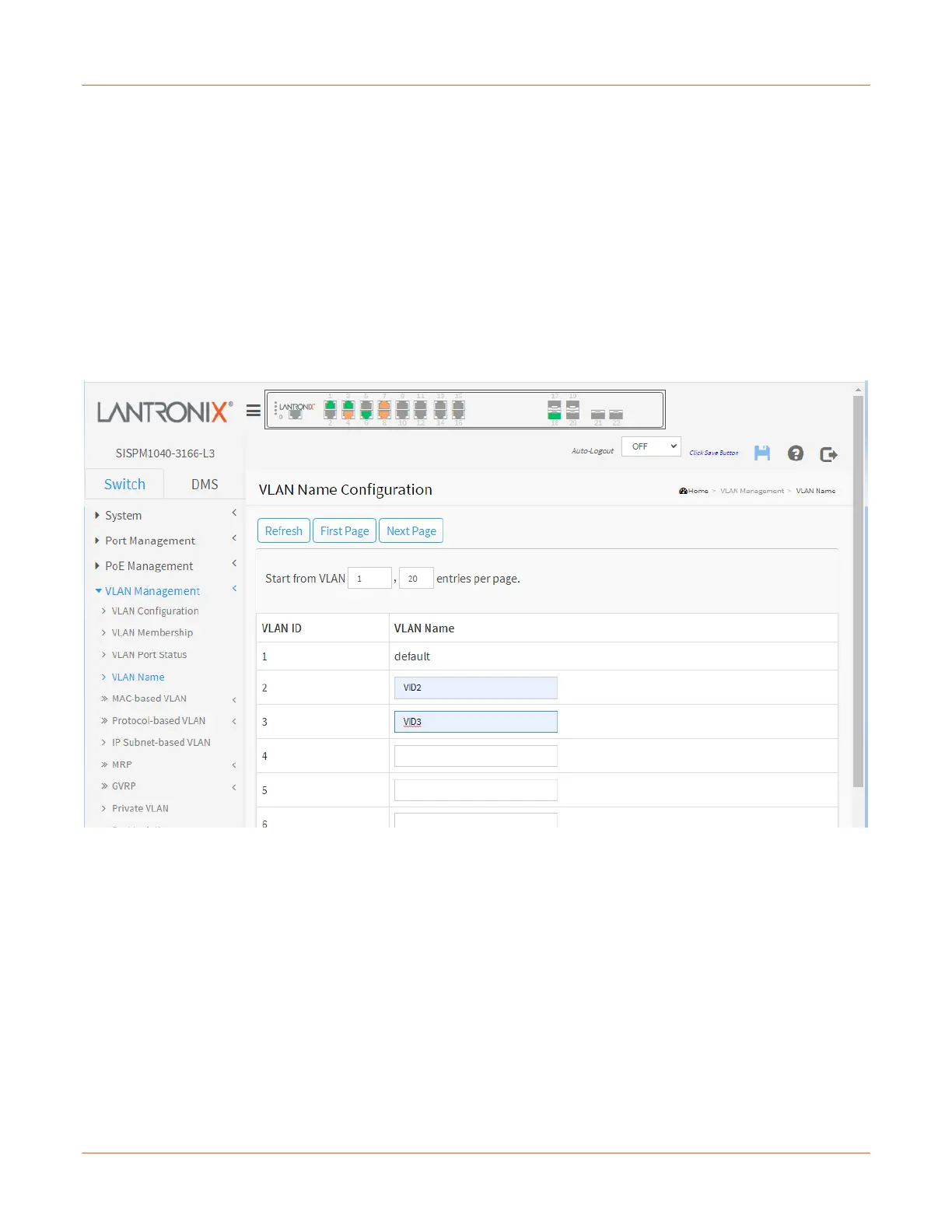

VLAN Management > VLAN Name
Entries in the VLAN Name Configuration table are shown on this page. The VLAN Name Configuration table
contains up to 4095 entries, and is sorted first by VLAN ID.
Each page shows up to 99 entries from the VLAN Name Configuration Table, default being 20, selected through
the "entries per page" input field. When first visited, the web page will show the first 20 entries from the beginning
of the VLAN Name Configuration Table.
The "VLAN" input fields let you select the starting point in the VLAN Name Configuration Table. Clicking the
Refresh button will update the displayed table starting from that or the closest next VLAN Name Configuration
Table match.
The Next Page button will use the last entry of the currently displayed table as a basis for the next lookup. When
the end is reached the text "No more entries" is shown in the displayed table. Use the First Page button to start
over.
VLAN ID: The VLAN ID.
VLAN Name: Entry field for a name for the VLAN.
Buttons
Refresh: Refreshes the displayed table starting from the input fields.
First Page: Updates the table, starting with the entry after the last entry currently displayed.
Next Page: Updates the table starting from the first entry in the table.
Apply: Click to save changes.
Reset: Click to undo any changes made locally and revert to previously saved values.
