Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 115

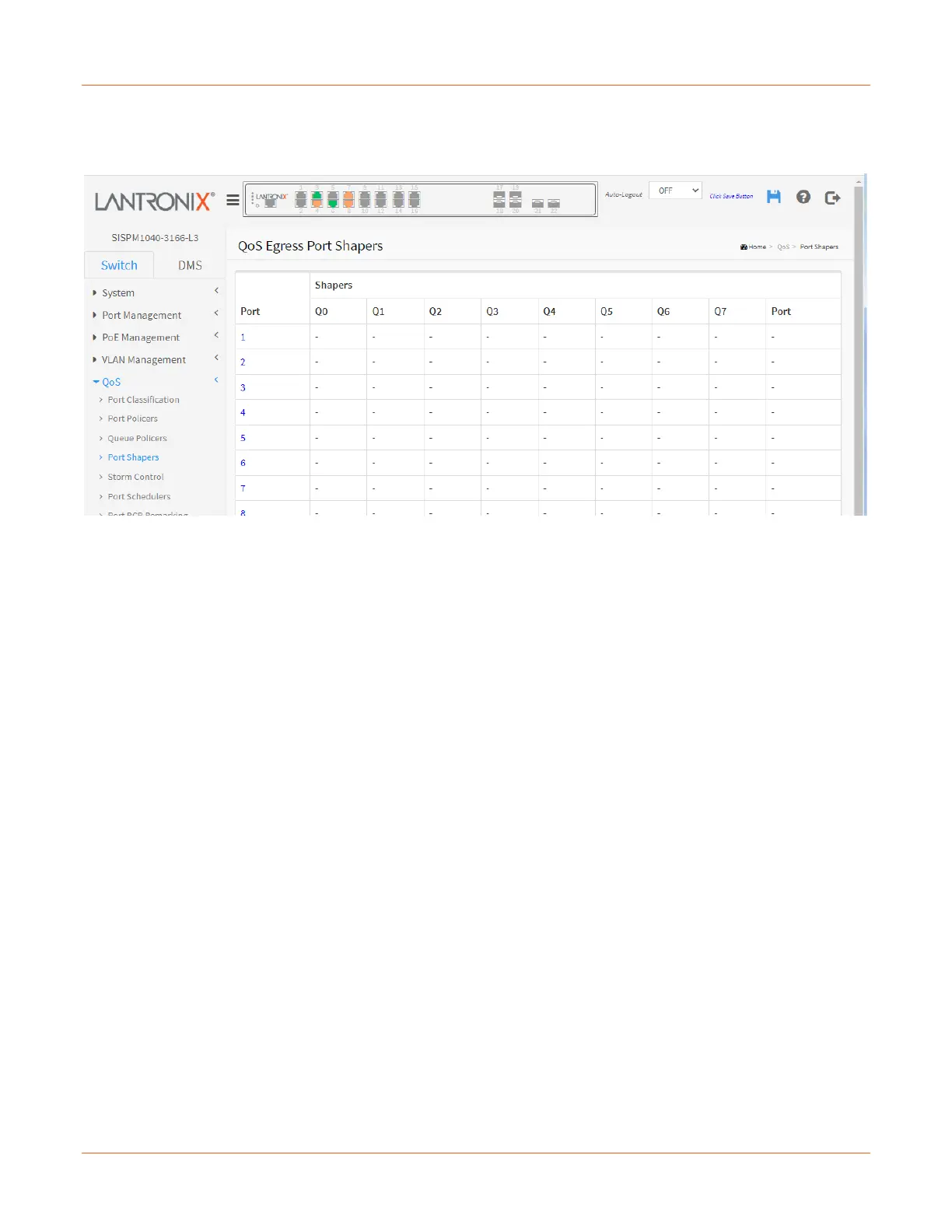

QoS > Port Shapers
This page provides an overview of QoS Egress Port Shapers for all switch ports.
Port: The logical port for the settings contained in the same row. Click on the port number in order to configure
the shapers.
Shapers – Qn: Shows disabled or actual queue shaper rate (e.g., "800 Mbps").
Shapers – Port: Shows disabled or actual port shaper rate (e.g., "800 Mbps").
Buttons
Apply : Click to save changes.
Reset : Click to undo any changes made locally and revert to previously saved values.
