OSPF > Status > General Status

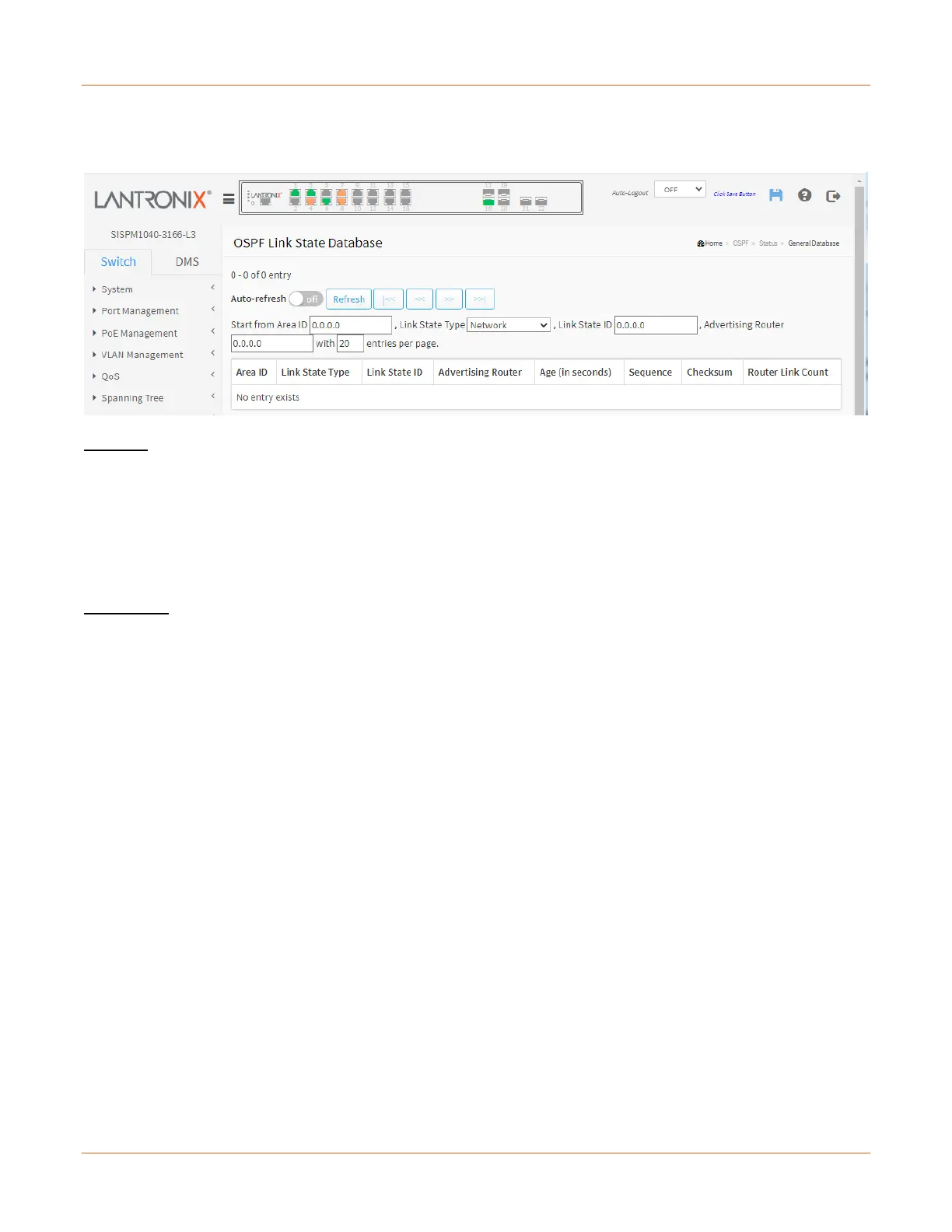

This page displays the OSPF LSA Link State Database table.
Controls: Click the Refresh button to take effect.
Start from Area ID: Enter the start from area IP address in the format 0.0.0.0.
Link State Type: At the dropdown select Router, Network, Summary, ASBR Summary, External, or NSSA
External.
Link State ID: Enter the link state ID in the format 0.0.0.0.
Advertising Router: The advertising router ID which originated the LSA.
Parameters:
Area ID: Displays the OSPF area ID of the link state advertisement. It is not required for external LSA.
Link State Type: Displays the selected link state type (Router, Network, Summary, ASBR Summary, External, or
NSSA External).
Link State ID: Displays the link state ID in the format 0.0.0.0.
Advertising Router: The advertising router ID which originated the LSA.
Age (in seconds): The time in seconds since the LSA was originated.
Sequence: The LS sequence number of the LSA.
Checksum: The checksum of the LSA contents.
Router Link Count: The link count of the LSA. The field is significant only when the link state type is 'Router Link
State' (Type 1).
Buttons
Auto-refresh : Check this box to refresh the page automatically every 3 seconds.
Refresh: Click to refresh the page immediately.
|<< : Updates the table entries, starting from the first available entry. If the first entry of the table is displayed, the
button is disabled.
<< : Updates the table entries, ending at the entry prior to the first entry currently displayed. If the first entry of the
table is displayed, the button is disabled.
>> : Updates the table entries, starting from the entry next to the last entry currently displayed. If the last entry of
the table is displayed, the button is disabled.
