Port Management > Link OAM > Event Settings

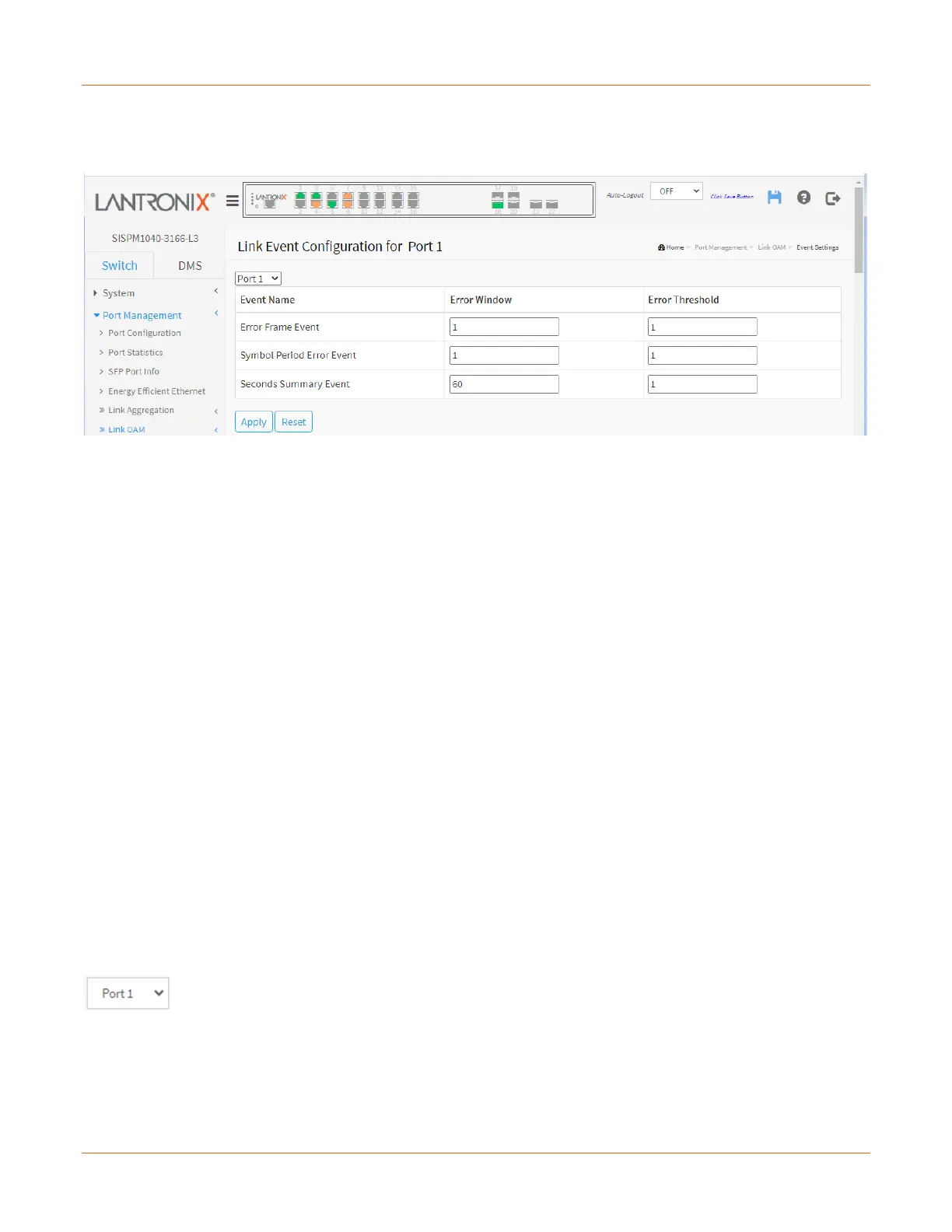

This page lets you view and set current Link OAM Link Event parameters.
Port: The switch port number.
Event Name: Name of the Link Event which is being configured.
Error Window: Represents the window period in the order of 1 sec for the observation of various link events.
Error Threshold: Represents the threshold value for the window period for the appropriate Link event so as to
notify the peer of this error.
Error Frame Event: The Errored Frame Event counts the number of errored frames detected during the specified
period. The period is specified by a time interval ( Window in order of 1 sec). This event is generated if the errored
frame count is equal to or greater than the specified threshold for that period (Period Threshold). Errored frames
are frames that had transmission errors as detected at the Media Access Control sublayer. Error Window for
'Error Frame Event' must be an integer value between 1-60 and its default value is '1'. Whereas Error Threshold
must be between 0-4294967295 and its default value is '1'.
Symbol Period Error Event: The Errored Symbol Period Event counts the number of symbol errors that occurred
during the specified period. The period is specified by the number of symbols that can be received in a time
interval on the underlying physical layer. This event is generated if the symbol error count is equal to or greater
than the specified threshold for that period. Error Window for 'Symbol Period Error Event' must be an integer
value between 1-60 and its default value is '1'. Whereas Error Threshold must be between 0-4294967295 and its
default value is '1'.
Seconds Summary Event: The Errored Frame Seconds Summary Event TLV counts the number of errored
frame seconds that occurred during the specified period. The period is specified by a time interval. This event is
generated if the number of errored frame seconds is equal to or greater than the specified threshold for that
period. An errored frame second is a one second interval wherein at least one frame error was detected. Errored
frames are frames that had transmission errors as detected at the Media Access Control sublayer.
Error Window for 'Seconds Summary Event' must be an integer value between 10-900 and its default value is '60'.
Error Threshold must be between 0-65535 and its default value is '1'.
Buttons
: The port select box determines which port is affected by clicking the buttons.
Apply: Click to save changes.
Reset: Click to undo any changes made locally and revert to previously saved values.
