OSPFv3 > Detail Database > External

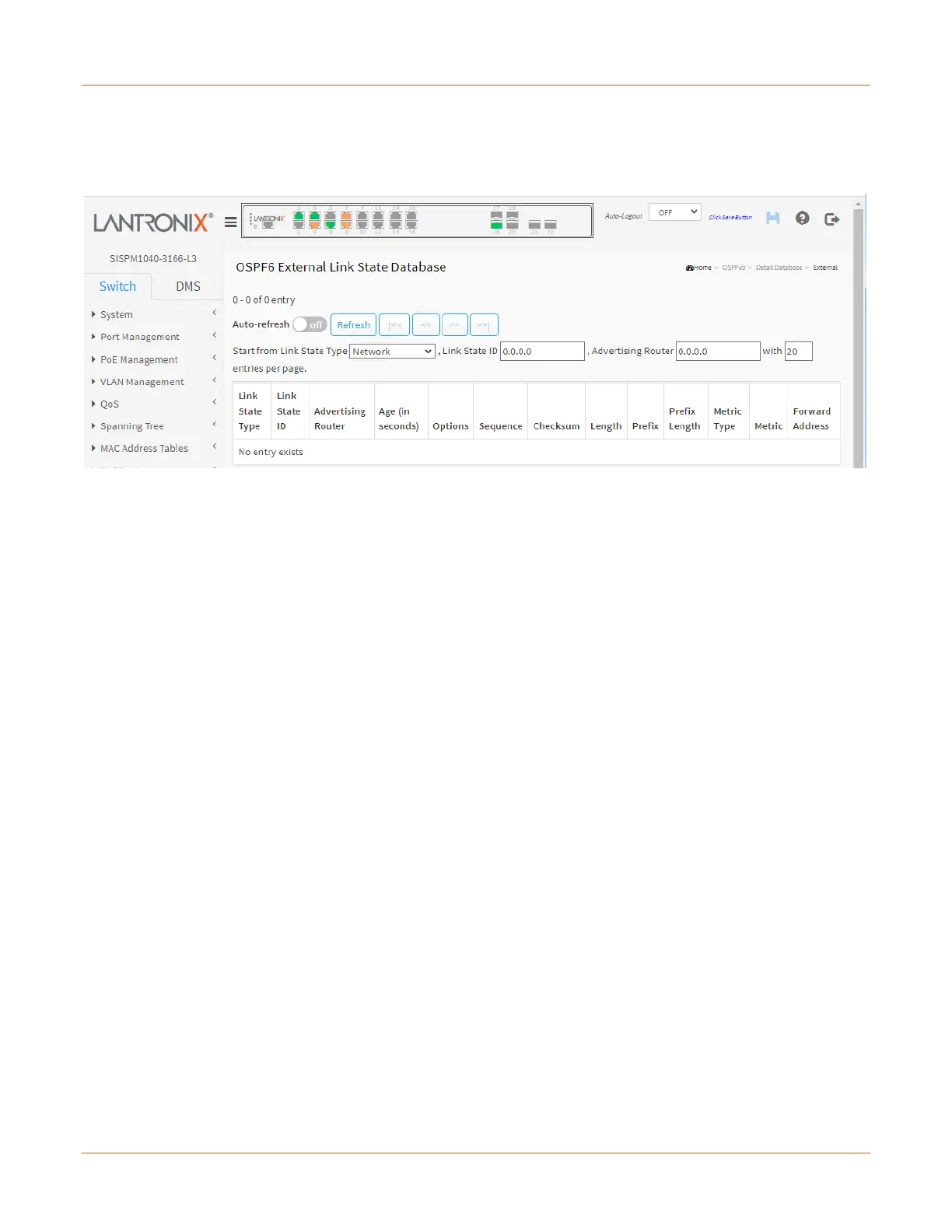

This page displays the OSPF6 LSA External link state database information table. Set the Start from Link State
Type, Link State ID, Advertising Router, and entries per page controls.
Link State Type: The type of the link state advertisement.
Link State ID: The OSPF6 link state ID. It identifies the piece of the routing domain that is being described by the
LSA.
Advertising Router: The advertising router ID which originated the LSA.
Age (in seconds): The time in seconds since the LSA was originated.
Options: The OSPF6 option field, present in OSPF6 hello packets, which enables OSPF6 routers to support (or
not support) optional capabilities, and to communicate their capability level to other OSPF6 routers.
Sequence: The LS sequence number of the LSA.
Checksum: The checksum of the LSA contents.
Length: The Length in bytes of the LSA.
Prefix: IPv6 network address.
Prefix Length: IPv6 network mask length.
Metric Type: The External type of the LSA. The field is significant only when the link state type is 'External/NSSA
External Link State' (Type 5, 7).
Metric: User specified metric for this summary route. The field is significant only when the link state type is
'External/NSSA External Link State' (Type 5, 7).
Forward Address: The IP address of forward address. The field is significant only when the link state type is
'External/NSSA External Link State' (Type 5, 7).
Buttons
Auto-refresh: Check this box to refresh the page automatically every 3 seconds.
Refresh: Click to refresh the page immediately.
|<< : Updates the table entries, starting from the first available entry. If the first entry of the table is displayed, the
button is disabled.
