ERPS > Status

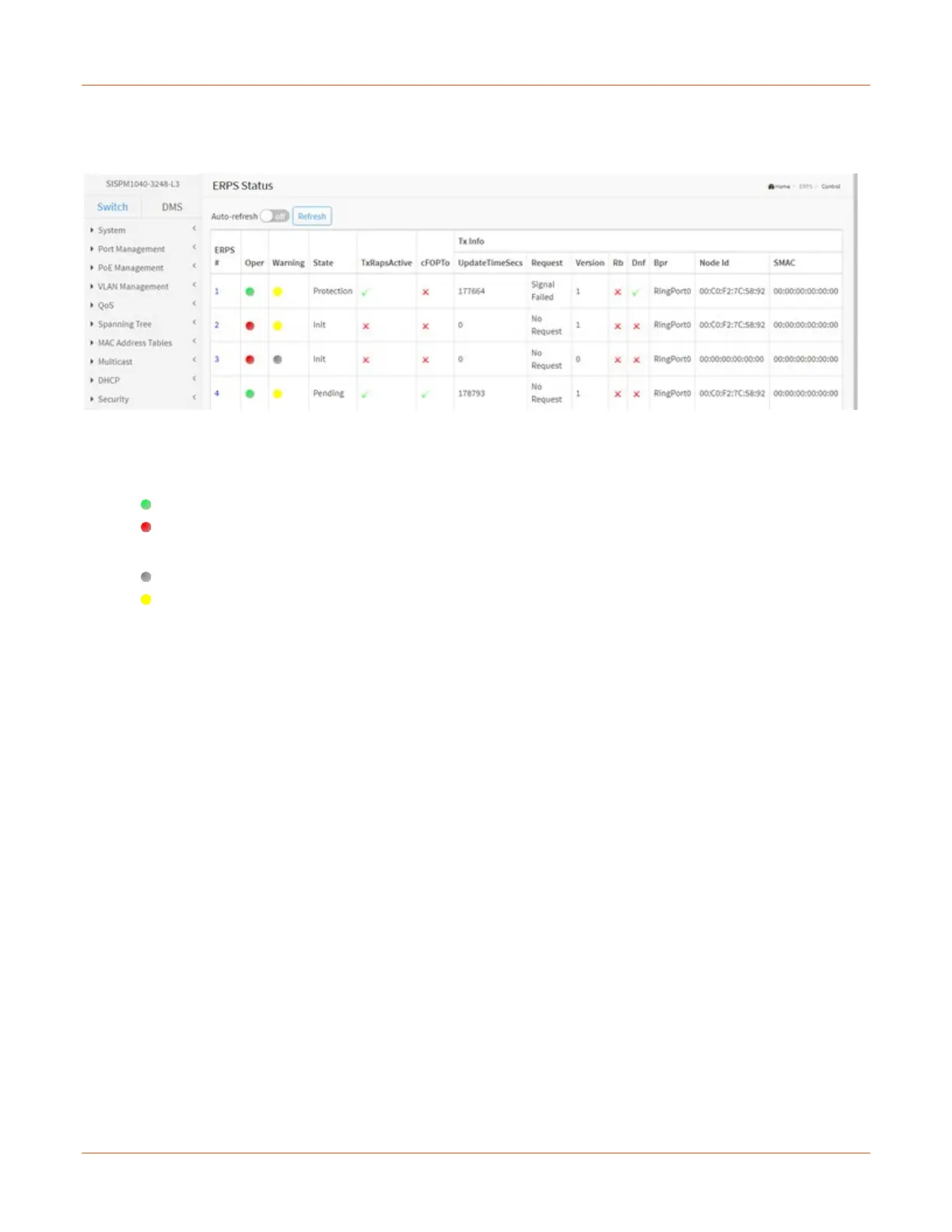

This page shows the current status of the ERPS instances.
ERPS # : The ID of the ERPS. Click on a link to get to the ERPS Detailed Status for an instance page, you can
reset counters and issue commands. See below.
Oper: The operational state of ERPS instance.
: Active.
: Disabled or Internal error.
Warning: Operational warnings of ERPS instance.
: No warnings.
: There are warnings, use tooltip to see.
State: Specifies protection/node state of ERPS (e.g., Init, Protection, or Warning).
TxRapsActive: Specifies whether to currently transmit R-APS PDUs on ring ports (a green checkmark or a red
x).
cFOPTo: Failure of Protocol - R-APS Rx Time Out.
UpdateTimeSecs: Time in seconds since boot that this structure was last updated.
Request: Request/state according to G.8032, table 10-3 (e.g., Signal Failed or No Request).
Version: Version of received/used R-APS Protocol. 0 means v1, 1 means v2, etc.
Rb: The RB (RPL blocked bit) of R-APS info. See Figure 10-3 of G.8032.
Dnf: The DNF (Do Not Flush) bit of R-APS info. See Figure 10-3 of G.8032.
Bpr: BPR (Blocked Port Reference) of R-APS info. See Figure 10-3 of G.8032.
Node Id: Node ID of this request.
SMAC: The Source MAC address used in the request/state.
Buttons
Auto-refresh: Check this box to refresh the page automatically every 3 seconds.
Refresh: Click to manually refresh the page immediately.
To Next Page
