Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 276
SNMP > Statistics > Statistics

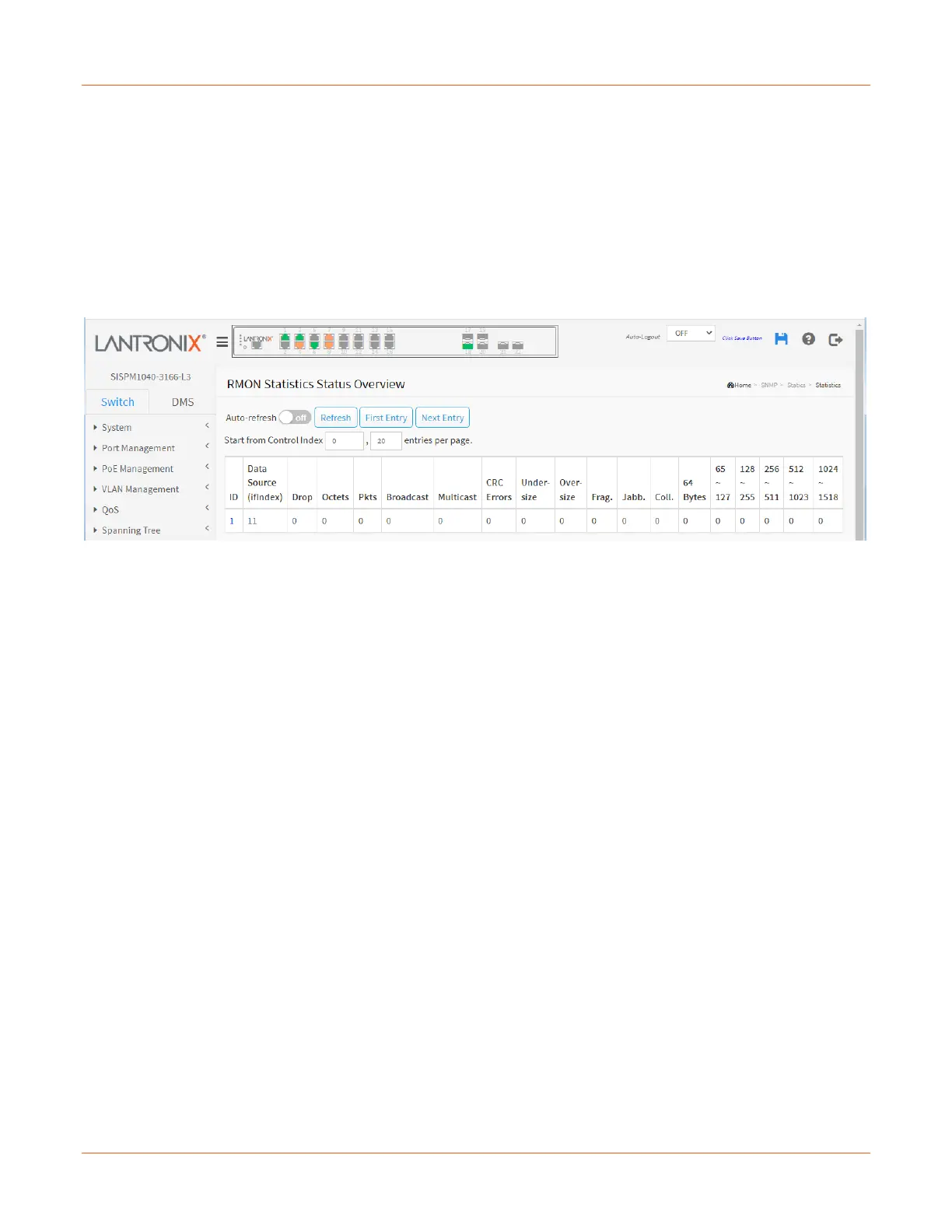

This page provides an overview of RMON Status entries. Each page shows up to 99 entries from the Statistics
table, default being 20, selected through the "entries per page" input field. When first visited, the web page will
show the first 20 entries from the beginning of the Statistics table. The first displayed will be the one with the
lowest ID found in the Statistics table.
The "Start from Control Index" lets you select the starting point in the Statistics table. Clicking the Refresh button
will update the displayed table starting from that or the next closest Statistics table match.
Click the Next Entry button to use the last entry of the currently displayed entry as a basis for the next lookup.
When the end is reached the text "No more entries" displays in the table. Use the First Entry button to start over.
ID: Indicates the index of Statistics entry. You can click a linked ID number to display the instance’s Detailed
Statistics page (see below).
Data Source (ifIndex): The port ID which you want to be monitored.
Drop: The total number of events in which packets were dropped by the probe due to lack of resources.
Octets: The total number of octets of data (including those in bad packets) received on the network.
Pkts: The total number of packets (including bad packets, broadcast packets, and multicast packets) received.
Broadcast: The total number of good packets received that were directed to the broadcast address.
Multicast: The total number of good packets received that were directed to a multicast address.
CRC Errors: The total number of packets received that had a length (excluding framing bits but including FCS
octets) of between 64 and 1518 octets, inclusive, but had either a bad Frame Check Sequence (FCS) with an
integral number of octets (FCS Error) or a bad FCS with a non-integral number of octets (Alignment Error).
Undersize: The total number of packets received that were less than 64 octets.
Oversize: The total number of packets received that were longer than 1518 octets.
Frag.: The number of frames which size is less than 64 octets received with invalid CRC.
Jabb.: The number of frames which size is larger than 64 octets received with invalid CRC.
Coll.: The best estimate of the total number of collisions on this Ethernet segment.
64: The total number of packets (including bad packets) received that were 64 octets in length.
65~127: The total number of packets (including bad packets) received that were between 65 to 127 octets in
length.
128~255: The total number of packets (including bad packets) received that were between 128 to 255 octets in
length.
256~511: The total number of packets (including bad packets) received that were between 256 to 511 octets in
length.
