Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 43

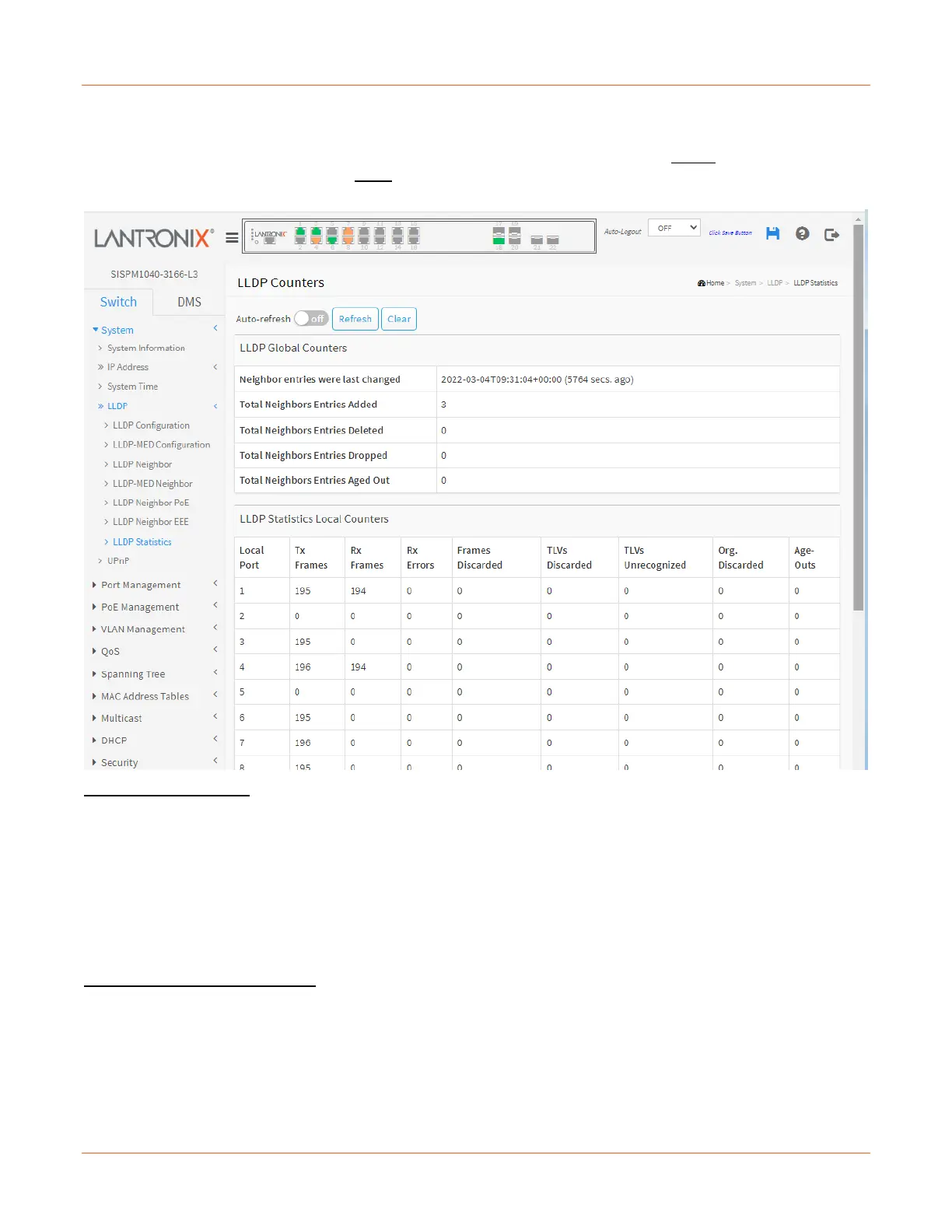

System > LLDP > LLDP Statistics
This page provides an overview of all LLDP traffic. Two types of counters are shown. Global counters are
counters that refer to the whole switch; Local counters refer to per interface counters for the currently selected
switch.
LLDP Global Counters
Neighbor entries were last changed: Shows the time when the last entry was last deleted or added. It also
shows the time elapsed since the last change was detected.
Total Neighbors Entries Added: Shows the number of new entries added since switch reboot.
Total Neighbors Entries Deleted: Shows the number of new entries deleted since switch reboot.
Total Neighbors Entries Dropped: Shows the number of LLDP frames dropped due to the entry table being full.
Total Neighbors Entries Aged Out: Shows the number of entries deleted due to Time-To-Live expiring.
LLDP Statistics Local Counters
Local Port: The interface on which LLDP frames are received or transmitted.
Tx Frames: The number of LLDP frames transmitted on the interface.
Rx Frames: The number of LLDP frames received on the interface.
Rx Errors: The number of received LLDP frames containing some kind of error.
