MVR SFM Information

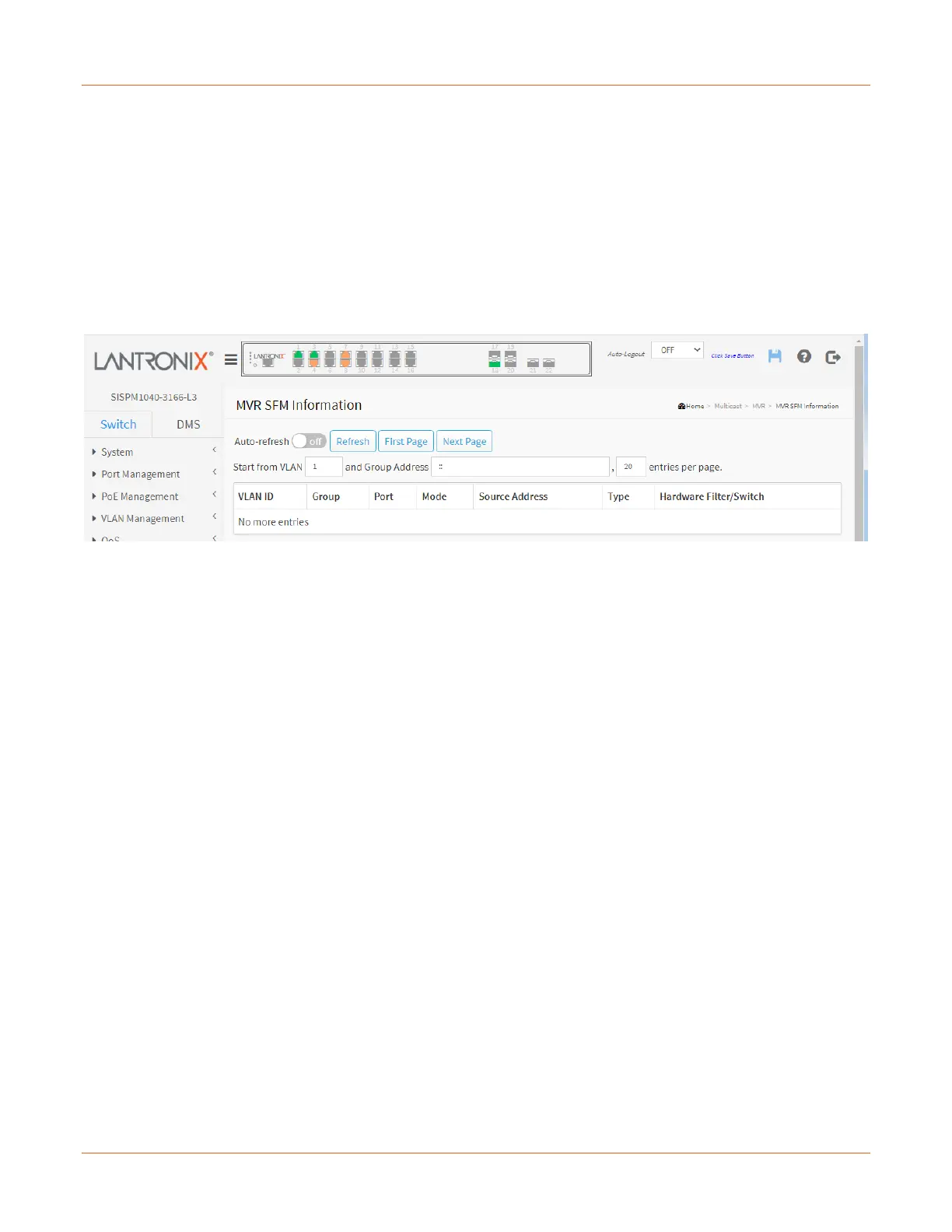

Entries in the MVR SFM Information Table are shown on this page. The MVR SFM (Source-Filtered Multicast)
Information Table also contains the SSM (Source-Specific Multicast) information. This table is sorted first by
VLAN ID, then by group, and then by Port. Different source addresses belong to the same group are treated as
single entry.
Each page shows up to 99 entries from the MVR SFM Information Table, default being 20, selected through the
"entries per page" input field. When first visited, the web page will show the first 20 entries from the beginning of
the MVR SFM Information Table.
The "Start from VLAN", and "Group Address" input fields let you select the starting point in the MVR SFM
Information table.
VLAN ID: VLAN ID of the group.
Group: Group address of the group displayed.
Port: Switch port number.
Mode: Indicates the filtering mode maintained per (VLAN ID, port number, Group Address) basis. It can be either
Include or Exclude.
Source Address: The IP Address of the source. Currently, the maximum number of IP source address for
filtering (per group) is 8. When there is no source filtering address, the text "None" is shown in the Source
Address field.
Type: Indicates the Type configured. It can be either Allow or Deny.
Hardware Filter/Switch: Indicates whether data plane destined to the specific group address from the source
IPv4/IPv6 address can or cannot be handled by the chip.
Buttons
Auto-refresh : Click to automatically refresh the webpage every 3 seconds.
Refresh: Refreshes the displayed table starting from the input fields.
First Page: Updates the table starting from the first entry in the MVR Channels (Groups) Information table.
Next Page: Updates the table, starting with the entry after the last entry currently displayed.
