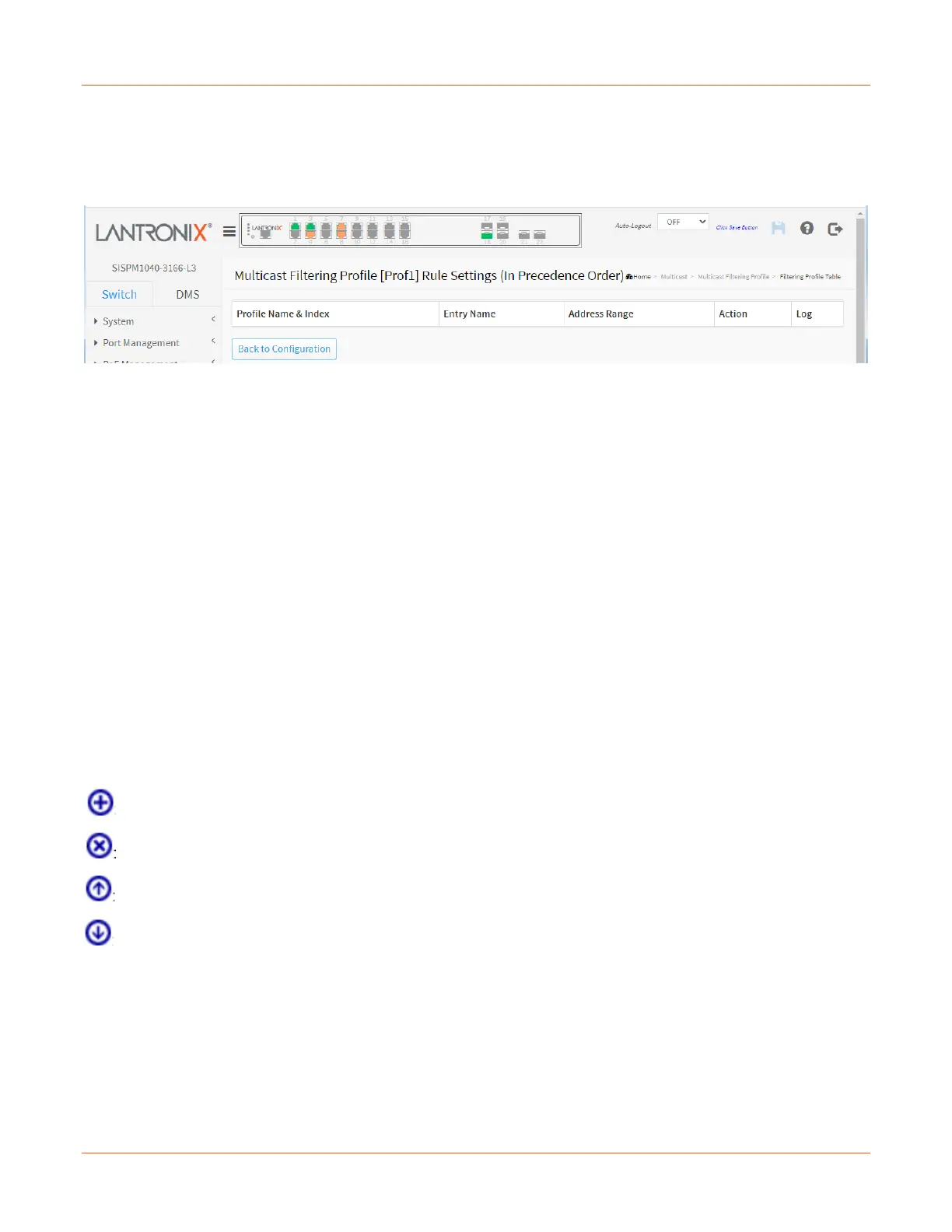

Rule > Preview page
This page provides the filtering rule settings for a specific IPMC profile. It displays the configured rule entries in
precedence order. First rule entry has highest priority in lookup, while the last rule entry has lowest priority in
lookup. Note: the profile performs deny action for all groups if there is no permit entry is included in the profile.
Profile Name: The name of the designated profile to be associated. This field is not editable.
Entry Name: The name used in specifying the address range used for this rule. Only the existing profile address
entries will be chosen in the selected box. This field is not allowed to be selected as none ("-") while the Rule
Settings Table is committed.
Address Range: The corresponding address range of the selected profile entry. This field is not editable and will
be adjusted automatically according to the selected profile entry.
Action: Indicates the learning action upon receiving the Join/Report frame that has the group address matches
the address range of the rule.
Permit: Group address matches the range specified in the rule will be learned.
Deny: Group address matches the range specified in the rule will be dropped.
Log: Indicates the logging preference upon receiving the Join/Report frame that has the group address matches
the address range of the rule.
Enable: Corresponding information of the group address, that matches the range specified in the rule, will
be logged.
Disable: Corresponding information of the group address, that matches the range specified in the rule,
will not be logged.
Rule Management Buttons
You can manage rules and the corresponding precedence order by using the following buttons:
Insert: Insert a new rule before the current entry of rule.
Delete: Delete the current entry of rule.
Up: Moves the current entry of rule up in the list.
Down: Moves the current entry of rule down in the list.
Buttons
Add Last Rule: Click to add a new rule in the end of the specific profile's rule list. Specify the address entry and
configure the new entry. Click "Commit" when done.
Commit: Click to commit rule changes for the designated profile.
Reset: Click to undo any changes made locally and revert to previously saved values.
Back to Configuration: Go back to previous configuration page.
