Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 140

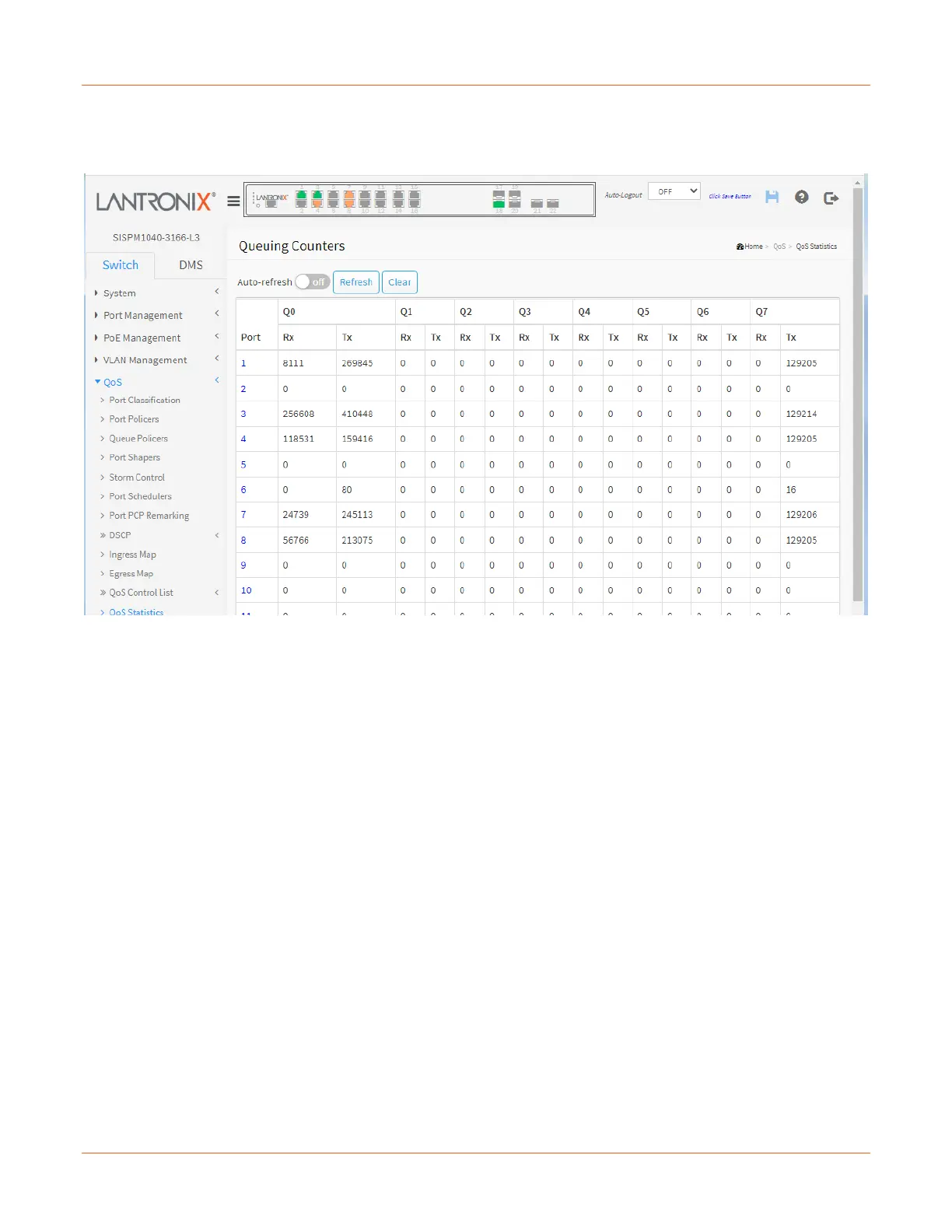

QoS Statistics
This page provides statistics for the different queues for all switch ports.
Port: The logical port for the settings contained in each row. Click the linked port number to display its Detailed
Port Statistics page (see below).
Qn: There are 8 QoS queues per port. Q0 is the lowest priority queue.
Rx/Tx: The number of received and transmitted packets per queue.
Buttons
Auto-refresh: Check this box to refresh the page automatically every 3 seconds.
Refresh: Click to refresh the page immediately.
Clear: Clears the counters for all ports.
