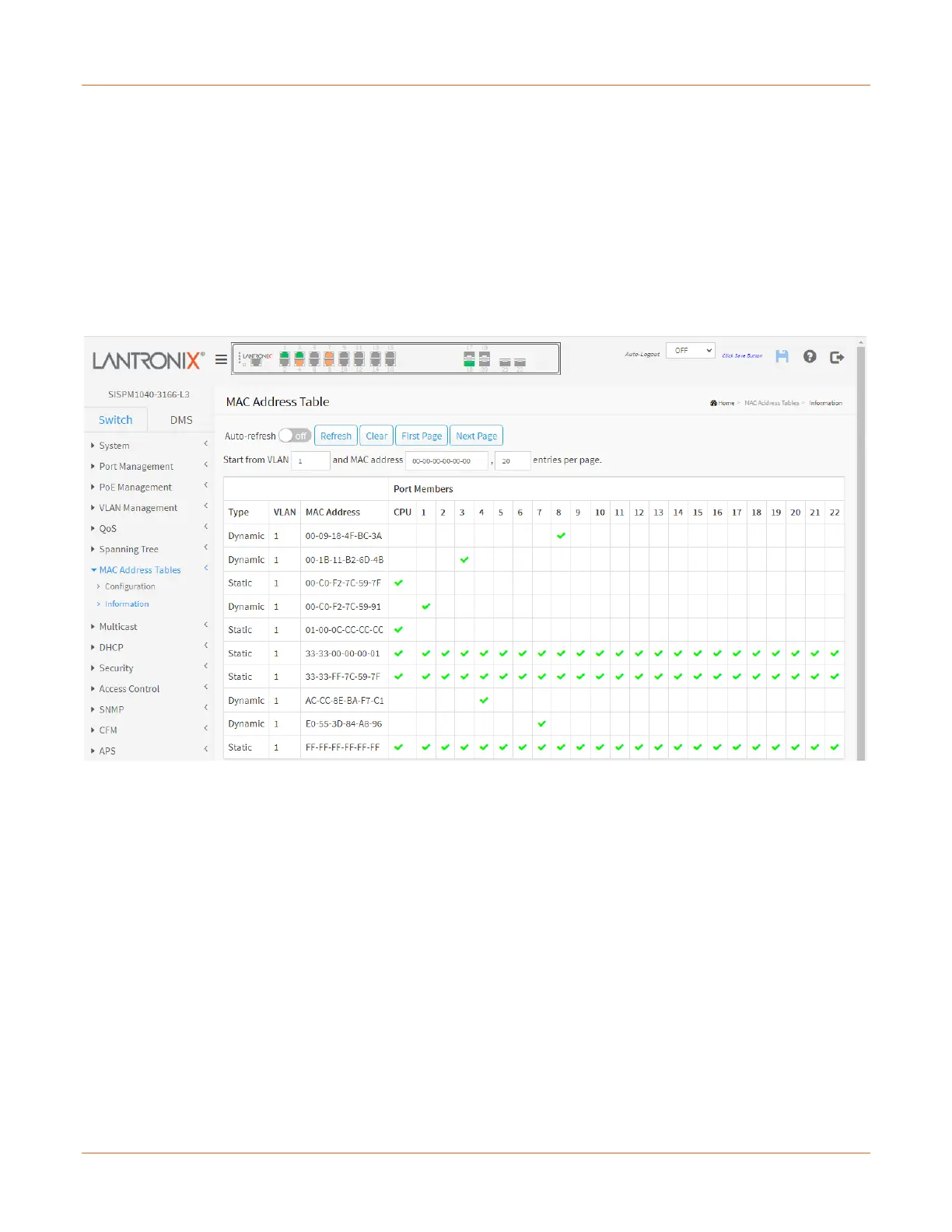

MAC Address Table Status
Entries in the MAC Table are shown on this page. The MAC Table contains up to 8192 entries, and is sorted first
by VLAN ID, then by MAC address.
Each page shows up to 999 entries from the MAC table, default being 20, selected through the "entries per page"
input field. When first visited, the web page will show the first 20 entries from the beginning of the MAC Table.
The first displayed will be the one with the lowest VLAN ID and the lowest MAC address found in the MAC Table.
The "Start from VLAN" and " MAC address" input fields let you select the starting point in the MAC Table. Clicking
the Refresh button will update the displayed table starting from that or the closest next MAC Table match. In
addition, the two input fields will - upon a Refresh button click - assume the value of the first displayed entry,
allowing for continuous refresh with the same start address.
Type: Indicates whether the entry is a static or a dynamic entry.
VLAN: The VLAN ID of the entry.
MAC address: The MAC address of the entry.
Port Members: The ports that are members of the entry.
Buttons
Auto-refresh : Automatic refresh occurs every 3 seconds.
Refresh: Refreshes the displayed table starting from the "Start from MAC address" and "VLAN" input fields.
Clear: Flushes all dynamic entries.
First Page: Updates the table starting from the first entry in the MAC Table (i.e., the entry with the lowest VLAN
ID and MAC address).
Last Page: Updates the table, starting with the entry after the last entry currently displayed.
