Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 154

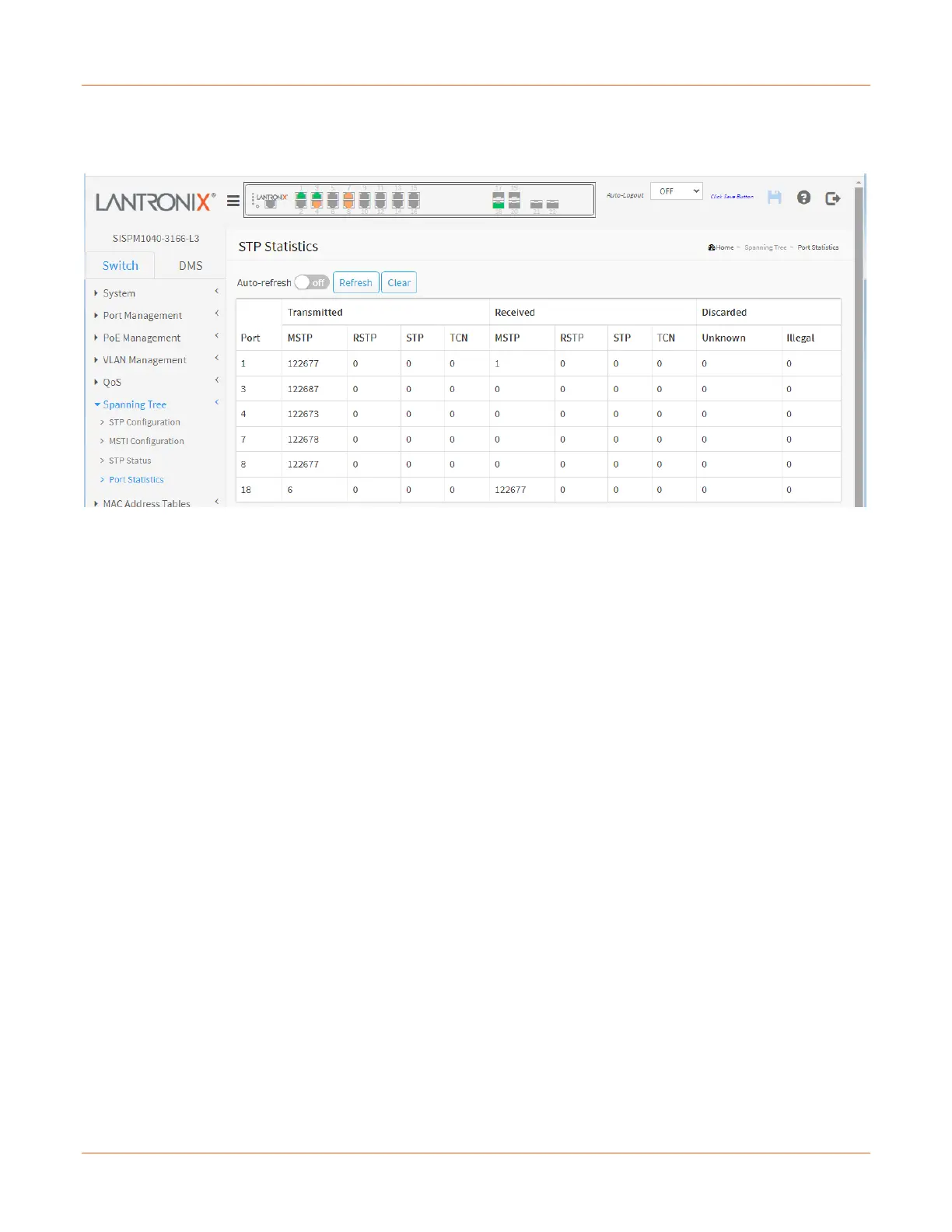

Port Statistics
This page displays the STP port statistics counters of bridge ports in the switch.
Port: The switch port number of the logical STP port.
MSTP: The number of MSTP BPDU's received/transmitted on the port.
RSTP: The number of RSTP BPDU's received/transmitted on the port.
STP: The number of legacy STP Configuration BPDU's received/transmitted on the port.
TCN: The number of (legacy) Topology Change Notification BPDU's received/transmitted on the port.
Discarded Unknown: The number of unknown Spanning Tree BPDU's received (and discarded) on the port.
Discarded Illegal: The number of illegal Spanning Tree BPDU's received (and discarded) on the port.
Buttons
Auto-refresh: Check this box to refresh the page automatically every 3 seconds.
Refresh: Click to refresh the page immediately.
Clear: Click to reset the counters.
