Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 36

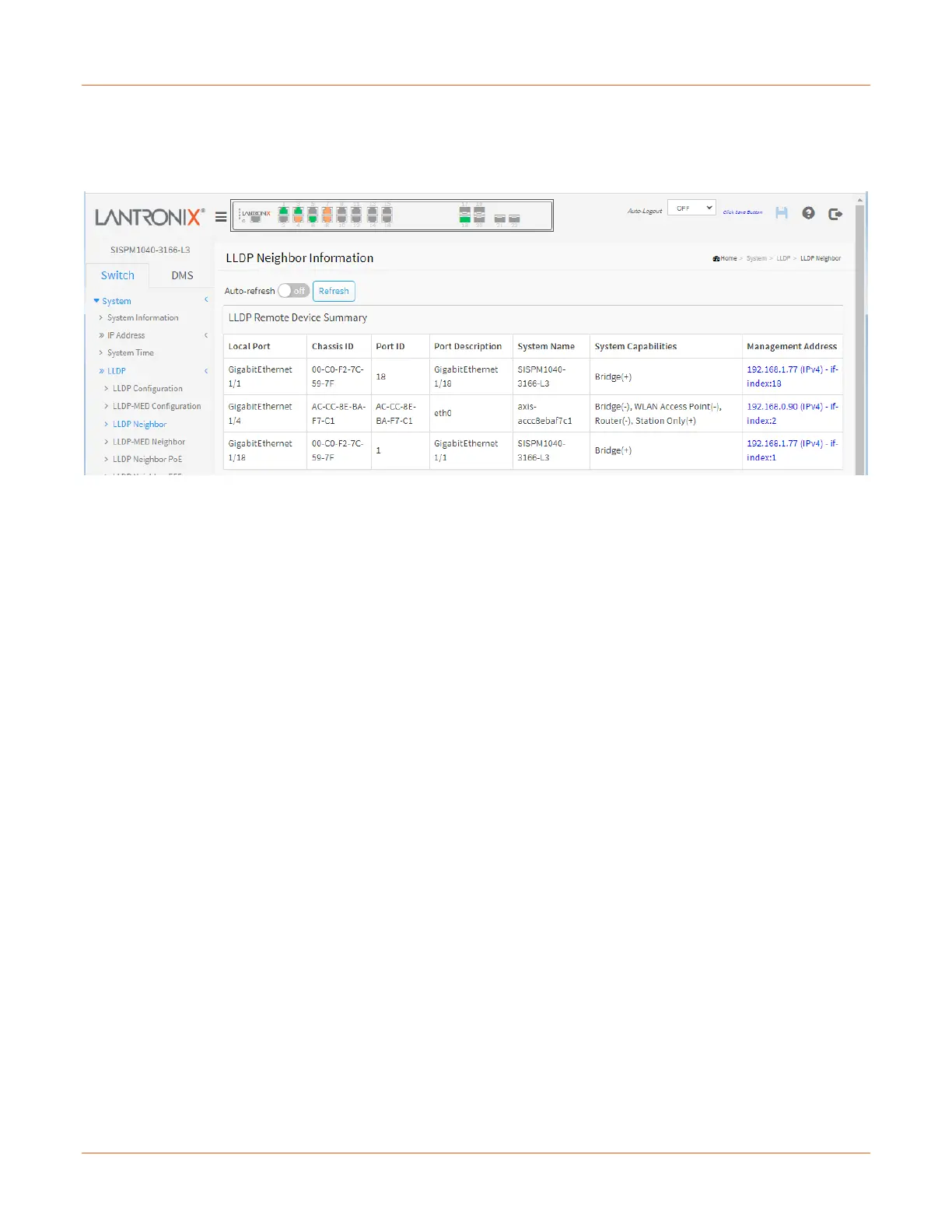

System > LLDP > LLDP Neighbor
This page provides a status overview for all LLDP neighbors. The displayed table contains a row for each
interface on which an LLDP neighbor is detected.
Local Port: The interface on which the LLDP frame was received.
Chassis ID: The identification of the neighbor's LLDP frames.
Port ID: The identification of the neighbor port.
Port Description: The port description advertised by the neighbor unit.
System Name: The name advertised by the neighbor unit.
System Capabilities: Describes the neighbor unit's capabilities. The possible capabilities are 1. Other,
2. Repeater, 3. Bridge, 4. WLAN Access Point, 5. Router, 6. Telephone, 7. DOCSIS cable device, 8. Station only,
and 9. Reserved.
When a capability is enabled, the capability is followed by (+). If the capability is disabled, the capability is
followed by (-).
Management Address: Management Address is the neighbor unit's address that is used for higher layer entities
to assist discovery by the network management. For example, this could display a link to the LLDP neighbor's IP
address.
Buttons
Auto-refresh: Check this box to refresh the page automatically every 3 seconds.
Refresh: Click to refresh the page.
